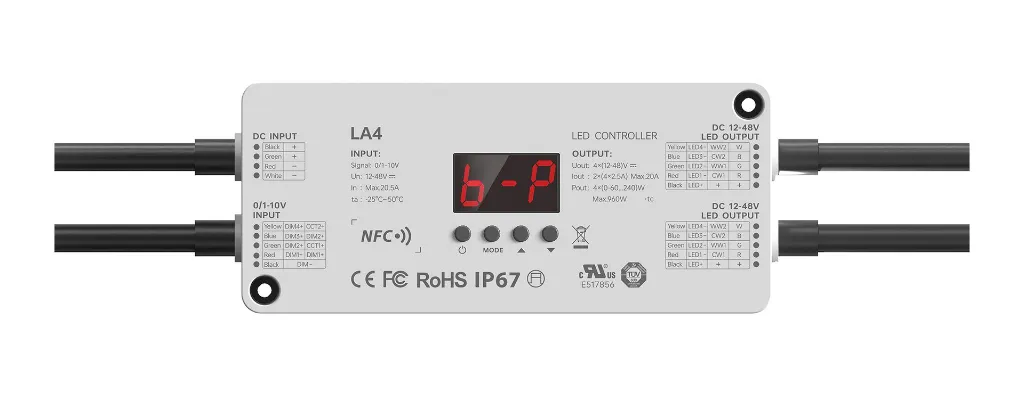

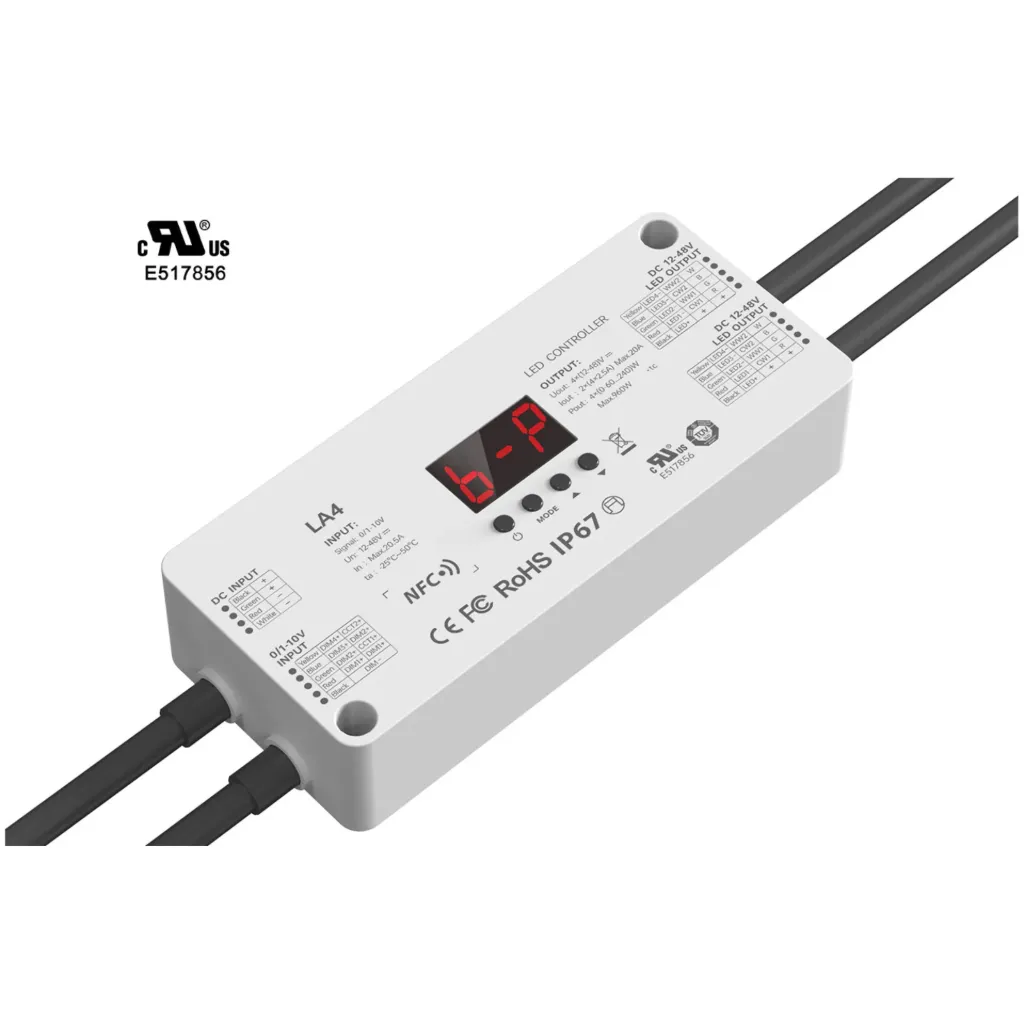

LTECH CV 0/1-10V 4CH NFC IP67 - LA4


Waterproof LED Controller
A constant-voltage LED controller designed for precise control using standard 0/1-10V dimming signals. It features four signal input channels and four PWM output channels, delivering up to 20A maximum output current and a total power of 960W. The LA4 supports smooth dimming, tunable white, and full RGB/RGBW control, with basic operation via the onboard digital display and advanced settings configured through the NFC Lighting app. With an IP67 waterproof rating, it is suitable for reliable indoor and outdoor lighting applications.

€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Current load/ ch
  • Curent load max
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature

Internal Reference: 2264121
HS Code: 85044031

General
Input Voltage Domain DC
Channels 4
Control 0-10V
Output Power Range 960 W
Input Voltage 12-48 V
Output Voltage 12-48 V
Current load/ ch 2.5A
Curent load max 20A
Operating
IP Rating IP67
Working Temperature -20°C to 50°C
Physical
Weight 670g
Dimensions L164xW70xH36mm
Package Size L230xW95xH47(mm)
  • LA4 User Manual.pdf
