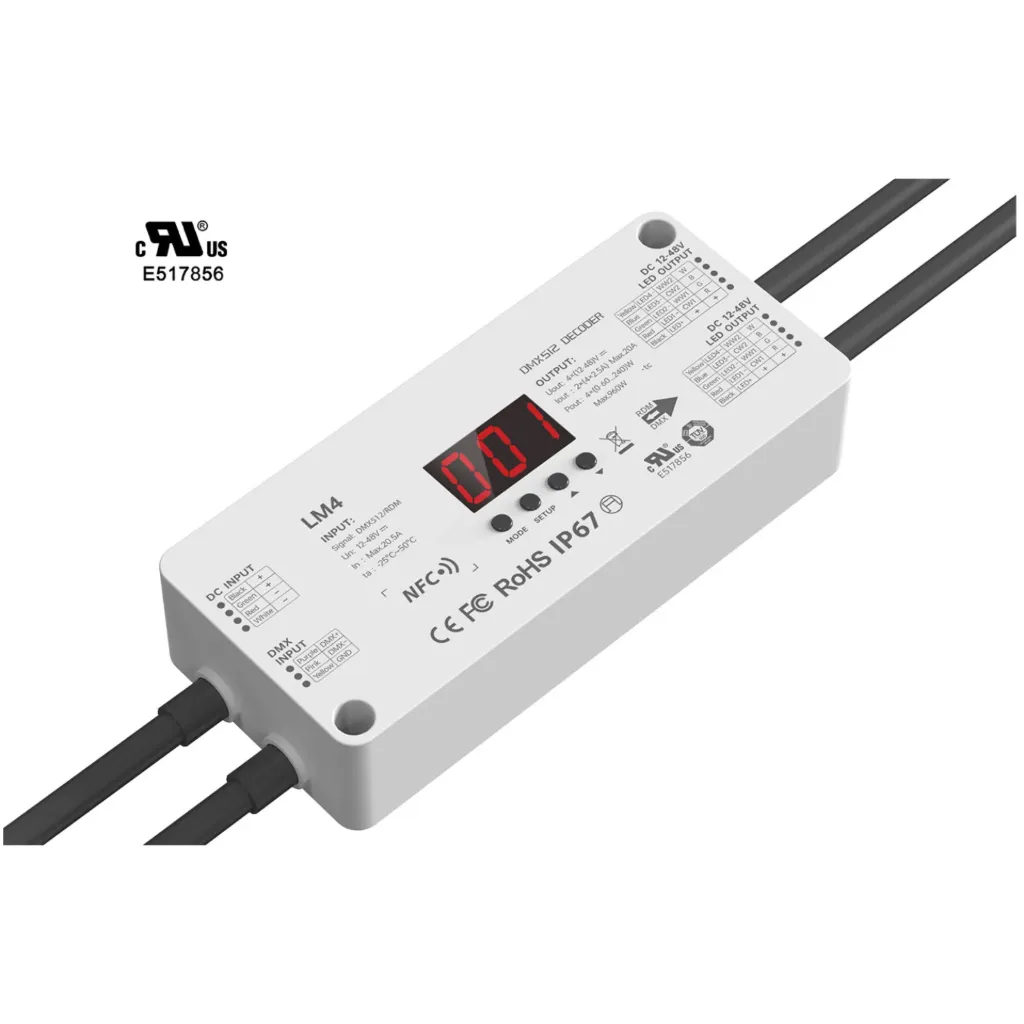

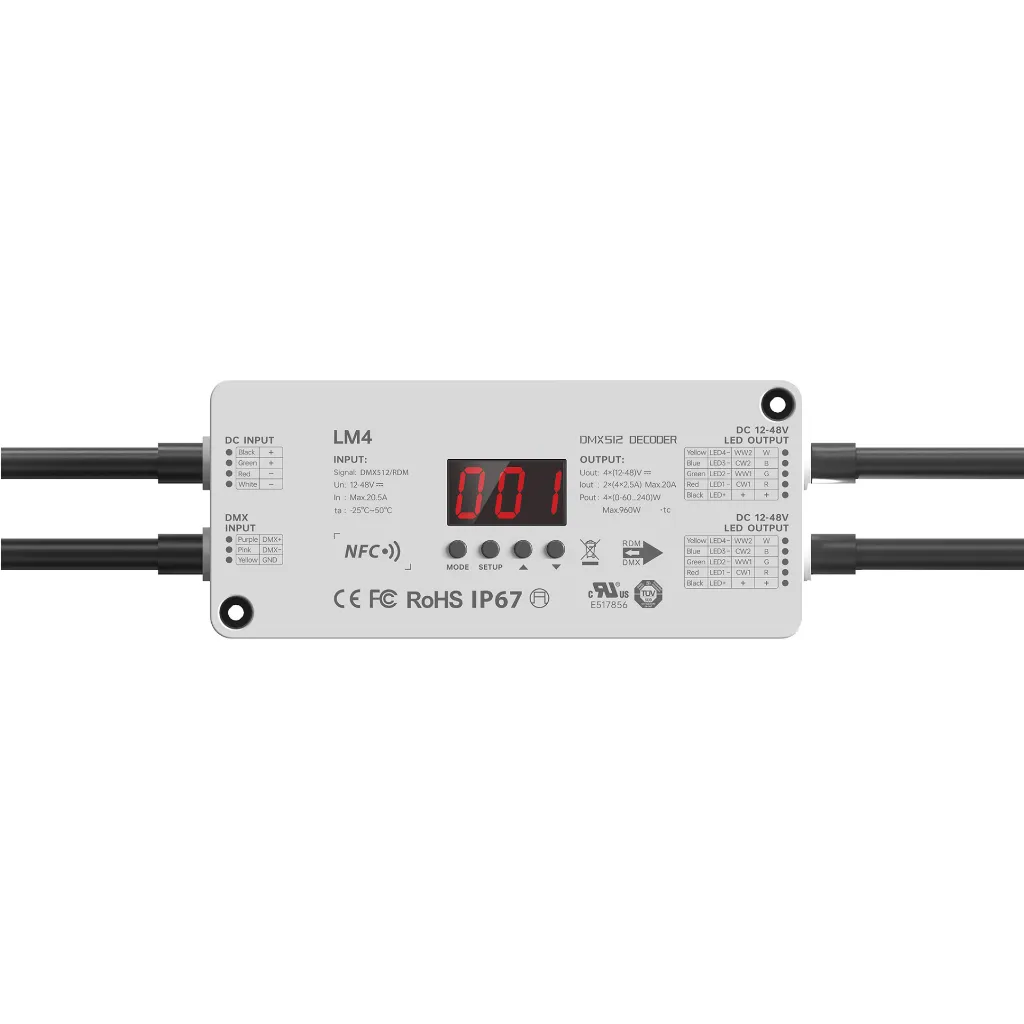

The LM4 is a high-performance constant-voltage LED controller supporting standard DMX and RDM protocols, with four output channels delivering up to 20A and a total power of 960W for stable, demanding lighting applications. It offers smooth dimming, tunable white, and full RGB/RGBW control, operating in both DMX decoder and master modes-the decoder mode lets you adjust DMX address, resolution, PWM frequency, and fade settings, while the master mode includes 33 built-in effects with adjustable speed and brightness. Configuration is available via the NFC Lighting app, RDM-WIFI app, or onboard buttons. With an IP67 waterproof rating, the LM4 is reliable for both indoor and outdoor use, even in humid conditions.
- Input Voltage: 12-48V
- Input Current: Max. 20.5A
- Output Voltage: 4 x (12-48)V
- Operating Temperature: -25°C - 50°C
- Product Dimensions: L164 x W70 x H36 (mm)
- Weight: 670g
