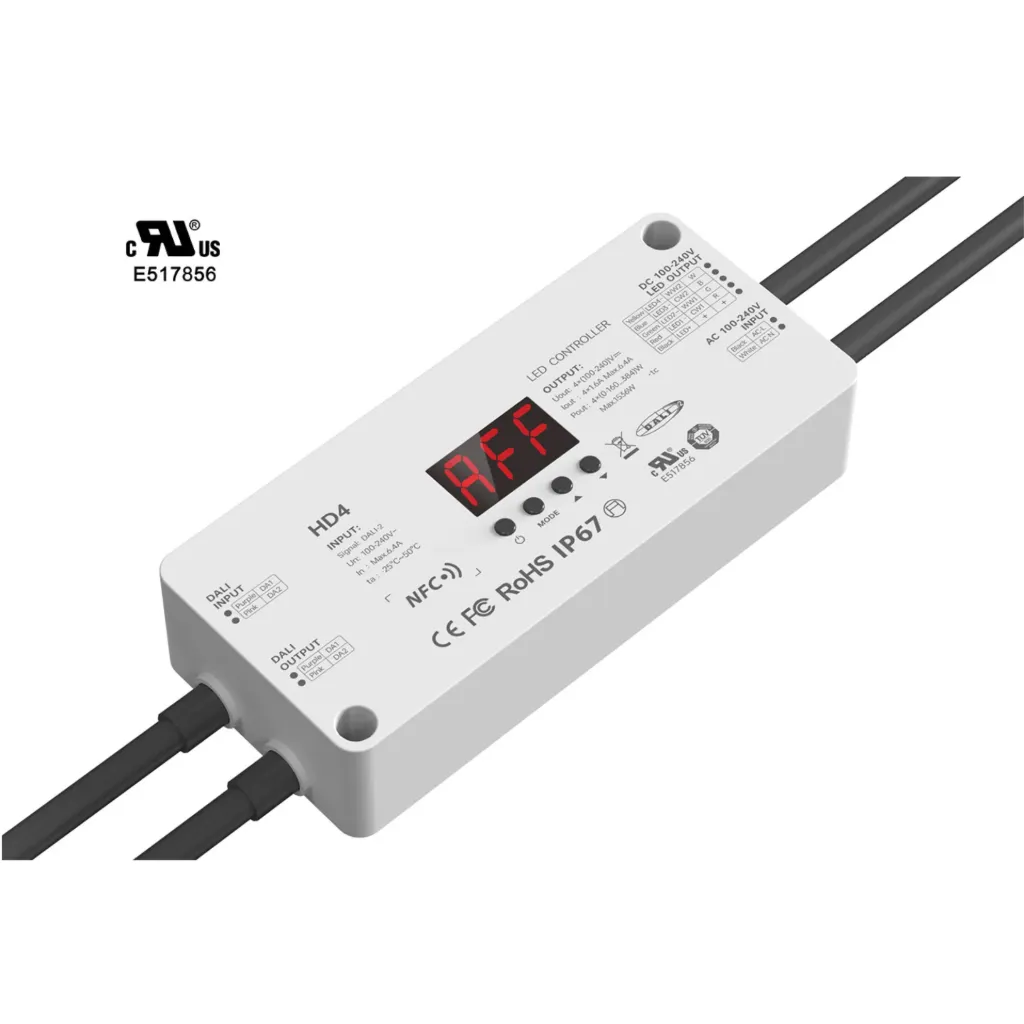

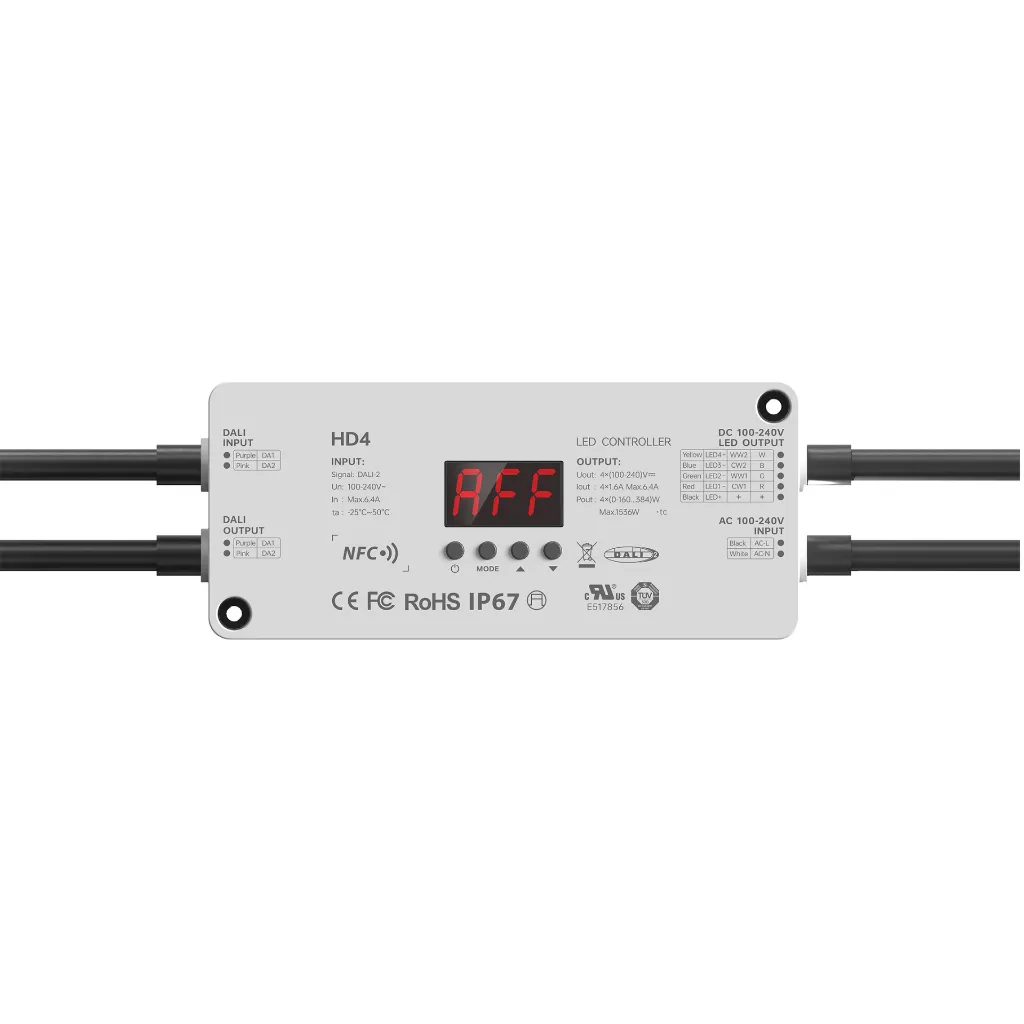

LTECH Driver CV DALI 4CH NFC IP67 - HD4

The HD4 is a high-performance constant-voltage LED controller compatible with all DALI systems, featuring four output channels with up to 6.4A per channel and a total power of 1536W for stable operation. It supports smooth dimming, tunable white, and full RGB/RGBW control, with multiple DT6 and DT8 device types selectable via the NFC Lighting app. Key settings like DALI address, dimming curves, color temperature range, and power-on behavior can be configured through a DALI master, NFC app, or onboard buttons with a digital display. With an IP67 waterproof rating, the HD4 is ideal for both indoor and outdoor installations, offering flexible and reliable lighting control.

  • Input Voltage: 100-240V~
  • Input Current: Max. 6.4A
  • Output Voltage: 4 x (100-140)V
  • Surge: 4KV
  • Operating Temperature: -25°C~50°C
  • Product Dimensions: L164 x W70 x H36 (mm)
  • Weight: 670g
€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max

Internal Reference: 2264161
HS Code: 85369095

Control
DALI
Input Voltage
100-240 V
Input Voltage Domain
AC
Channels
4
Output Voltage
100-240 V
Output Power Range
1536 W
Current load/ ch
1.6A
Curent load max
6.4A
