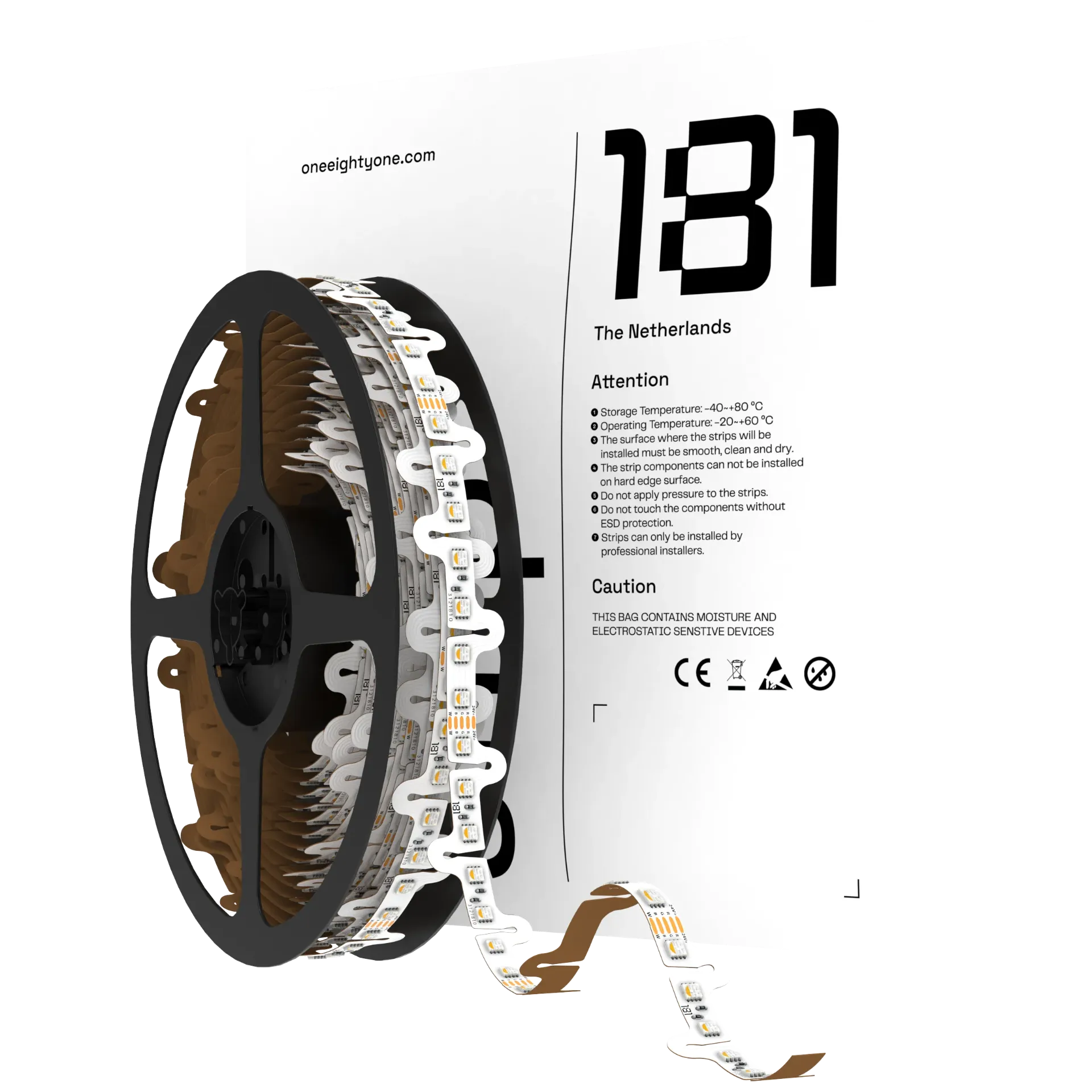

LED Strip Dual Bend Multi Color RGBW

LED Strip Dual Bend Multi Color RGBW

The LED Strip Dual Bend Multi Color RGBW is a flexible indoor lighting solution for dynamic architectural applications. Its dual-bend design allows seamless integration along complex, multi-dimensional forms, while custom lengths and a flexible copper PCB ensure precise installation. Featuring 4in1 LEDs, it combines RGB color mixing with a dedicated 2700K warm white channel for enhanced depth and versatility.

↘ Specialized Dual-Bend Flexibility — Unique dual-bend architecture for smooth integration across complex 3D designs

↘ Integrated 4in1 Lighting Spectrum — RGB with dedicated 2700K warm white for balanced effects and functional lighting
€ 0.00 € 0.00 /Roll (5m)

  • Color Model
  • CRI
  • Power Consumption
  • LED Count
  • LED Type
  • Lumen Maintenance Hours (h)
  • Environment
  • Optics
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • IP Rating
  • Certificates
  • Certificates
  • Warranty
  • Cable Material
  • Connector Type
  • Dimensions (LxWxH) (mm)
  • Color / CCT
  • Control
  • Input Voltage
Add to cart
Contact Us

Internal Reference: 3121810
Barcode: 3121810
Internal Reference: 3121810
HS Code: 85395210

01
General
9 specifications
Color Model
Multi Color
Color / CCT
RGBW (2700K)
CRI
≥80
Control
PWM
Power Consumption
19.2 W/m
Input Voltage
DC (24 V)
LED Count
70/m
LED Type
4in1
Optics
120°
02
Installation Conditions & Lighting Data
2 specifications
Lumen Maintenance Hours (h)
L80 @ 85 °C (LM80-15)/Reported 36000/Calculated 90000
Installation Temperature (°C)
-40 to +80
03
Operating
5 specifications
Environment
Indoor
Working Temperature (°C)
-25 to +60
IP Rating
IP20
Certificates
CE · RoHS
Warranty
2 Years
04
Physical
3 specifications
Cable Material
PVC
Connector Type
Bare Wire
Dimensions (LxWxH) (mm)
10 (30) x 2.2 (10)
01
Specification Sheets & Certifications
1 file
PDF
LED Strip Dual Bend Multi Color RGBW Specification Sheet.pdf
198 KB
Download
