MADRIX STELLA

MADRIX STELLA – Professional DMX and Art-Net Control Interface

Product Description

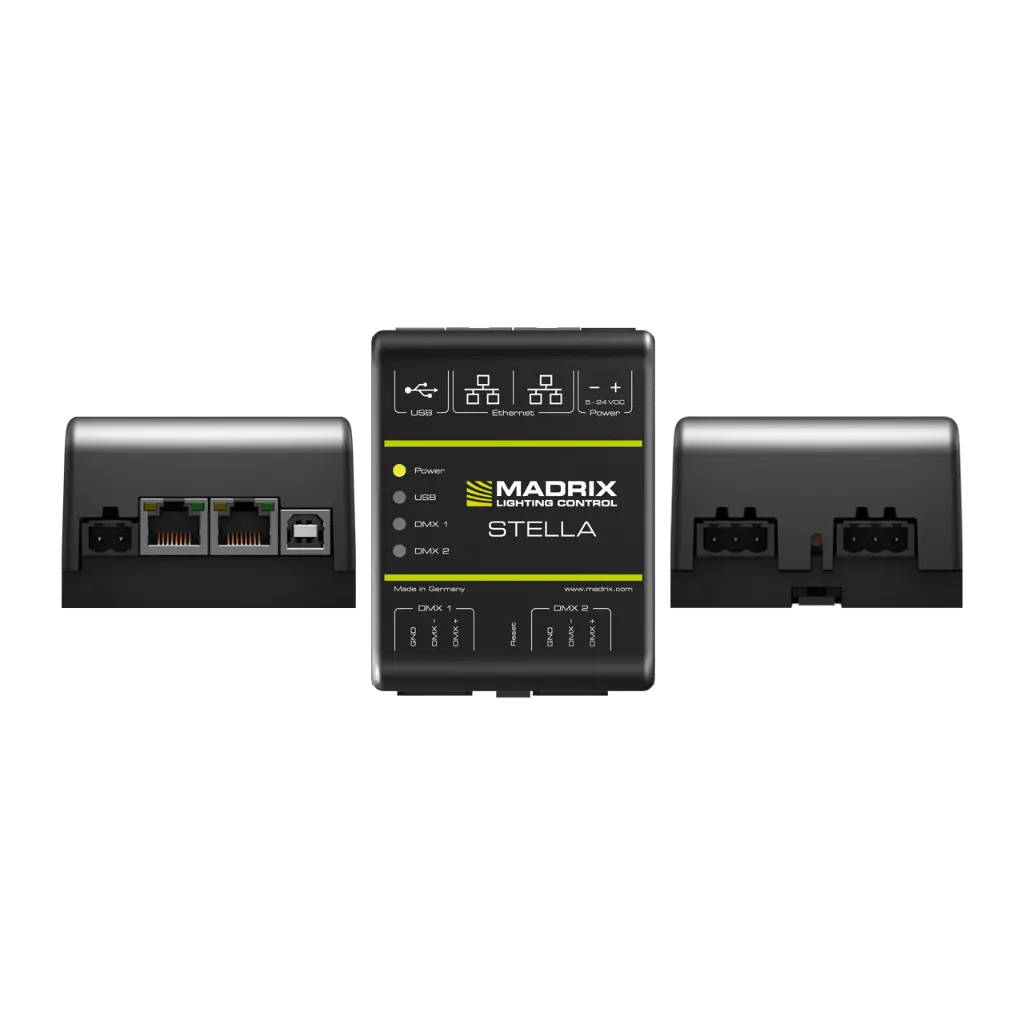

MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN, designed for exceptional quality and reliability in permanent LED installations. This compact 2‑port network node with RDM support is perfect for solid‑state projects where performance and practicality are essential.

Art‑Net / Streaming ACN / USB Connectivity

Easily convert Art‑Net or Streaming ACN data directly to DMX512. Optimize and decentralize cabling to cover any distance using Ethernet networking. For direct connection, simply link MADRIX STELLA to MADRIX 5 over USB.

Easy Configuration

Despite its powerful features, MADRIX STELLA is quick and simple to set up. Power can be supplied via USB or through a 2‑pin screw terminal with a voltage range from 5 V to 24 V.

Compatible with Third‑Party Controllers

MADRIX STELLA follows official protocol specifications, making it fully compatible with other consoles, controllers, or software solutions as a standard network node.

Flexible Mounting Options

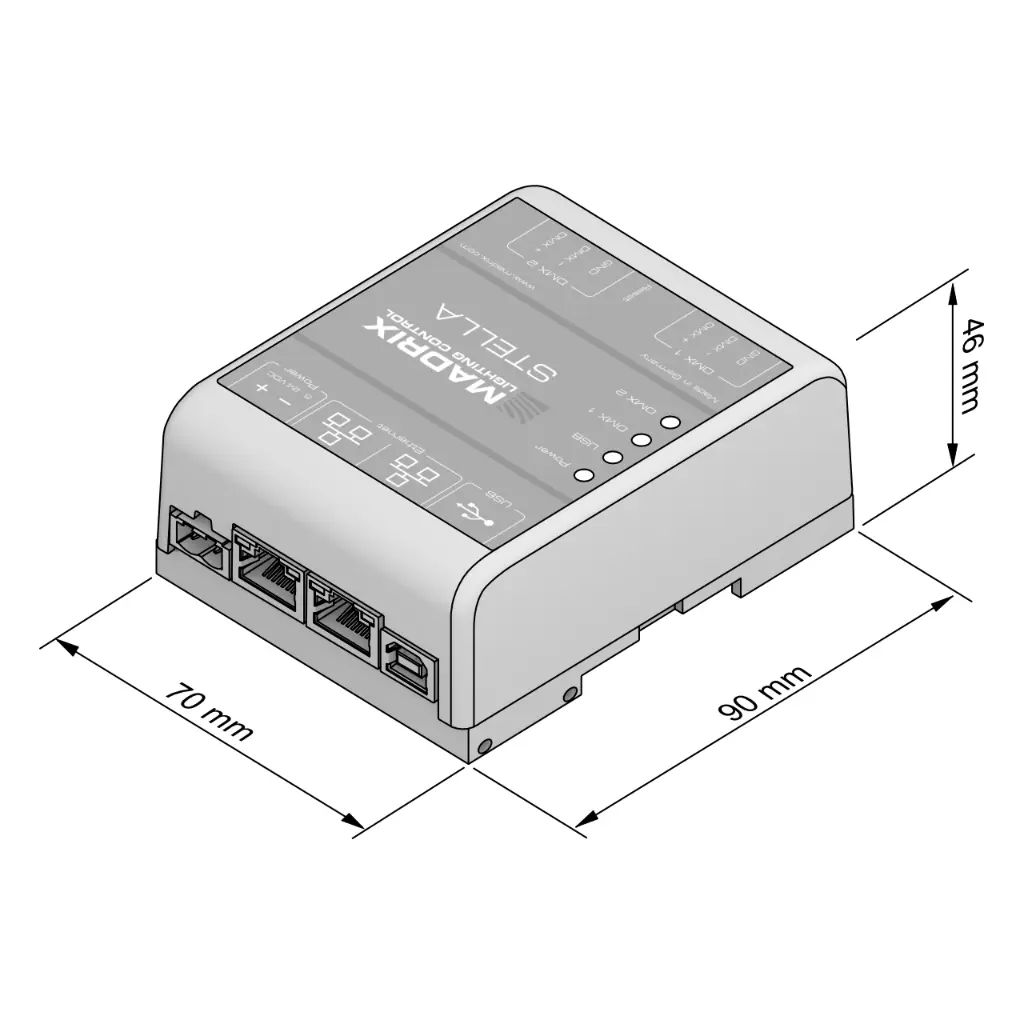

The non‑conductive enclosure is designed for standard 35 mm DIN rails, allowing for safe and easy installation. Two additional brackets are included for optional wall mounting. Nine status indicators provide clear feedback and can be turned off when needed.

2 DMX In/Out Ports

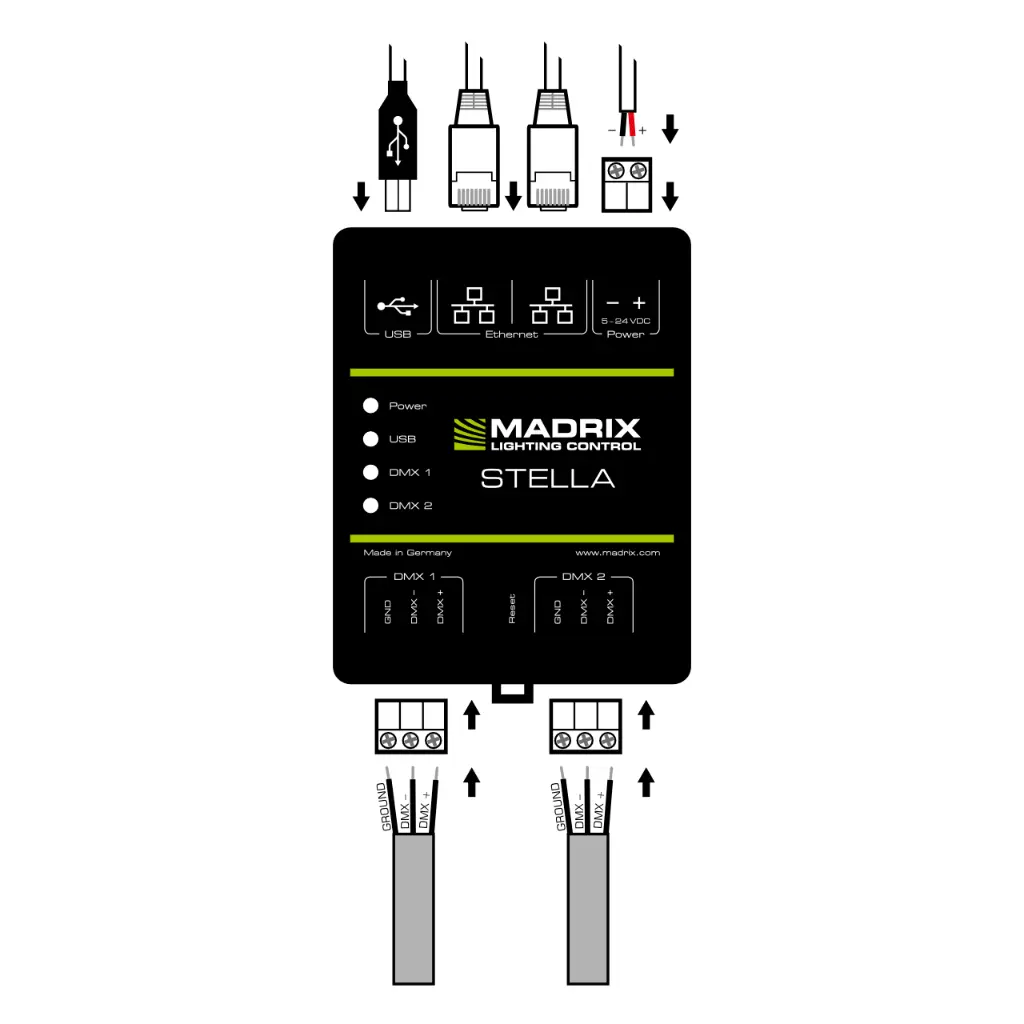

Connect DMX512 directly to the two 3‑pin screw terminals, supporting two universes per unit as input or output. This removes the need for XLR connectors. Multiple units can be used together for larger projects.

Synchronization Mode

MADRIX 5 and MADRIX hardware enable complete synchronization of Art‑Net data for all output ports and across multiple devices, ensuring optimal LED visuals without interruptions.

RDM and Daisy‑Chain Support

Two Ethernet ports allow separate network connections or linear daisy‑chaining of multiple devices. Remote Device Management (RDM) is supported for advanced configuration.

Additional Features

MADRIX STELLA starts up in seconds and automatically offers HTP merging for two Ethernet sources. Firmware updates ensure future compatibility and improvements. Device settings can be accessed and adjusted via the built‑in web configuration interface.
