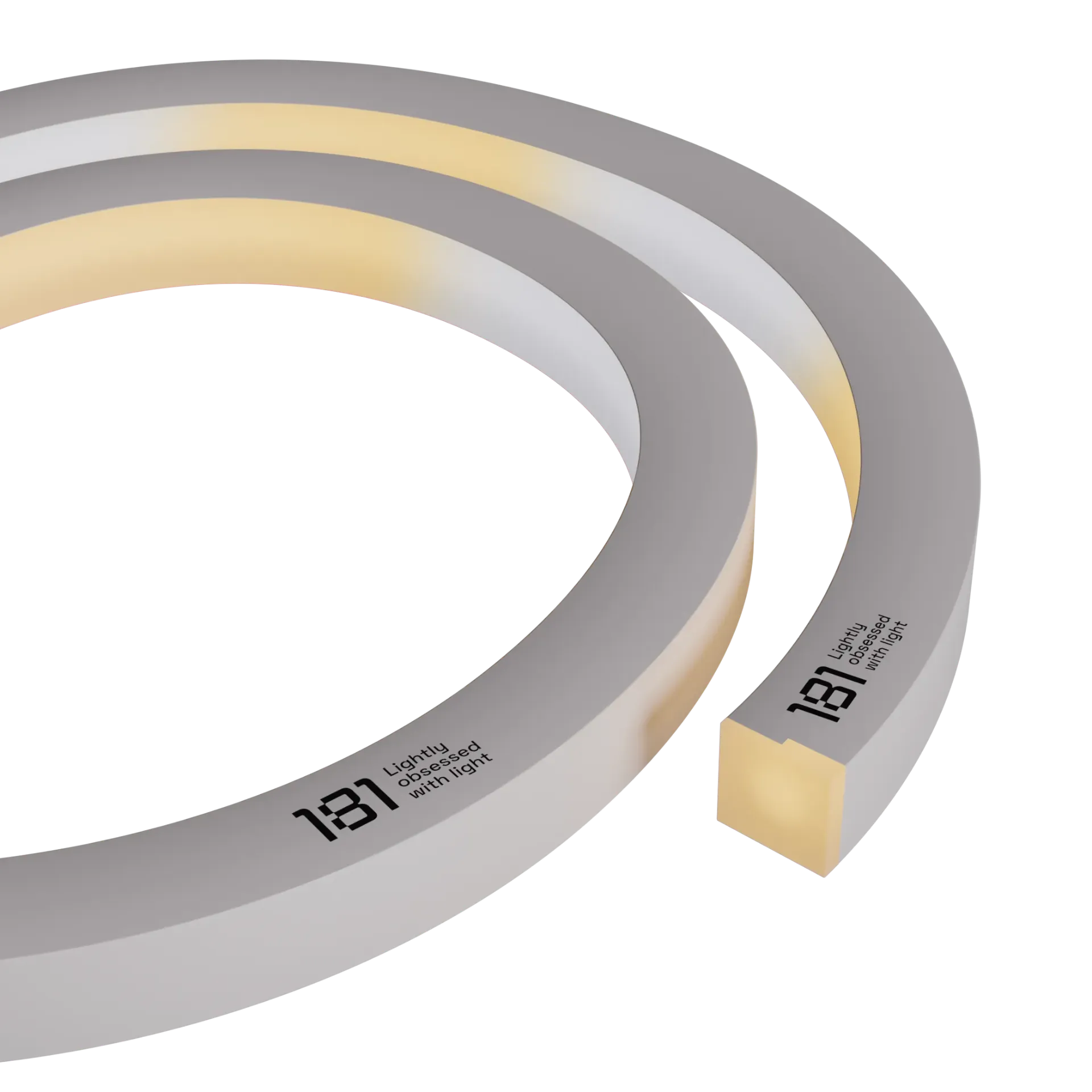

DiGi Neonflex Top Bend Tunable White

The DiGi Neonflex Top Bend Tunable White is a flexible linear lighting solution for continuous, dynamic architectural applications. Its top-bend design allows smooth integration along curves, circular forms, and contours. Delivering high-quality tunable white light, it is ideal for façades, artistic features, and installations requiring vertical bending. Available in 24V and 48V options, it supports both precise layouts and extended runs.

↘ Application-Driven Format — Multiple shapes and sizes for seamless integration across architectural elements

↘ Precise White Effects — Pixel-controlled tunable white lighting for smooth fades and dynamic transitions
€ 0.00 € 0.00 /m

  • Color Model
  • Color / CCT
  • Shape
  • Power Consumption
  • CRI
  • CRI
  • Lumen Maintenance Hours (h)
  • Environment
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Connector Material
  • Connector Type
  • Housing Color - White
  • Cover Material
  • Control
  • Input Voltage
  • Cable entry - Direct (Single / Double feed)
  • Cable configuration
Add to cart
Contact Us

Internal Reference: 3171876
Barcode: 3171876
HS Code: 85395210

01
General
6 specifications
Color Model
Tunable White
Color / CCT
TW (2200K-5700K)
CRI
≥80 · ≥90
Control
DMX
Power Consumption
12 W/m
Input Voltage
DC (24 V)
02
Installation Conditions & Lighting Data
2 specifications
Lumen Maintenance Hours (h)
70.000 Hours L70 @ 25°C 50.000 Hours L70 @ 50°C
Installation Temperature (°C)
0 to +50
03
Operating
9 specifications
Environment
Outdoor
Working Temperature (°C)
-40 to +55
Saltwater Resistant
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP68
Certificates
RoHS · CE · UL · UKCA · CB · FCC
Warranty
5 Years
04
Physical
8 specifications
Cable configuration
Single Feed M12 connector - 300 mm
Cable entry
Direct (Single / Double feed)
Connector Material
Nylon (PA66)
Shape
1616
Housing Material
Silicone
Connector Type
Bare Wire/M12
Housing Color
White
Cover Material
Silicone
01
Specification Sheets & Certifications
5 files
PDF
DiGi Neonflex Top Bend Tunable White 24V Specification Sheet.pdf
1.2 MB
Download
PDF
DiGi Neonflex Top Bend Tunable White 48V Specification Sheet.pdf
1.0 MB
Download
PDF
Neonflex Top Bend Configuration Form.pdf
275 KB
Download
PDF
M12 5Pin Connector Cables DiGi.pdf
691 KB
Download
PDF
M12 3Pin Connector Cables DiGi.pdf
650 KB
Download
