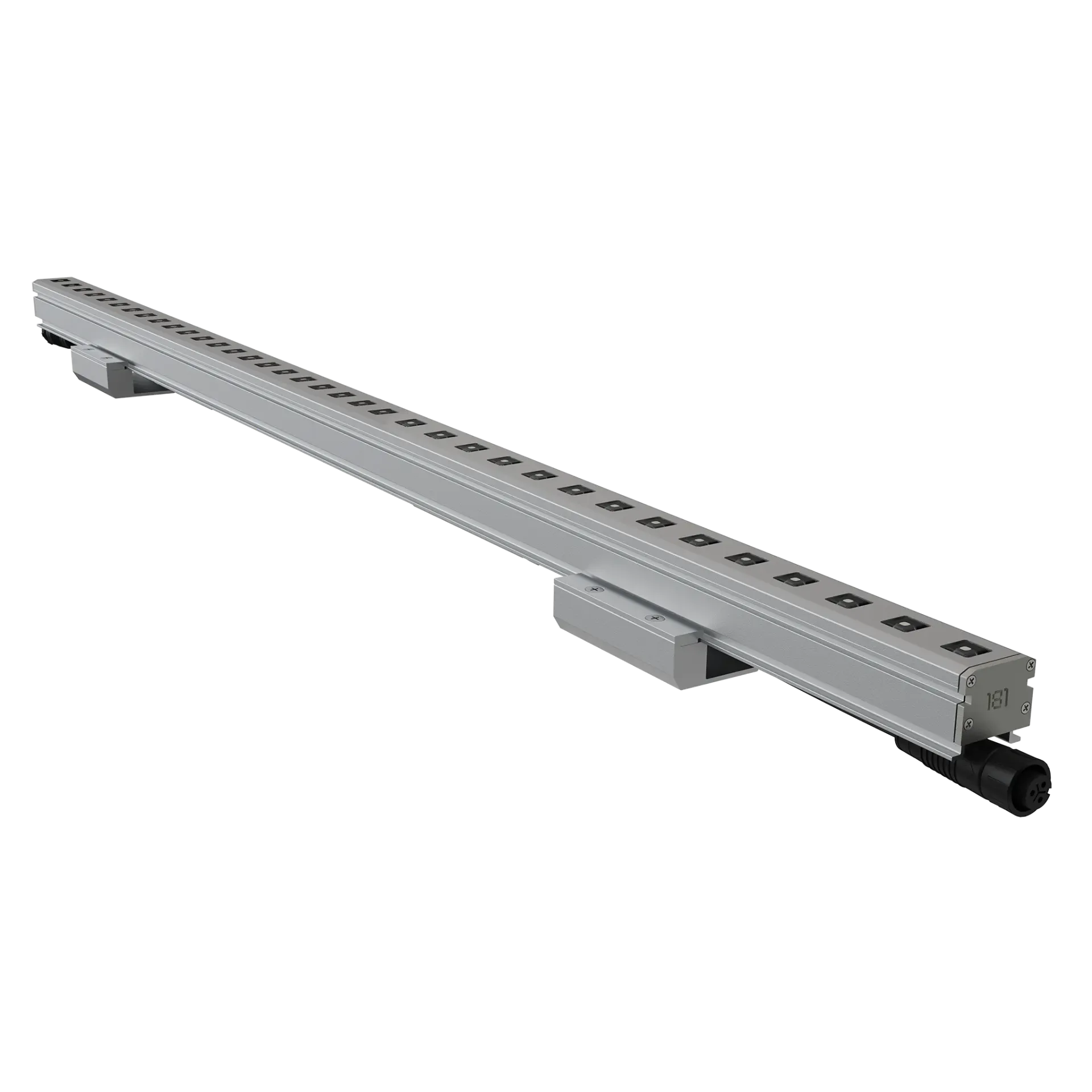

DiGi Linear D-Series 2

The DiGi Linear D-Series 2 is a high-performance linear LED solution for demanding architectural and outdoor applications, including coastal environments. It delivers strong lumen output with high LED density for superior RGBW color mixing, while ensuring reliable performance in harsh conditions.

↘ Enhanced LED Architecture — 40 LEDs per meter for powerful output and consistent RGBW color mixing

↘ Extended Data Performance — Up to 25-meter data transmission at 50 FPS for seamless large-scale control
€ 0.00 € 0.00

  • Color Range
  • Length
  • Power Consumption
  • Input Voltage
  • LEDs
  • Pixels
  • Channels
  • Optics
  • LED Type
  • CRI
  • Dimming
  • Lumen Maintenance Hours (h)
  • Delivered Lumen (lm)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • Saltwater Resistant
  • Coastal Environmental Proof
  • UV Resistant
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Dimensions (mm)
  • Color / CCT
  • Housing Color - Grey RAL7047
  • Control
Add to cart
Contact Us

HS Code: 94051190

01
General
12 specifications
Color Range
Multi Color
Color / CCT
RGBW3000K
CRI
≥80
Control
SPI
Channels
144/900mm
Power Consumption
18 W/900mm
Input Voltage
48 V
LEDs
36/900mm
Pixels
36/900mm
Optics
115°
LED Type
4in1
Dimming
16 Bit
02
Installation Conditions & Lighting Data
2 specifications
Lumen Maintenance Hours (h)
L80B10 50.000
Delivered Lumen (lm)
1150 (RGBW3000K 1500mm)
03
Operating
11 specifications
Environment
Outdoor
Storage Temperature (°C)
-30 to +90
Working Temperature (°C)
-20 to +85
Saltwater Resistant
Yes
Coastal Environmental Proof
Yes
UV Resistant
Yes
Flame Resistant
Yes
IK Rating
IK08
IP Rating
IP68
Certificates
CE · RoHS
Warranty
5 Years
04
Physical
8 specifications
Length
300 mm
Housing Material
Aluminum (AW-6063)
Cable Material
PCP
Connector Material
Nylon (PA66)
Connector Type
M16 5Pin
Housing Color
Grey RAL7047
Cover Material
PC
Dimensions (mm)
24 x 24
01
Specification Sheets & Certifications
3 files
PDF
DiGi Linear D-Series 2 Multi Color RGBW Specification Sheet.pdf
307 KB
Download
PDF
DiGi Linear D-Series 2 Dimensions Sheet.pdf
174 KB
Download
PDF
M16 5Pin Connector Cables DiGi.pdf
687 KB
Download
02
Installation Instructions
1 file
PDF
Installation guide DiGi Linear D-Series 2.pdf
1.5 MB
Download
03
Photometrics (IES & LDT)
1 file
ZIP
DiGi Linear D-Series 2 IES ldt.zip
19 KB
Download
04
CAD Files
1 file
ZIP
Product drawings.zip
8.9 MB
Download
