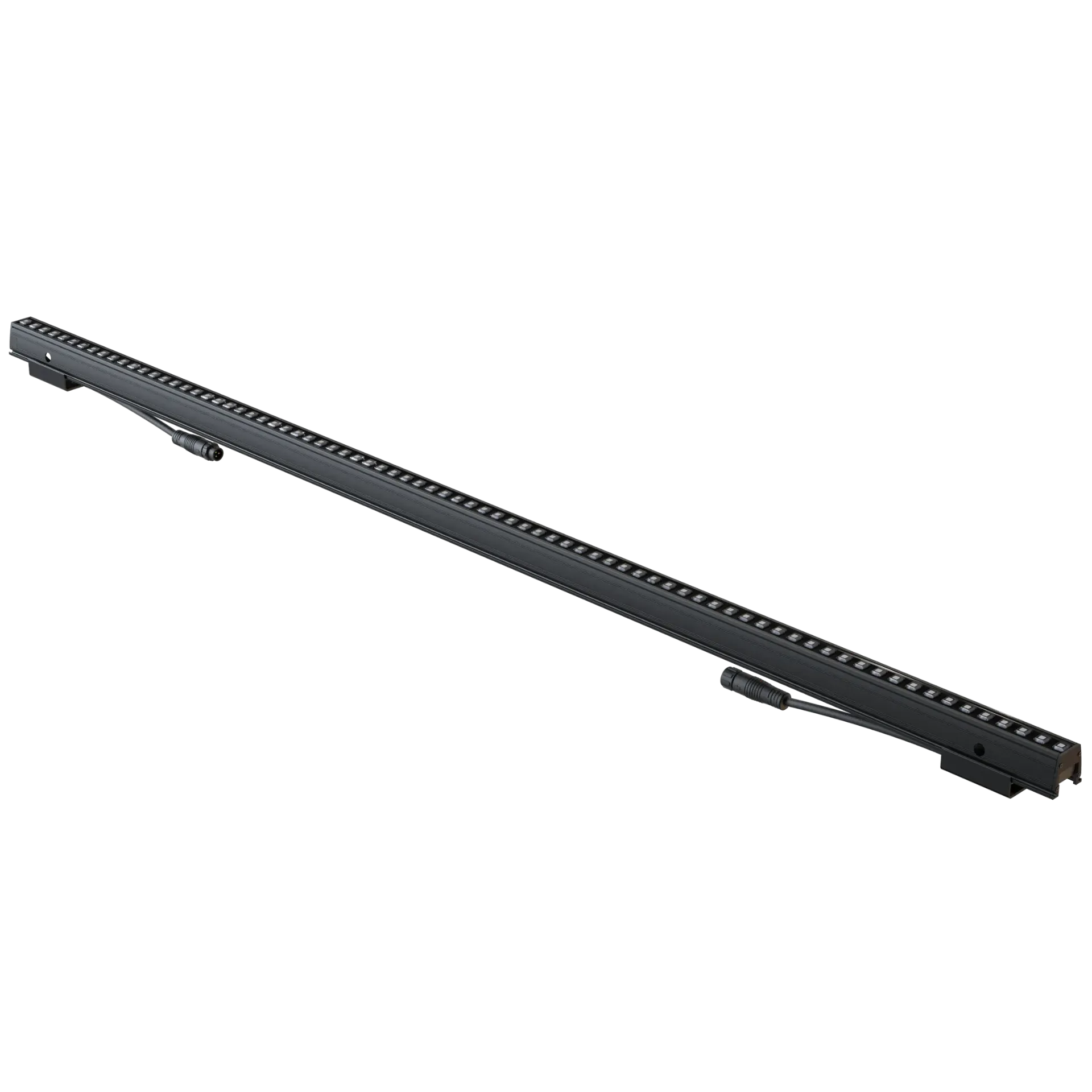

DiGi Linear M-Series

The DiGi Linear M-Series is a touring-ready RGB linear solution for stages, set pieces, truss lines, and temporary façades. It delivers vibrant, precise color with smooth SPI-controlled effects, while its rugged, weather-ready construction ensures reliable indoor and outdoor performance. Designed for fast deployment, flexible mounting and cabling streamline load-ins and changeovers in demanding entertainment and broadcast environments.

↘ High-Efficiency RGB 3in1 LED — SPI control for precise color mixing and dynamic effects

↘ Premium Environmental Protection — Aluminum construction with IP65/IK07 rating for reliable performance in demanding conditions
€ 0.00 € 0.00 /Unit

  • Color Model
  • Length
  • Power Consumption
  • Input Voltage
  • LED Count
  • Pixels
  • Channels
  • Optics
  • LED Type
  • Dimming
  • Lumen Maintenance Hours (h)
  • Environment
  • Storage Temperature (°C)
  • Working Temperature (°C)
  • Flame Resistant
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Dimensions (LxWxH) (mm)
  • Color / CCT
  • Housing Color - Black
Add to cart
Contact Us

Internal Reference: 3555140
Barcode: 3555140
HS Code: 94051190

01
General
10 specifications
Color Model
Multi Color
Color / CCT
RGB
Channels
36/m
Power Consumption
15 W/m
Input Voltage
DC (24 V)
LED Count
72/m
Pixels
12/m
LED Type
3in1
Dimming
8 Bit
Optics
110°
02
Installation Conditions & Lighting Data
1 specification
Lumen Maintenance Hours (h)
L70B20 50.000
03
Operating
8 specifications
Environment
Outdoor
Storage Temperature (°C)
-30 to +65
Working Temperature (°C)
-20 to +55
Flame Resistant
Yes
IK Rating
IK07
IP Rating
IP65
Certificates
CE · RoHS
Warranty
3 Years
04
Physical
8 specifications
Length
500 mm
Connector Material
Nylon (PA66)
Housing Material
Aluminum (AW-6063)
Cable Material
PCP
Cover Material
PC
Connector Type
M12 3Pin
Housing Color
Black
Dimensions (LxWxH) (mm)
30 x 28.5
01
Specification Sheets & Certifications
3 files
PDF
DiGi Linear M-Series Dimensions Sheet.pdf
249 KB
Download
PDF
DiGi Linear M-Series Multi Color RGB Specification Sheet.pdf
322 KB
Download
PDF
M12 3Pin Connector Cables DiGi.pdf
650 KB
Download
02
Installation Instructions
1 file
PDF
Installation guide DiGi Linear M-Series.pdf
961 KB
Download
03
CAD Files
1 file
ZIP
Product drawings.zip
9.2 MB
Download
