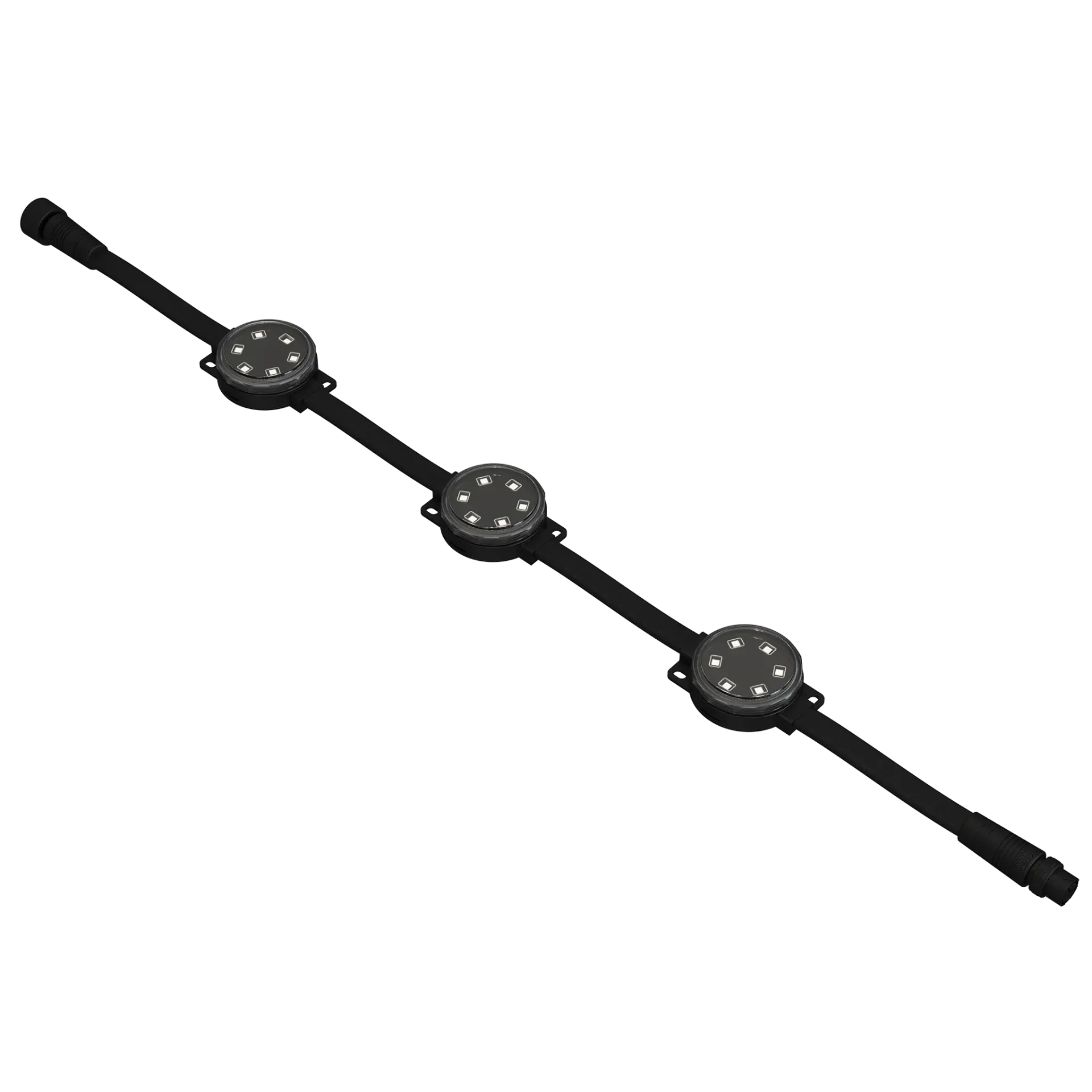

DiGi Module ES

The DiGi Module ES is a high-performance point-source LED solution for demanding architectural displays, entertainment installations, and large-scale façade projects. It delivers powerful RGB or RGBW illumination with SPI control for precise color mixing and dynamic lighting effects. Built with robust IP68-rated housing and a 110° beam angle, it ensures reliable performance in challenging outdoor environments, while offering scalable configurations for flexible design integration.

↘ Scalable Architecture — Multiple variants enabling flexible power output and precise color control across project scales

↘ Compact High-Performance Design — IP68-rated compact form factor with 110° beam angle for versatile installation
€ 0.00 € 0.00

  • Color Range
  • Color / CCT
  • Power Consumption
  • Pixels
  • Optics
  • CRI
  • Dimming
  • Environment
  • Installation Temperature (°C)
  • Working Temperature (°C)
  • IK Rating
  • IP Rating
  • Certificates
  • Certificates
  • Certificates
  • Warranty
  • Housing Material
  • Cable Material
  • Connector Material
  • Connector Type
  • Cover Material
  • Type
  • Input Voltage
  • Control
  • Housing Color - Beige
Add to cart
Contact Us

HS Code: 94051190

01
General
10 specifications
Color Range
Multi Color
Color / CCT
RGB
CRI
≥80
Control
SPI
Power Consumption
0.7-3 W
Input Voltage
12 V
Type
3
Pixels
1/module
Optics
110°
Dimming
16 Bit
02
Installation Conditions & Lighting Data
1 specification
Installation Temperature (°C)
-40 to +60
03
Operating
6 specifications
Environment
Outdoor
Working Temperature (°C)
-25 to +55
IK Rating
IK08
IP Rating
IP68
Certificates
CE · RoHS · ETL
Warranty
5 Years
04
Physical
6 specifications
Housing Material
ABS
Cable Material
PCP
Connector Material
Nylon (PA66)
Connector Type
M16 5Pin
Housing Color
Beige
Cover Material
PC
01
All Files
6 files
PDF
DiGi Module ES Multi Color RGBW Specification Sheet.pdf
612 KB
Download
PDF
DiGi Module ES Multi Color RGB Specification Sheet.pdf
611 KB
Download
PDF
ES Orderform_V3.1.pdf
467 KB
Download
PDF
M16 5Pin Connector Cables DiGi.pdf
687 KB
Download
ZIP
Product drawings.zip
15.5 MB
Download
ZIP
DiGi Module ES Multi Color IES ldt.zip
129 KB
Download
