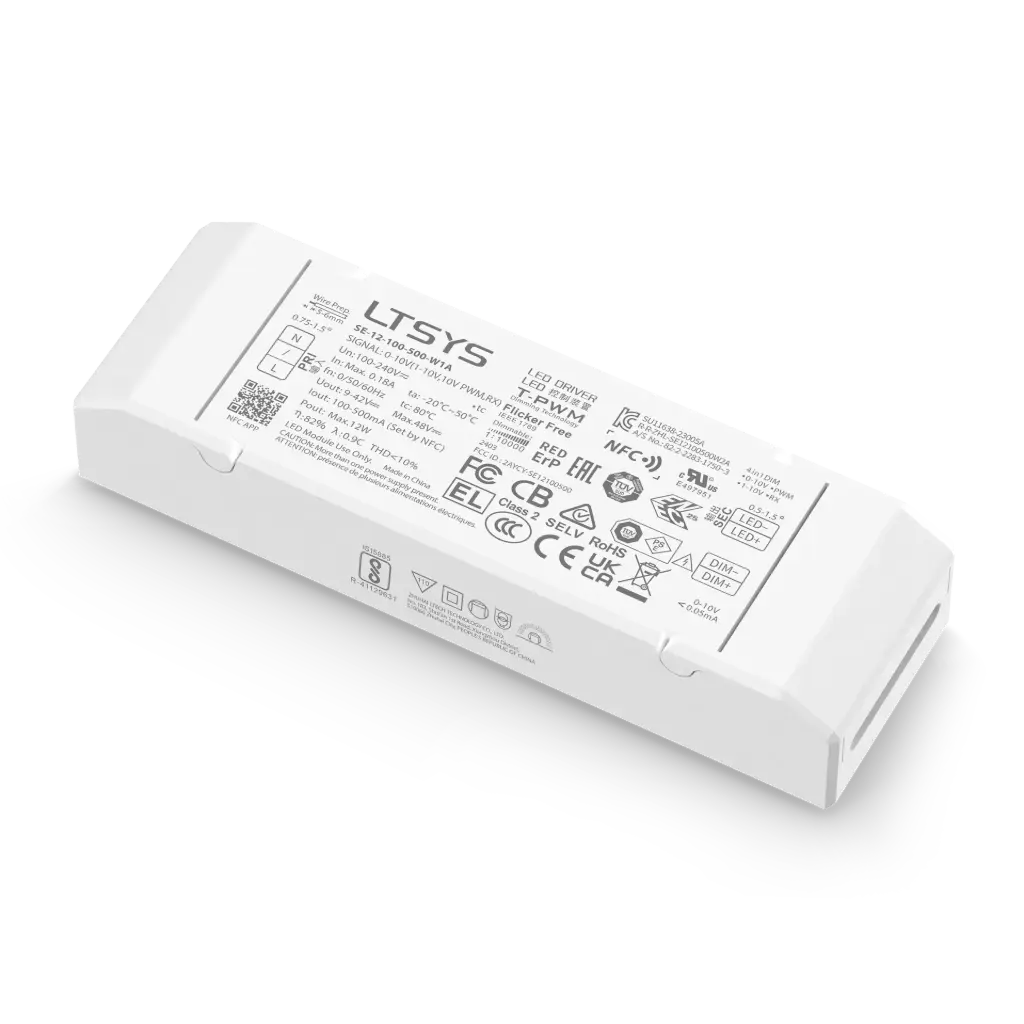

LTECH LTSYS Driver CC 0-10V 1CH 100-500mA 12W - SE-12-100-500-W1A

Intelligent LED Driver (Constant Current)

This ultra-small, thin, and lightweight LED driver features a screwless end cap for easy installation. You can adjust the output current, dimming mode, and other settings via the APP, with output current adjustable in 1 mA steps. It has ultra-low consumption on 0-10 V ports <0.05 mA and includes a soft-on and fade-in dimming function to enhance visual comfort. Normal service life can reach 100,000 hours. 5-year warranty (Rubycon capacitor).

Input Voltage: 115Vac / 230Vac
Output Voltage: 9-42Vdc
Output Current: 100-500mA
Output Power: 0.9W-12W
Working Temperature: ta: -20°C~50°C tc: 80°C
Dimensions: L110 x W35 x H20 (mm)
Weight (N.W): 85g

IP Rating: IP20

Power: 12W

Input Voltage Domain: AC

Input Voltage: 100-240V

Output Voltage: 9-42V

Output Current: 100-500mA

Channels: 1

Control: 0-10V

Certificates: CCC , TUV , FCC , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , ERP , PSE , RoHS

Dimming Range: 0-100% down to 0.01%

Warranty: 5 Years(Rubycon capacitor)
