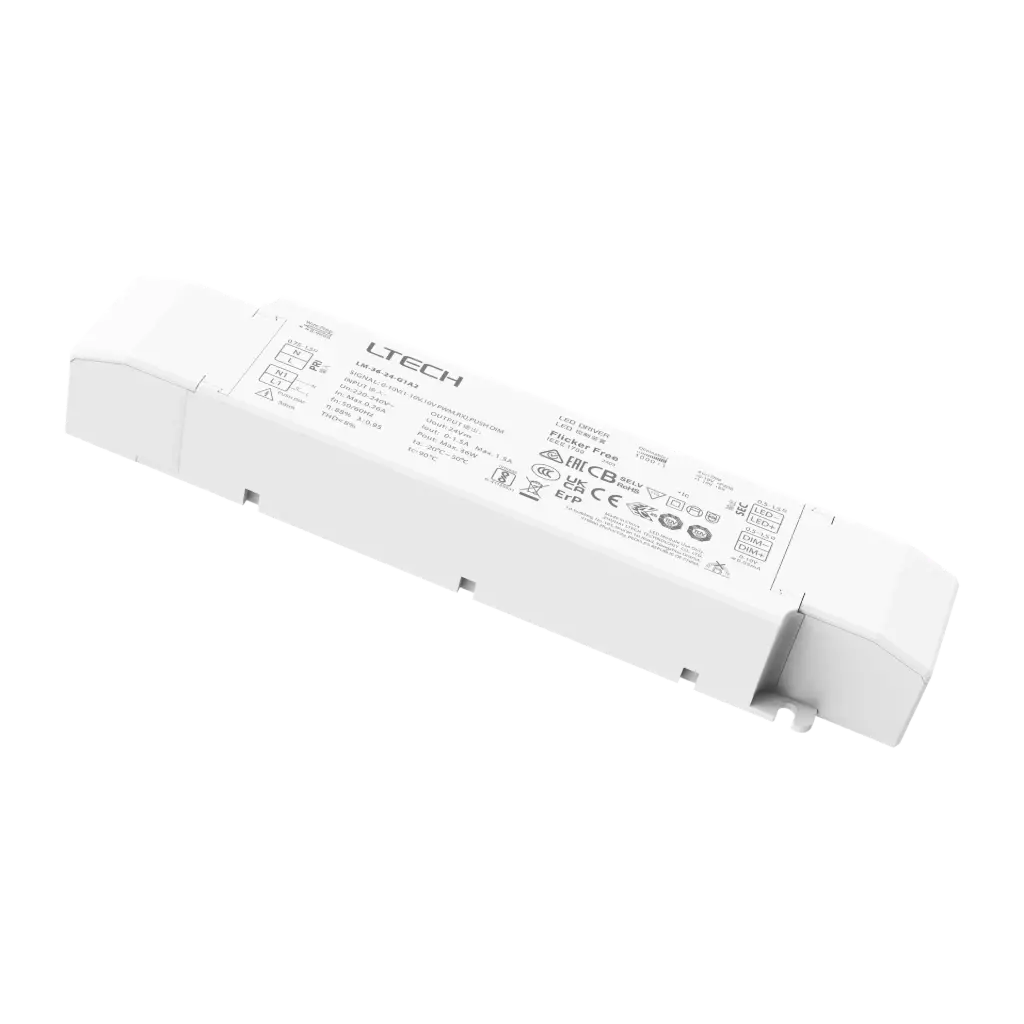

LTECH LTSYS Driver CV 0-10V 1CH 24V 36W - LM-36-24-G1A2

LTECH LTSYS Driver CV 0-10V 1CH 24V 36W - LM-36-24-G1A2


Intelligent LED Driver (Constant Voltage)
Adopt Samsung/Covestro V0 flame resistant polycarbonate protective housing, small and lightweight. Dismountable end cap for adjustable length. Dimming interfaces: 0-10V/1-10V/PWM and Push DIM, auto-recognition. Dimming 0-100% (0.1%), flicker-free, soft-on and fade-in function. High performance drivers: Efficiency 88%, PF>0.95, THD<8%, standby power consumption <0.5 W. Thermal management technology that protects lifetime the driver. Over-heat/ Over voltage/ Overload/ short-circuit protection and recover automatically. Suitable for lamp applications of indoor I/II/III types. Up to 50,000-hour lifetime.

€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2814200
HS Code: 85044031

01
General
8 specifications
Control
0-10V
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
1
Output Voltage
24 V
Output Power Range
36 W
Curent load max
1.5A
Dimming Range
0-100% down to 0.1%
02
Operating
2 specifications
Certificates
CCC · BIS · TUV · CE · KC · RCM · ENEC · CB · EAC · UKCA · RoHS
Warranty
5 Years
01
All Files
1 file
PDF
LM-36-24-G1A2 User Manual.pdf
1.1 MB
Download
Document
