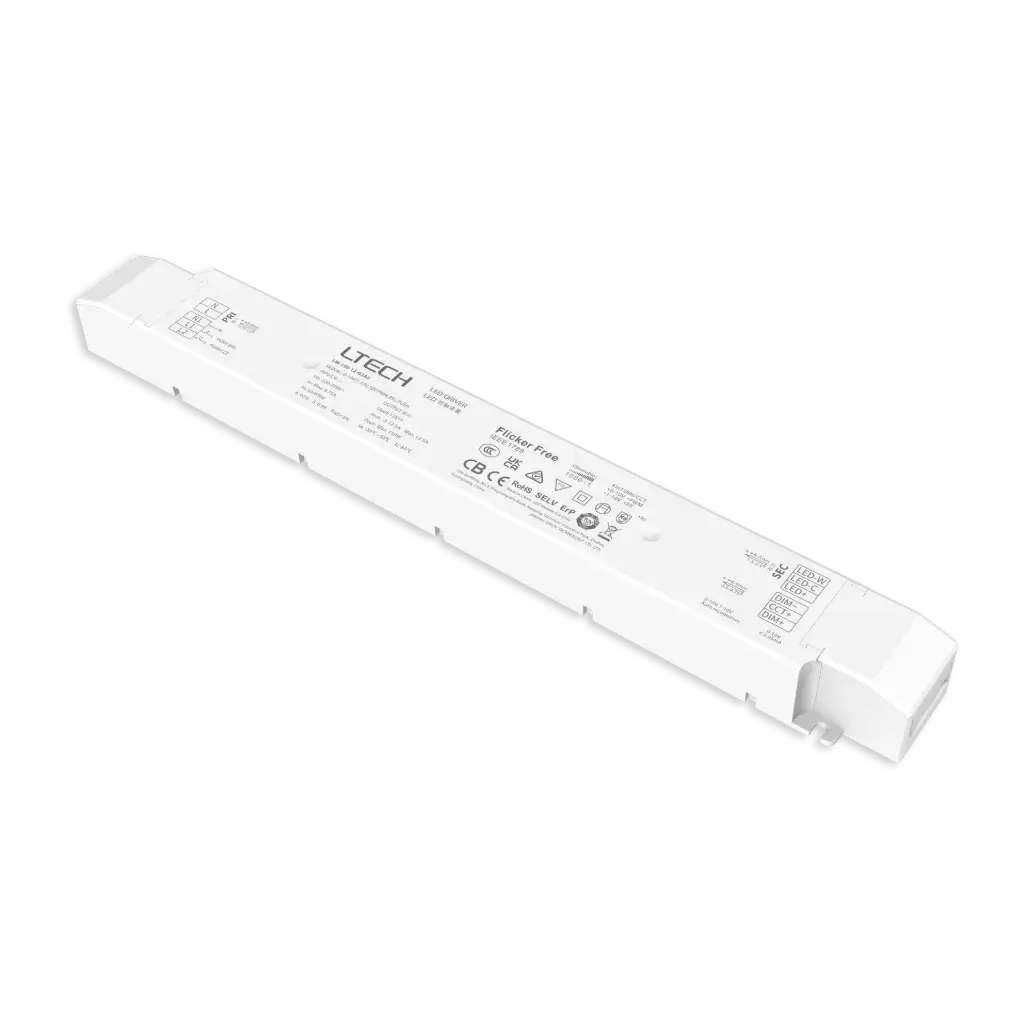

LTECH LTSYS Driver CV 0-10V 2CH 12V 150W - LM-150-12-G2A2

LED Intelligent CT Driver (Constant Voltage)

This compact and lightweight tunable white LED driver features a V0 flame-retardant PC housing from Samsung/Covestro with a clamshell, screwless strain-relief design and detachable end caps for flexible installation. It offers two SELV output channels with common anode and a constant power design that maintains consistent brightness while adjusting color temperature from 2700K to 6500K. Supporting 0-10V and 1-10V automatic signal recognition, it delivers smooth dimming from 0-100% down to 0.1%, with soft-on and fade-in for added visual comfort and ultra-low 0-10V port consumption below 0.05mA. Advanced thermal management and full protection against overheat, overvoltage, overload, and short circuit ensure safe, reliable operation. Compliant with SELV standards for Class I/II/III indoor lighting, it offers up to 50,000-hour service life. 5-year warranty (Rubycon capacitor).

Control
- 0-10V
Input Voltage
- 220-240 V
Input Voltage Domain
- AC
Channels
- 2
Output Voltage
- 12 V
Output Power Range
- 150
Current load/ ch
- 6.25A
Curent load max
- 12.5A

Internal Reference: 2833100
HS Code: 85044031

General

8 specifications

Control

0-10V

Input Voltage

220-240 V

Input Voltage Domain

Channels

Output Voltage

Output Power Range

Current load/ ch

6.25A

Curent load max

12.5A

All Files

1 file

LM-150-12-G2A2 User Manual.pdf

1.4 MB

Download
