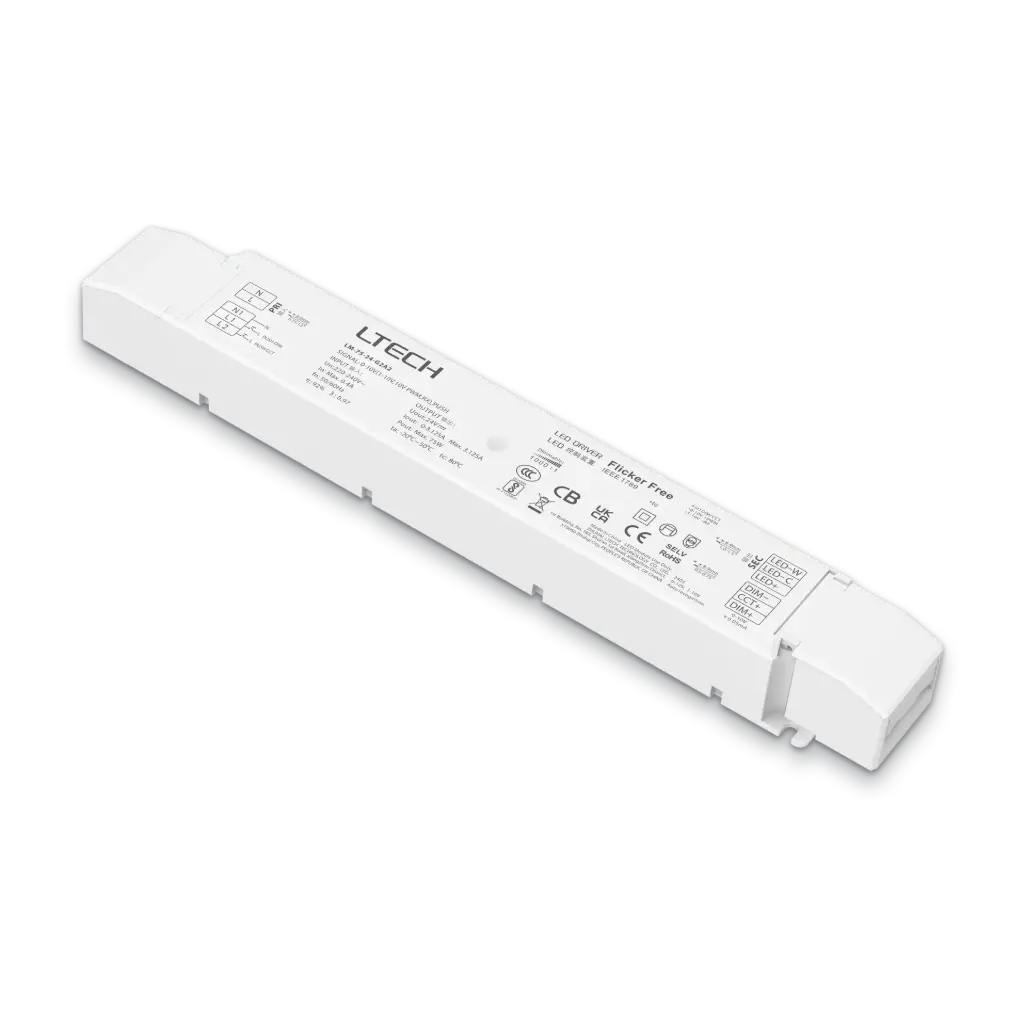

Intelligent Tunable White LED Driver (Constant Voltage)
This compact and lightweight tunable white LED driver features a V0 flame-retardant PC housing from Samsung/Covestro with a clamshell, screwless strain-relief design and detachable end caps for flexible installation. It offers two SELV output channels with common anode and a constant power design that maintains consistent brightness while adjusting color temperature from 2700K to 6500K. Supporting 0–10V and 1-10V automatic signal recognition, it delivers smooth dimming from 0–100% down to 0.1%, with soft-on and fade-in for added visual comfort and ultra-low 0-10V port consumption below 0.05mA. Advanced thermal management and full protection against overheat, overvoltage, overload, and short circuit ensure safe, reliable operation. Compliant with SELV standards for Class I/II/III indoor lighting, it offers up to 50,000-hour service life. 5-year warranty (Rubycon capacitor).
- Input Voltage: 220-240V AC
- Output Voltage: 24Vdc
- Output Current: Max. 3.125A
- Output Power: Max. 75W
- Working Temperature: ta: -20~50°C tc: 80°C
- Dimensions: L293 x W43 x H30 (mm)
- Weight (G.W): 300g
