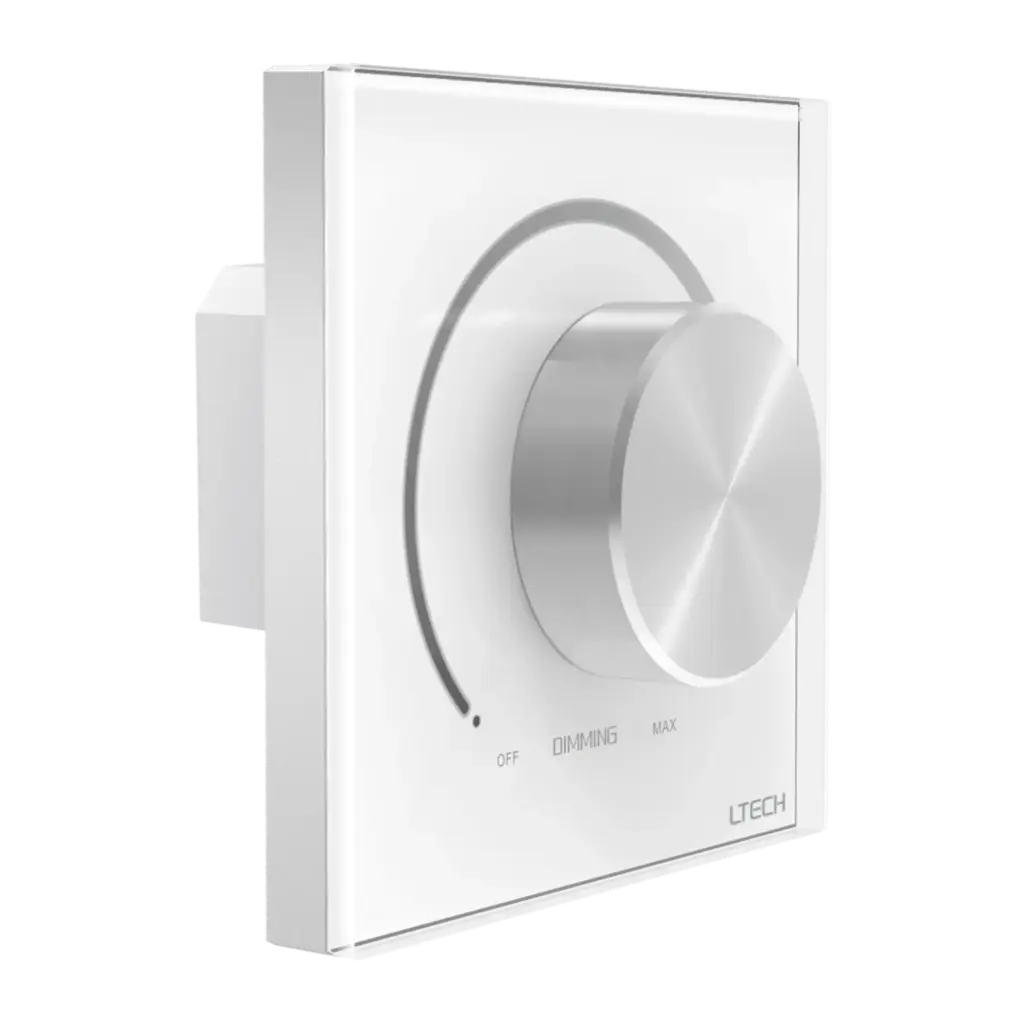

LTECH 1-10V Dimmer - E610

A wall-mounted 1-10V LED dimmer for single-color LED lighting. It offers smooth 0-100% dimming and precise brightness control for standard 1-10V dimmable LED drivers.

Output Voltage: 1~10V AC
Input voltage: 100~240Vac, 50-60Hz
Max Load Current: Max 50A
Working Temperature: -10°C~55°C
Dimension: L86 x W86 x H50 (mm)
Weight: 220g

Control
- 0-10V
Channels
- 1
Input Voltage Domain
- AC
Working Temperature
- -10°C to 55°C
Weight (g)
- 220g
Dimensions (LxWxH) (mm)
- L86xW86xH50(mm)
Package Size
- L106×W106×H60(mm)
Max Switching Current
- 5 A
Max Switching Voltage
- 250 V

Internal Reference: 2259000
Barcode: 6971379111069
Internal Reference: 2259000
HS Code: 85371098

General

3 specifications

Control

0-10V

Channels

Input Voltage Domain

Operating

1 specification

Working Temperature

-10°C to 55°C

Physical

3 specifications

Weight (g)

Dimensions (LxWxH) (mm)

L86xW86xH50(mm)

Package Size

L106×W106×H60(mm)

Other

2 specifications

Max Switching Current

Max Switching Voltage

250 V

User Manuals

1 file

E610 User Manual.pdf

613 KB

Download
