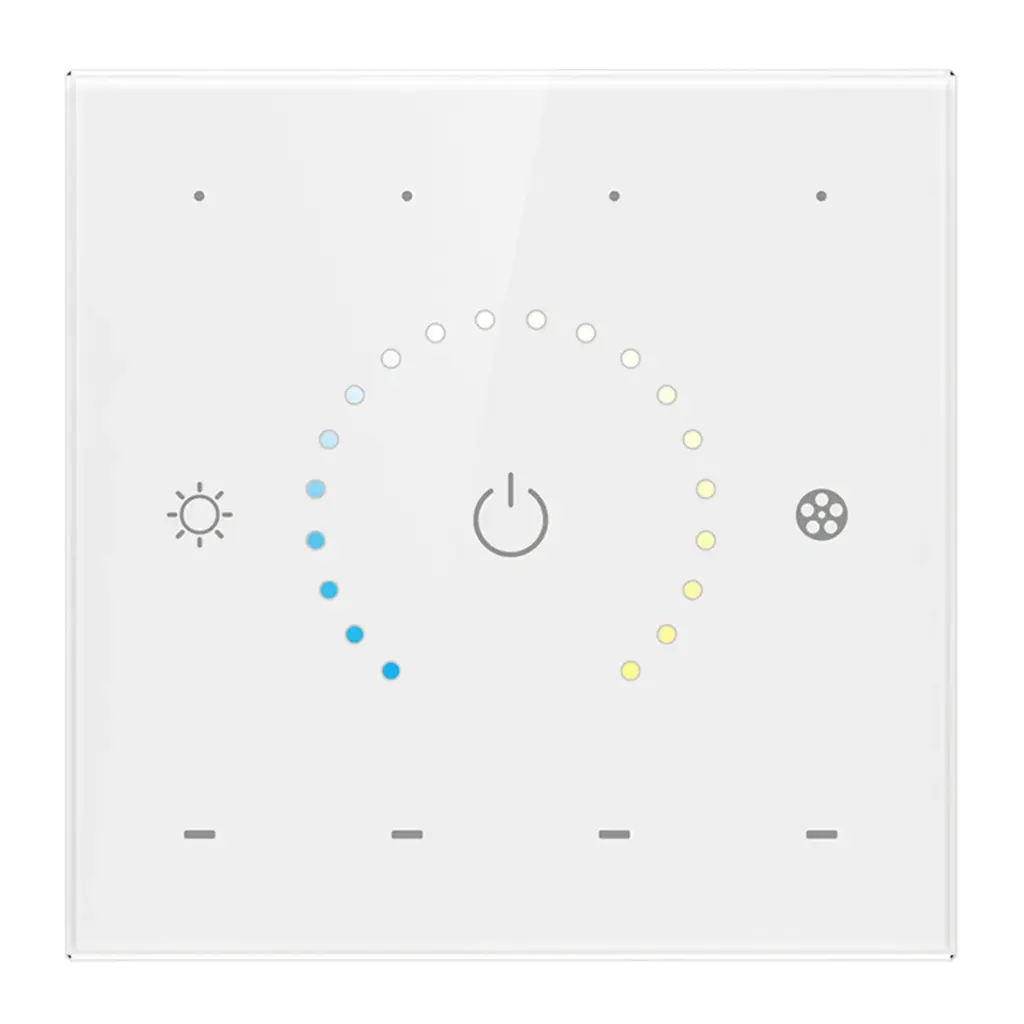

LTECH Bluetooth touch panel CT 4 zones - EB2

EB Series Touch Panel

This controller feature function area keys for brightness shortcuts in single-zone mode or zone selection in multi-zone mode. The CT touch ring adjusts color temperature, while the main switch controls all lights. The brightness key offers five levels and long-press CT dimming, and the mode/speed key switches modes and adjusts speed. A scene key triggers bound scenes via the L-Home app, supporting both local and DALI scenes.

Control Type: CT
Compatible Remote Control: B2
Output Voltage: 100-240V
Output Signal: DMX512
Wireless Type: Bluetooth 5.2 SIG Mesh
Compatible Driver: B5-3A
Working Temperature: -25°C~50°C

Control
- DMX
Input Voltage
- AC (100-240 V)
Input Voltage Domain
- AC
Working Temperature
- -25°C to 50°C
Output Voltage
- 100-240 V
Weight (g)
- 155g
Dimensions (LxWxH) (mm)
- L86xW86xH36(mm)
Package Size
- L113xW112xH50(mm)

Internal Reference: 2261102
Barcode: 6971379113803
Internal Reference: 2261102
HS Code: 85371098

General

4 specifications

Control

Input Voltage

AC (100-240 V)

Input Voltage Domain

Output Voltage

100-240 V

Operating

1 specification

Working Temperature

-25°C to 50°C

Physical

3 specifications

Weight (g)

Dimensions (LxWxH) (mm)

L86xW86xH36(mm)

Package Size

L113xW112xH50(mm)

User Manuals

1 file

EB2 User Manual

1.7 MB

Download
