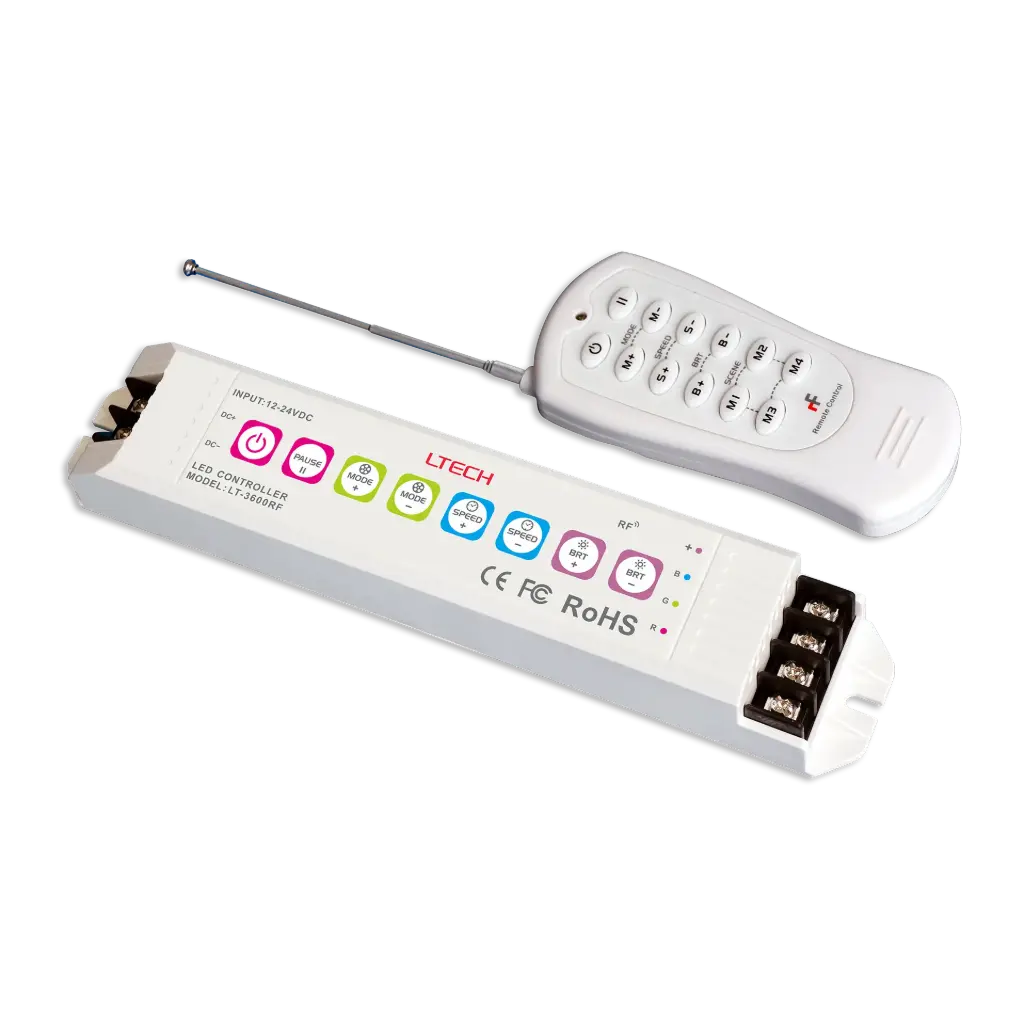

LED RGB Controller
A multi-functional RGB LED controller using advanced PWM control and offering 32 built-in changing modes with smooth, flicker-free effects. Housed in a durable PC shell, it features 8 keys for ON/OFF, PAUSE, mode, speed, and brightness adjustments, and is compatible with an RF remote (up to 100 m). Supporting 12-24V DC input with 3-channel (common anode) output, it’s suitable for all current-limited RGB LEDs, including strips, modules, and SMDs.
- Input Voltage: 12~24Vdc
- Max Current Load: 6A × 3CH
- Max Output Power: 216W/432W (12V/24V)
RF
- Remote Distance: 100m
- Radio Frequency: 433.92MHz
- Remote Output Power: 8mW
- Working Temperature: -30℃~55℃
- Dimensions: L211 × W40 × H30 (mm)
- Weight: 240g
