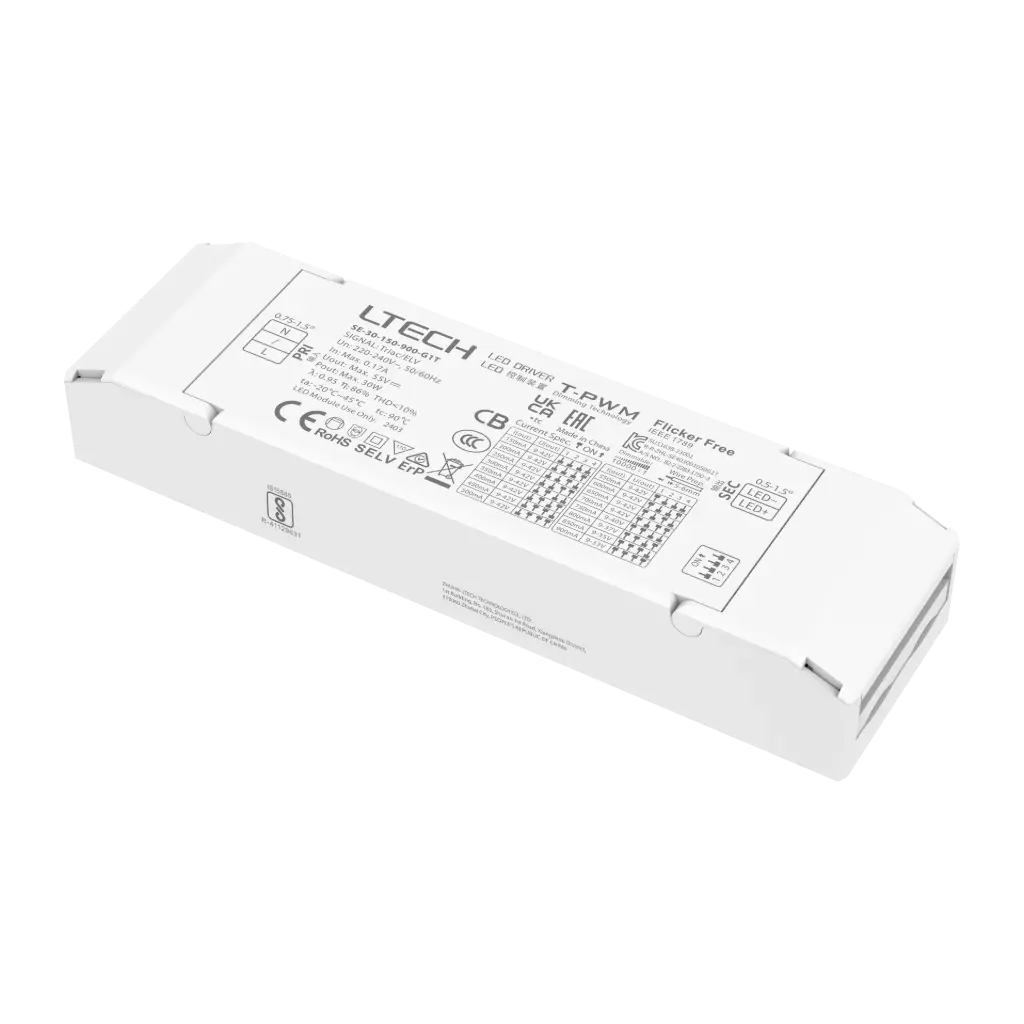

LTECH LTSYS Driver CC TRIAC 1CH 150-900mA 30W - SE-30-150-900-G1T

Intelligent LED Driver (Constant Current)

This compact LED driver features a V0 flame-retardant housing, screwless end cap, and supports Leading edge (Triac) and Trailing edge (ELV) dimming with soft-on and fade-in. T-PWM™ ensures flicker-free dimming from 0.01-100%, with multiple current levels and wide voltage compatibility. Class 2 SELV protection, thermal management, and safeguards against overload and short circuits ensure reliability. Suitable for Class Ⅰ/Ⅱ/Ⅲ fixtures, it offers 50,000 hours of life and a 5-year warranty (Rubycon capacitor).

Input Voltage: 220-240Vac
Output Voltage: 9-42Vdc Max. 55Vdc
Output Current: 150-900mA
Output Power: 1.35W-30W
Working Temperature: ta: -20~45°C tc: 90°C
Dimensions: L142 x W40 x H23 (mm)
Weight (N.W): 163g

IP Rating: IP20

Power: 30W

Input Voltage Domain: AC

Input Voltage: 220-240V

Output Voltage: 9-42V

Output Current: 150-900mA

Channels: 1

Control: TRIAC

Certificates: CCC , CE , KC , RCM , CB , EAC , BIS , ERP , UKCA , RoHS

Dimming Range: 0-100% down to 0.01%

Warranty: 5 Years
