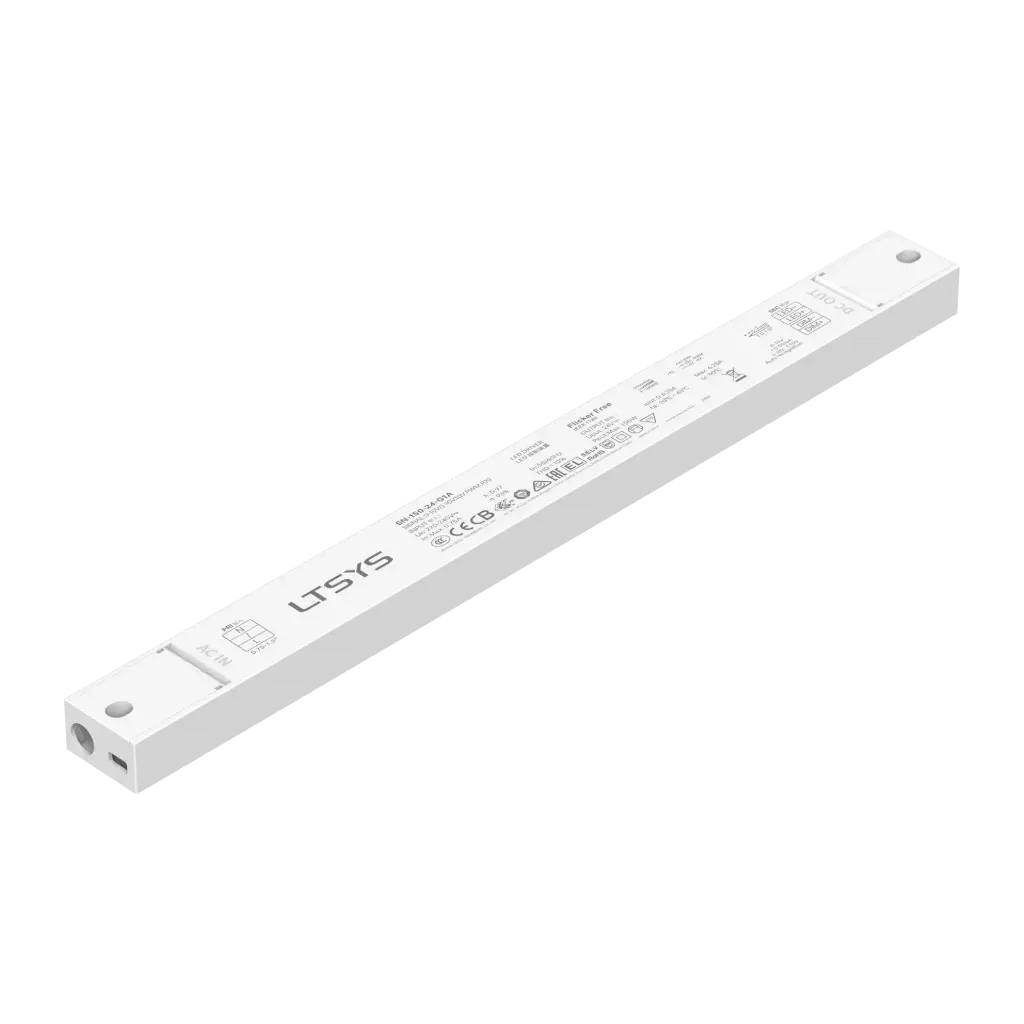

LED Driver (Constant Voltage)
An ultra-thin, integrated clamshell design made from V0 PC flame retardant grade raw. Automatically recognizes 0-10V and 1-10V input signal, with ultra-low consumption of 0-10V ports <0.05 mA. Offers 0-100% flicker-free dimming and high-performance power supply (93% efficiency, PF > 0.97, THD < 10%). Complies with the EU ErP Directive, with no-load and standby power <0.5 W. Features intelligent thermal management and protection against overheat, overload, and short circuits with automatic recovery. Suitable for Class I/II/III indoor light fixtures, including light strips and magnetic track lights. 5-year warranty (Rubycon capacitor).
- Input Voltage: 220-240Vac
- Input Current: Max. 0.75A / 230Vac
- Output Voltage: 24Vdc
- Output Current: Max. 6.25A
- Output Power: Max. 150W
- Working Temperature: ta: -20~45°C tc: 90°C
- Dimensions: L350 × W30 × H18 (mm)
- Weight (N.W.): 211g±10g
