The MINI series LED remotes use 2.4GHz RF wireless transmission with a control range of up to 30m (no interference). When paired with a P5 controller, they support DIM/CT/RGB/RGBW/RGBCW lighting. A single remote can control multiple controllers within range for functions such as ON/OFF, brightness adjustment, color temperature, static RGB colors, dynamic effects, and scene recall.

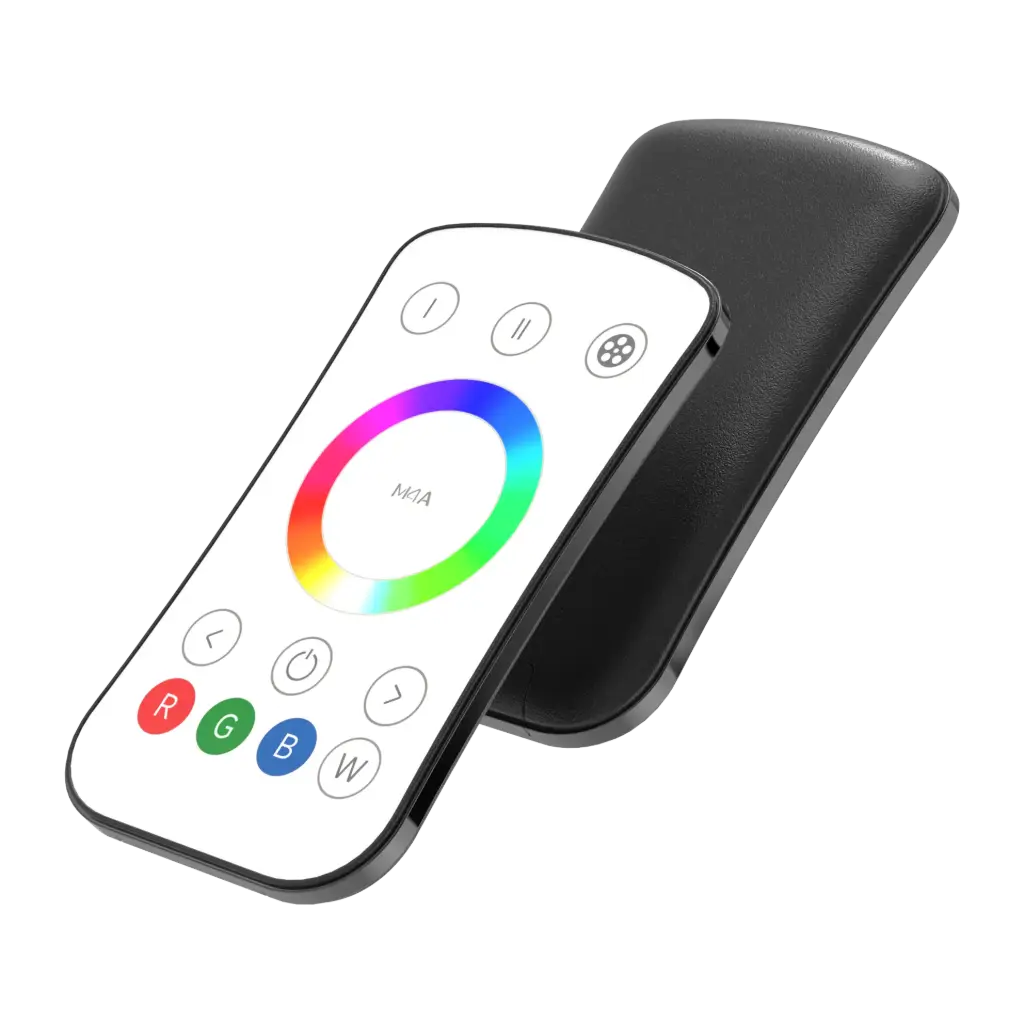

Model: M4A
• Dimming mode: RGBW
• Wireless Protocol: RF 2.4GHz
• Working Voltage: 3V DC (Button battery CR2032x1)
• Standby Current: <2uA
• Distance of Remote: 30M (Under no interference)
• Working Temperature: -30°C~55°C
• Dimensions: L104 x W58 x H9 (mm) (Remote), L108 x W63 x H14 (mm) (Remote + Holder)
Model: P3
• Input signal: RF2.4GHz
• Input voltage: 12-48Vdc
• Output voltage: 12-48Vdc
• Load current: Max.15A
• Load power: 180W@12V, 360W@24V, 432W@36V, 432W@48V
• Protection: short circuit, over temperature, over current protection, anti-reverse connection protection
• • • Operating temperature: -25°C ~50°C
• 3-channel constant voltage output, can control dimming, color temperature, RGB lamps
• Can be used with RF 2.4GHz Mini series remote control
