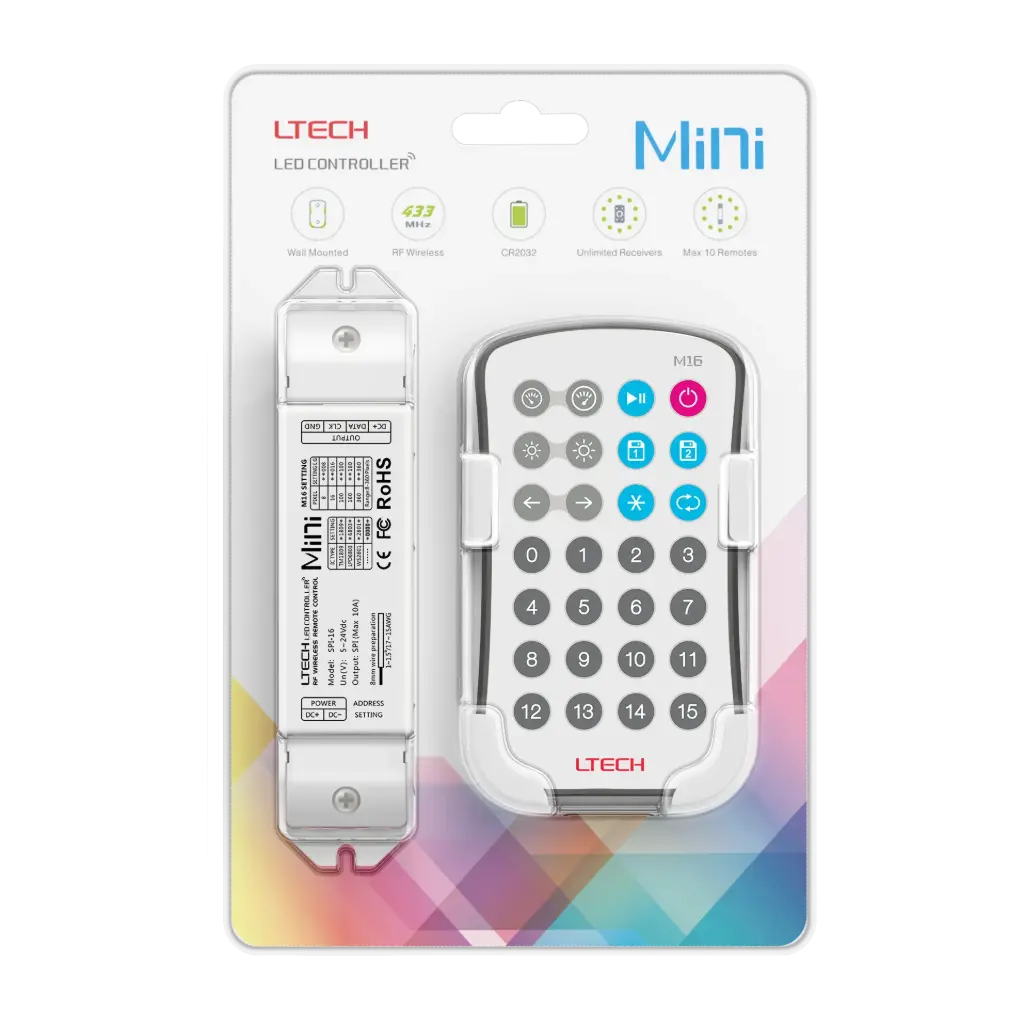

LTECH Mini RF remote + receiver SPI - SPI-16S+M16S


SPI-16S is a compact Mini LED pixel controller paired with the M16S RF remote, capable of controlling almost all IC-driven LED lights. It features built-in dynamic effects and customizable scene modes. With the M16S remote, users can select lighting effects, set pixel quantity, adjust speed and brightness, change direction, modify RGB sequence, select IC type, and store or play custom scenes.

Controller Model: SPI-16S
  • Power Input: 5~24Vdc
  • Output: SPI (Max 10A)
  • Wireless signal: 2.4GHz
  • Working temperature: -30℃~55℃
  • Pixel range: 8~1020 pixels
  • Dimensions: L135 × W30 × H20 (mm)
  • Weight (N.W): 52g
Remote Model: M16S
  • Working Voltage: 3Vdc (battery CR2032)
  • Wireless Signal: RF 2.4GHz
  • Changing Mode: 16 kinds
  • Working Temperature: -30°C~55°C
  • Dimensions: L104 x W58 x H9 (mm)
  • Weight (N.W.): 42g
€ 0.00 € 0.00

  • Input Voltage
  • Input Voltage Domain
  • Curent load max
  • Weight
  • Dimensions
  • Working Temperature

Internal Reference: 2266910
HS Code: 85269200

Input Voltage
5-24 V
Input Voltage Domain
DC
Curent load max
10A
Working Temperature
-30°C-55°C
Weight
52g
Dimensions
L135xW30xH20(mm)
PDF
SPI-16S+M16S User Manual.pdf
1.0 MB
Download
