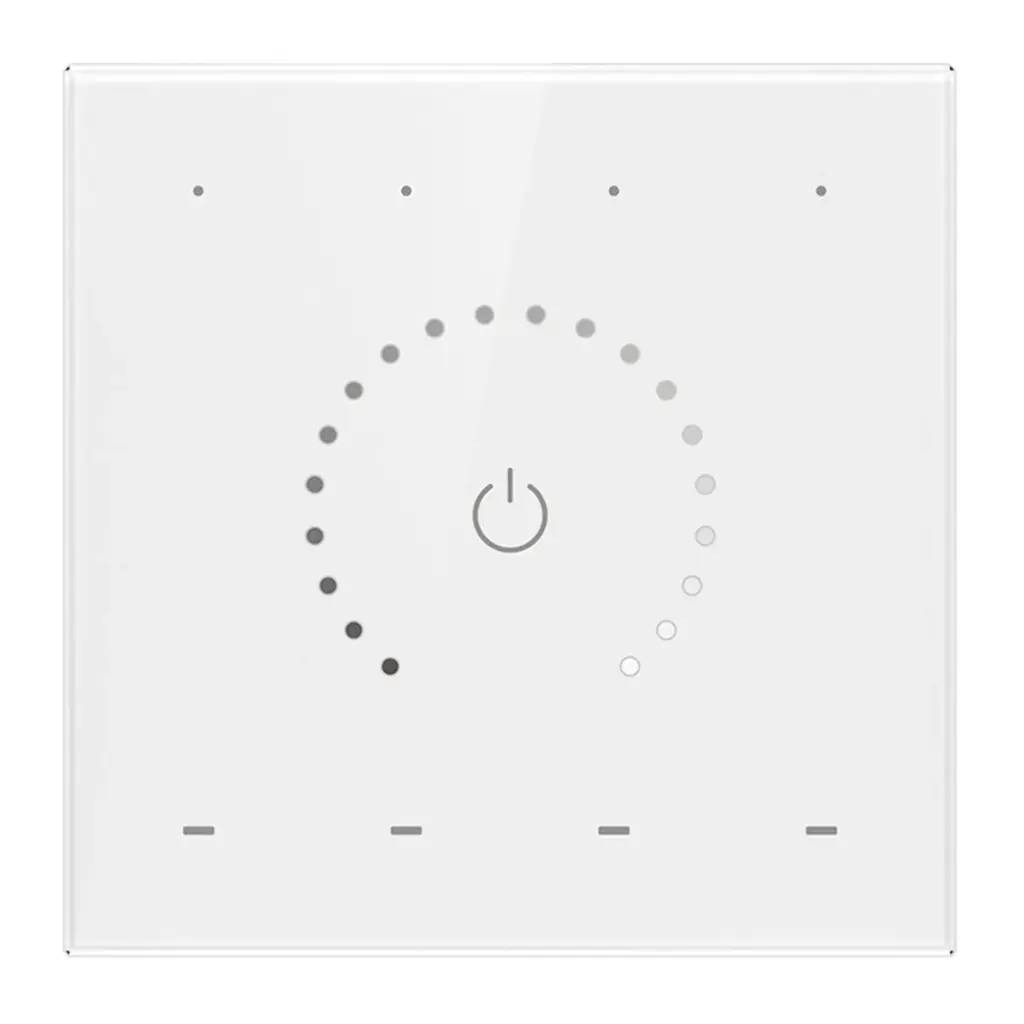

LTECH Bluetooth touch panel 4 zones - EB1

EB Series Touch Panel

This controller feature's function area keys that act as brightness shortcuts in single-zone mode or zone selectors in multi-zone mode. The DIM touch ring allows smooth brightness adjustment, while the main switch turns all lights on or off. A scene key triggers bound scenes via the L-Home app, supporting both local and DALI scenes.

Control Type: DIM
Compatible Remote Control: B1
Output Voltage: 100-240V
Output Signal: DMX512
Wireless Type: Bluetooth 5.2 SIG Mesh
Compatible Driver: B5-3A
Working Temperature: -25°C~50°C

Control
- DMX
Input Voltage
- 100-240 V
Input Voltage Domain
- AC
Output Voltage
- 100-240 V
Weight
- 155g
Dimensions
- L86xW86xH36(mm)
Package Size
- L113xW112xH50(mm)
Working Temperature
- -25°C-50°C

Internal Reference: 2261101
HS Code: 85371098

General

4 specifications

Control

Input Voltage

100-240 V

Input Voltage Domain

Output Voltage

100-240 V

Operating

1 specification

Working Temperature

-25°C-50°C

Physical

3 specifications

Weight

Dimensions

L86xW86xH36(mm)

Package Size

L113xW112xH50(mm)

All Files

1 file

EB1 User Manual

1.7 MB

Download
