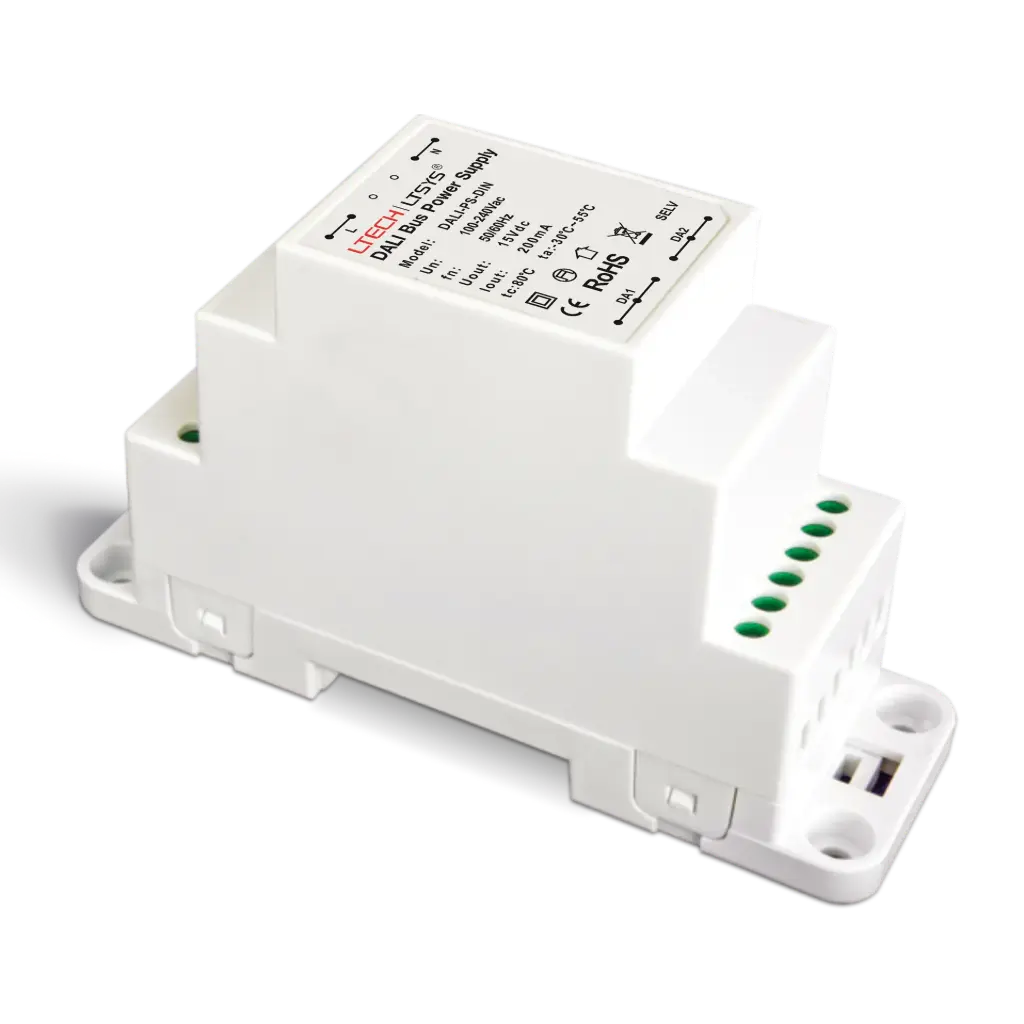

LTECH DALI Bus Power Supply Dinrail - DALI-PS-DIN

The LTECH DALI-PS-DIN powers your DALI bus from a standard 100-240 Vac supply. It delivers 15 Vdc at 220 mA to the DALI line, so drivers, switch panels and controllers on the bus can communicate. Mounts on a DIN rail next to your DALI drivers.

Built for reliable DALI installations

Protected: enters current limit mode on short circuit and shuts down on overheating. Both recover automatically.
Safe: Class 2 power supply, SELV compliant, full protective plastic housing.
Quiet and cool: natural air cooling, no fan.
Long life: Rubycon capacitor, 5-year warranty.

Maximum Output Current
- 0.22 A
Input Voltage
- AC (100-240 V)
Input Voltage Domain
- AC
Output Voltage
- 15 V
Package Size
- L114xW37xH70(mm)
Output Power
- 3.3 W
Weight (g)
- 115g
Working Temperature
- -30°C to 55°C
Dimensions (LxWxH) (mm)
- L112xW35xH67(mm)

Internal Reference: 2268600
Barcode: 6971379110925
Internal Reference: 2268600
HS Code: 85371098

General

5 specifications

Input Voltage

AC (100-240 V)

Input Voltage Domain

Output Voltage

15 V

Output Power

3.3 W

Maximum Output Current

0.22 A

Operating

1 specification

Working Temperature

-30°C to 55°C

Physical

3 specifications

Weight (g)

115g

Dimensions (LxWxH) (mm)

L112xW35xH67(mm)

Package Size

L114xW37xH70(mm)

User Manuals

1 file

PDF

DALI-PS-DIN User Manual

2.3 MB

Download
