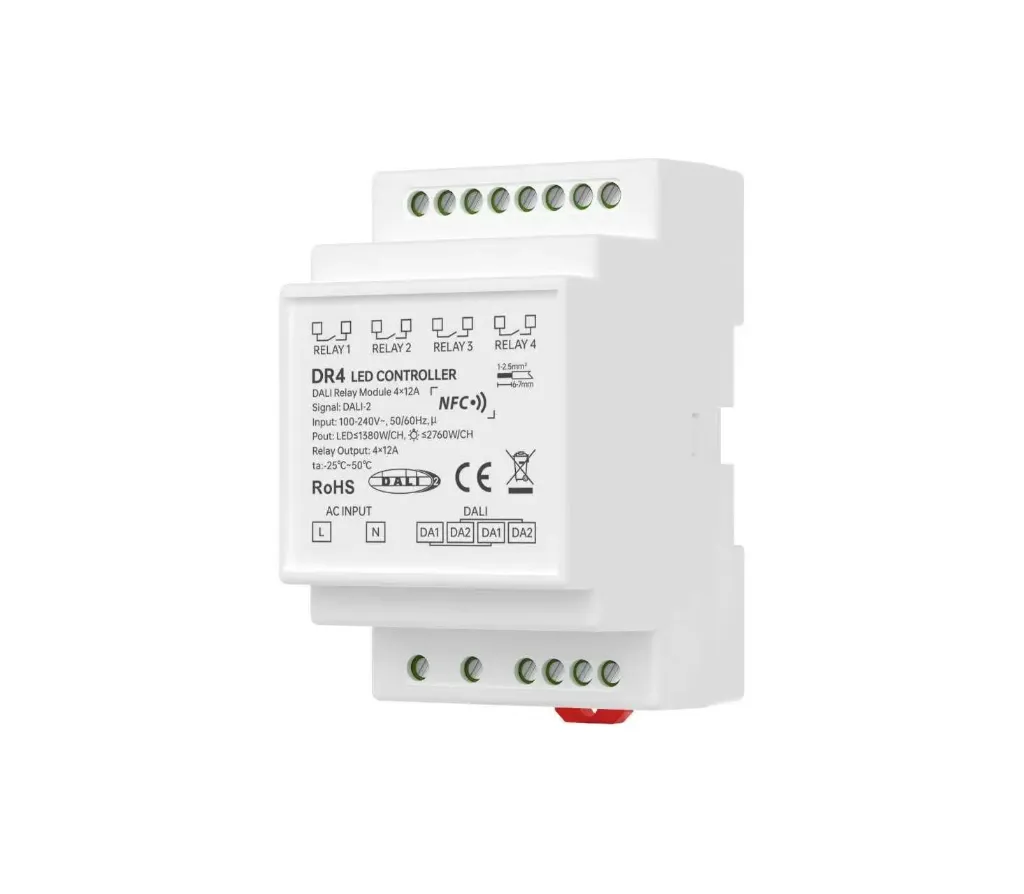

LTECH DALI Relay module - DR4

This DALI-2 certified relay unit complies with IEC62386-101, 102, and 208 standards. Connected to the DALI bus with a single address, it supports grouping and scene control with a DALI master. It switches LED lights on/off with a maximum of 12A per channel, operates over a wide supply voltage, and can be mounted on a DIN rail or with screws, making it ideal for project applications.

Control
- DALI
Channels
- 4
Curent load max
- 12A
Input Voltage
- AC (100-240 V)
Input Voltage Domain
- AC
Output Voltage
- 100-240 V
Weight (g)
- 46g
Working Temperature
- -25°C to 50°C

Internal Reference: 2264701
Barcode: 6971379116644
Internal Reference: 2264701
HS Code: 85371098

General

6 specifications

Control

Channels

Input Voltage

AC (100-240 V)

Input Voltage Domain

Output Voltage

100-240 V

Curent load max

Operating

1 specification

Working Temperature

-25°C to 50°C

Physical

1 specification

Weight (g)

User Manuals

1 file

DR4.pdf

1.2 MB

Download
