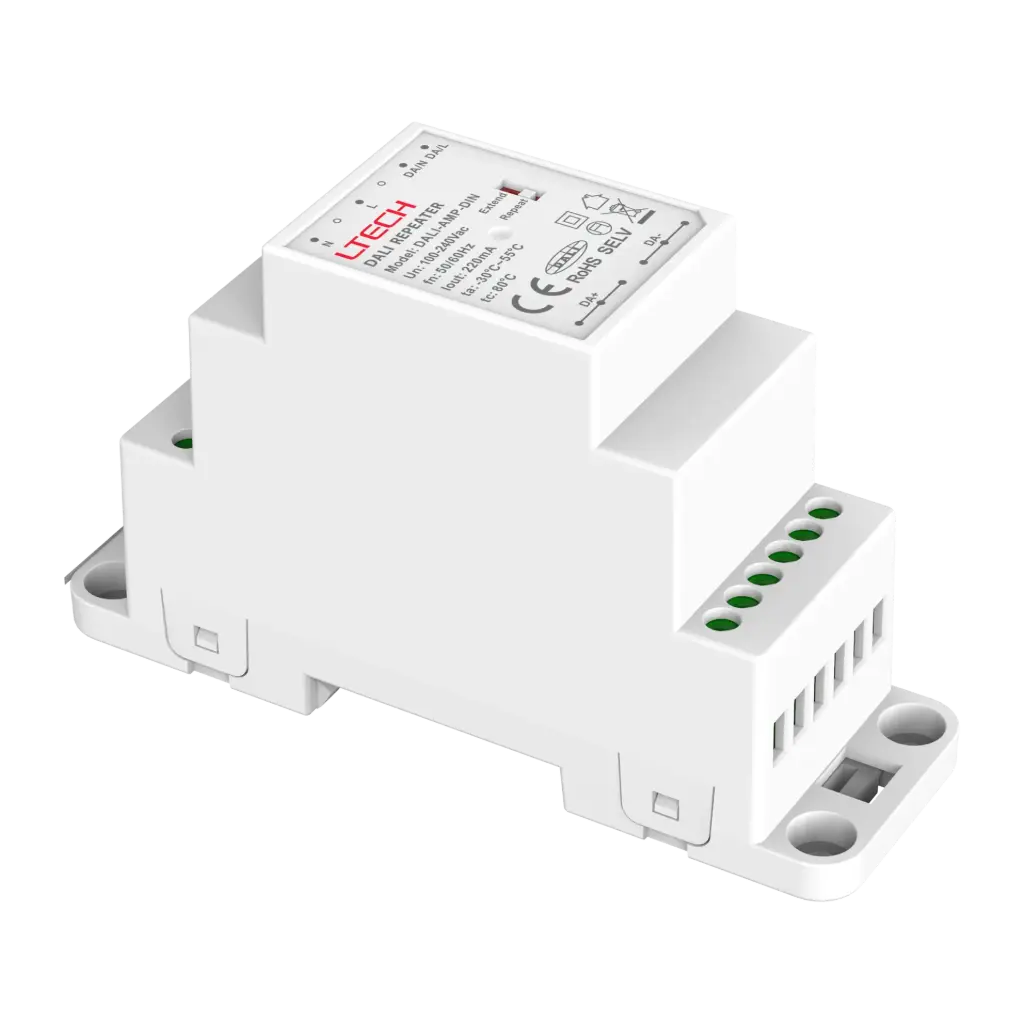

LTECH DALI repeater / amplifier Dinrail - DALI-AMP-DIN

The LTECH DALI-AMP-DIN is a DALI repeater for DIN rail or screw mounting. It amplifies a weak DALI signal over long cable runs and extends your DALI bus to more fixtures than a single line allows. Set relay or extended mode with a DIP switch.

Two modes, one repeater

Relay mode: amplifies the DALI signal and reduces distortion from line loss and interference. Extends the maximum DALI line length from 300 m to 600 m.

Extended mode: each repeater drives up to 64 DALI fixtures. It takes one address on the DALI bus, and the bus supports up to 64 repeaters: up to 64 × 64 fixtures. The output also serves as DALI bus power supply (max. 220 mA).

Push DIM control

In extended mode, connect a standard wall push button to the input. Short press switches on and off. Long press dims from 0 to 100%, reversing direction with every other long press. All connected DALI drivers dim in sync.
