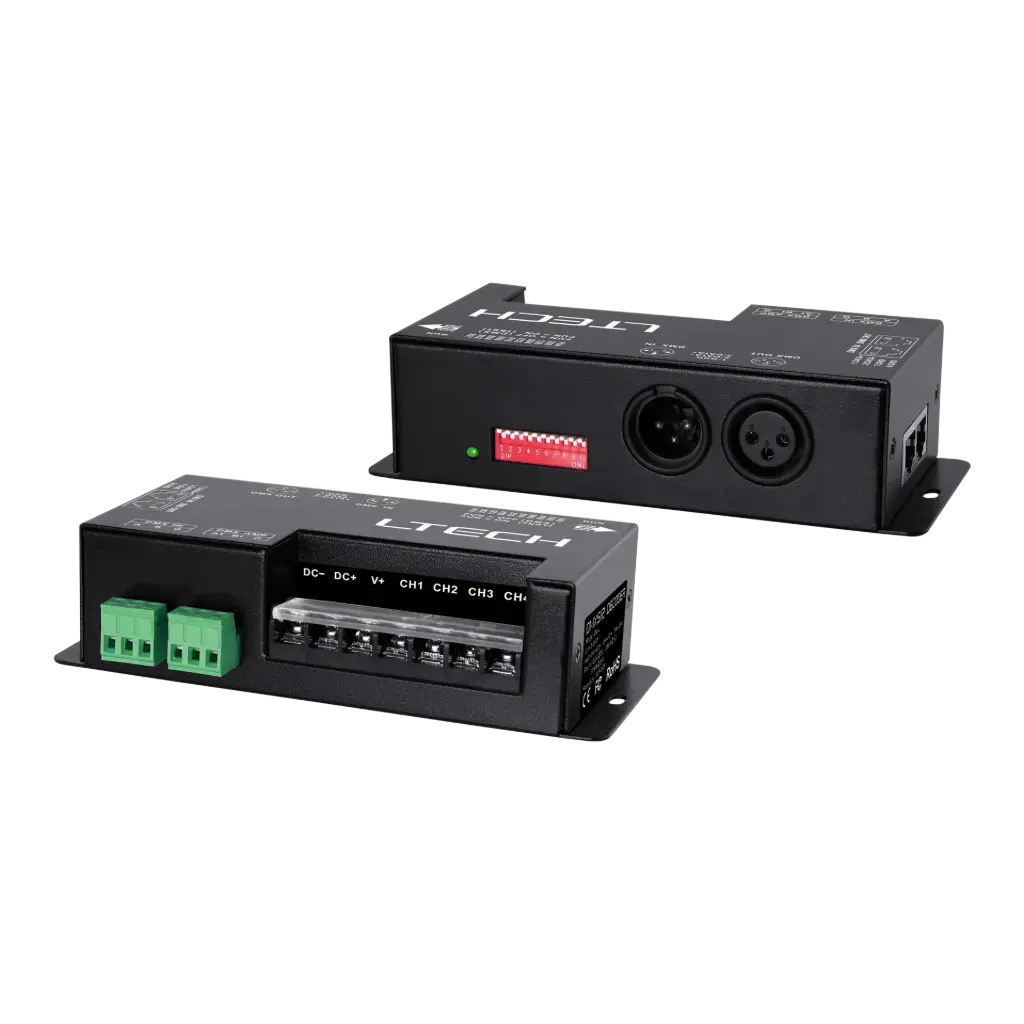

LTECH DMX LED driver CV 3x8A / 4x6A - D4-L


The D4-L supports bi-directional DMX512 communication via the standard RDM protocol, allowing remote reading and writing of DMX addresses with an RDM-compatible master controller. Equipped with DMX 3-pin XLR, RJ45, and green terminal interfaces, it provides 0-100% dimming and various lighting effects, compatible with single-color, bi-color, RGB, and RGBW LED lamps.

  • Input Signal: DMX512, RDM
  • Input Voltage: 5~24Vdc
  • Current Load: 6A x 4CH 8A x 3CH
  • Output Power: 120W@5V 288W@12V 576W@24V
  • DMX512 Socket: 3-pin XLR, RJ45, Green Terminal
  • Working Temperature: -25°C~55°C
  • Dimensions: L156 x W78 x H40 (mm)
  • Weight: 445g
€ 0.00 € 0.00


Internal Reference: 2285301

  • D4-L User Manual
D4-L User Manual
