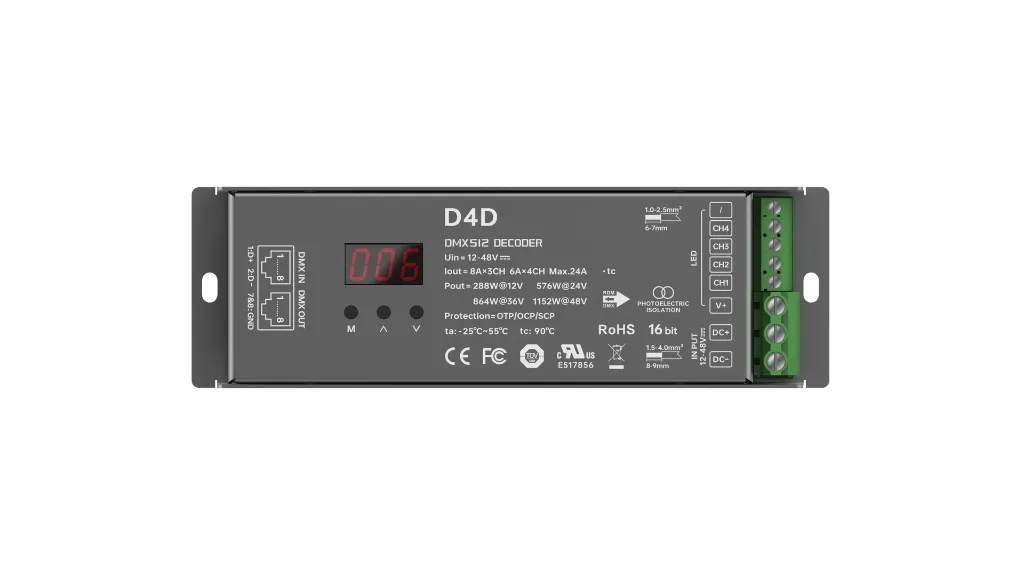

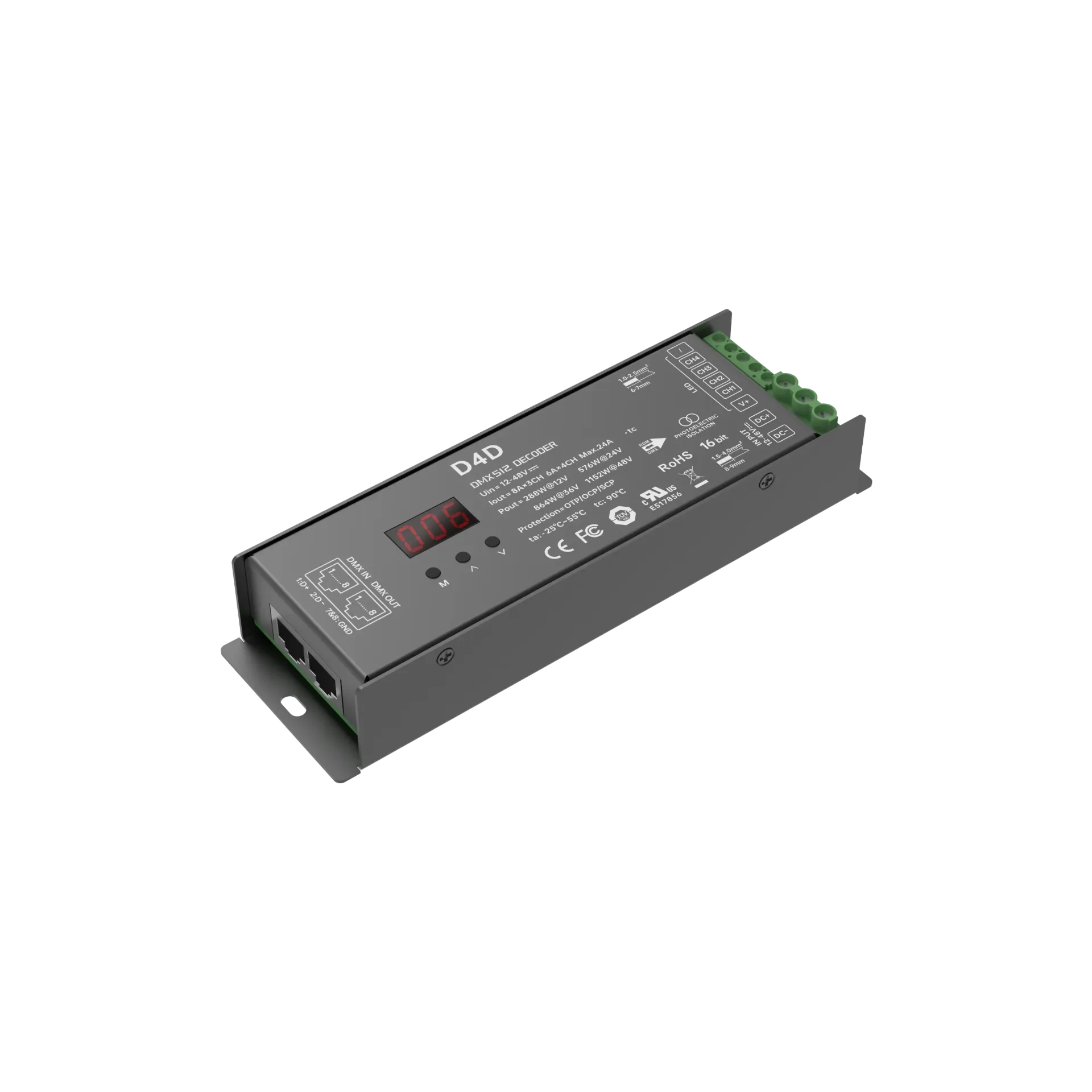

LTECH DMX LED driver CV 3x8A / 4x6A RJ45 - D4D

The LTECH D4D is a high-performance 4-channel DMX/RDM decoder designed for precise control of constant voltage LED lighting, including DIM, Color Temperature (CT), RGB, and RGBW modes. Featuring standard RJ45 DMX interfaces, it allows for seamless integration into professional lighting setups.

Key Features:

• Versatile Operation: Switch easily between DMX decoding and DMX master control modes to suit your project needs.

• Flexible Configuration: Adjust settings via the built-in digital display and buttons, or remotely using an RDM master controller or mobile app.

• High Precision Dimming: Supports 8-bit or 16-bit grayscale with optional linear or logarithmic dimming curves for smooth, flicker-free transitions.

• Customizable PWM: Choose from multiple PWM frequency options, ranging from 300Hz up to 18000Hz.

• Built-in Effects: Includes 10 preset lighting effects, 8 dynamic speed levels, and 255 brightness levels in control mode.

• Safety & Reliability: Equipped with automatic recovery protection against short-circuits, over-temperature, over-current, and reverse polarity.
