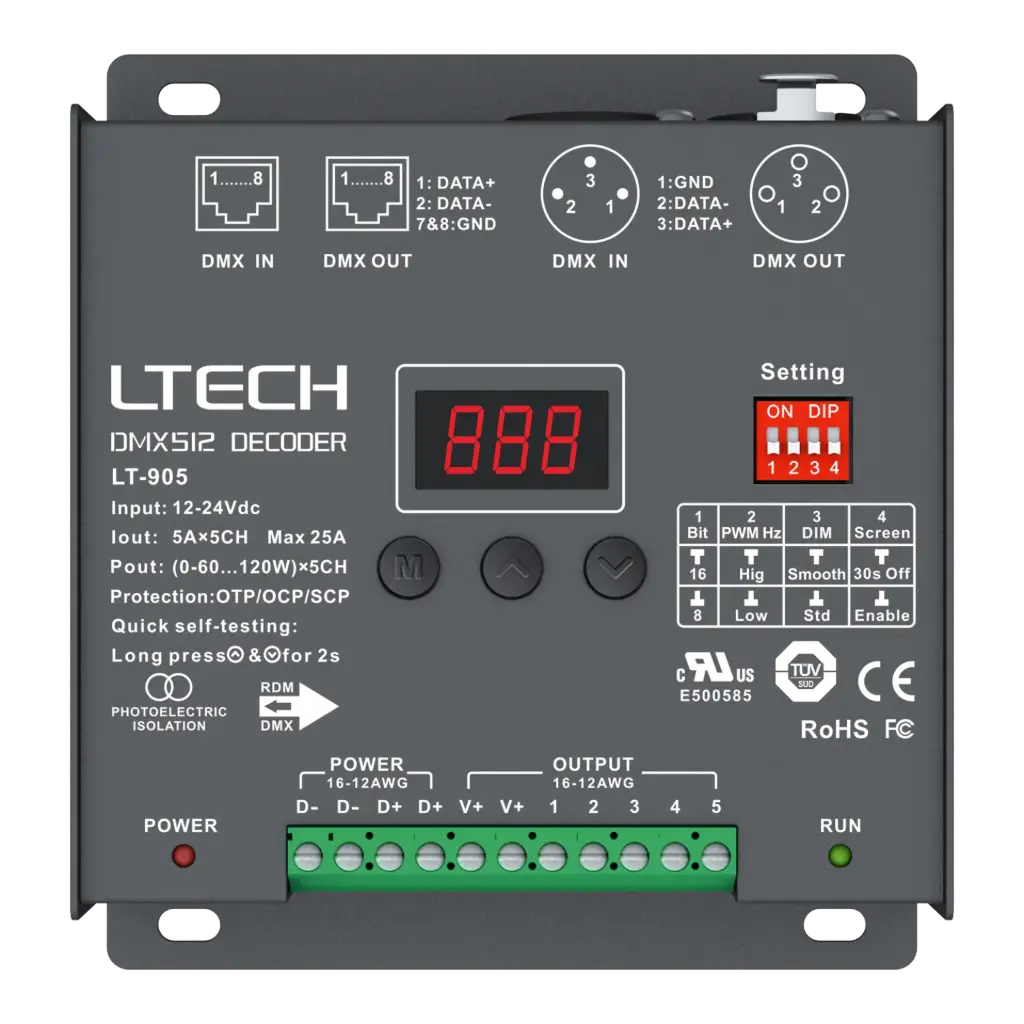

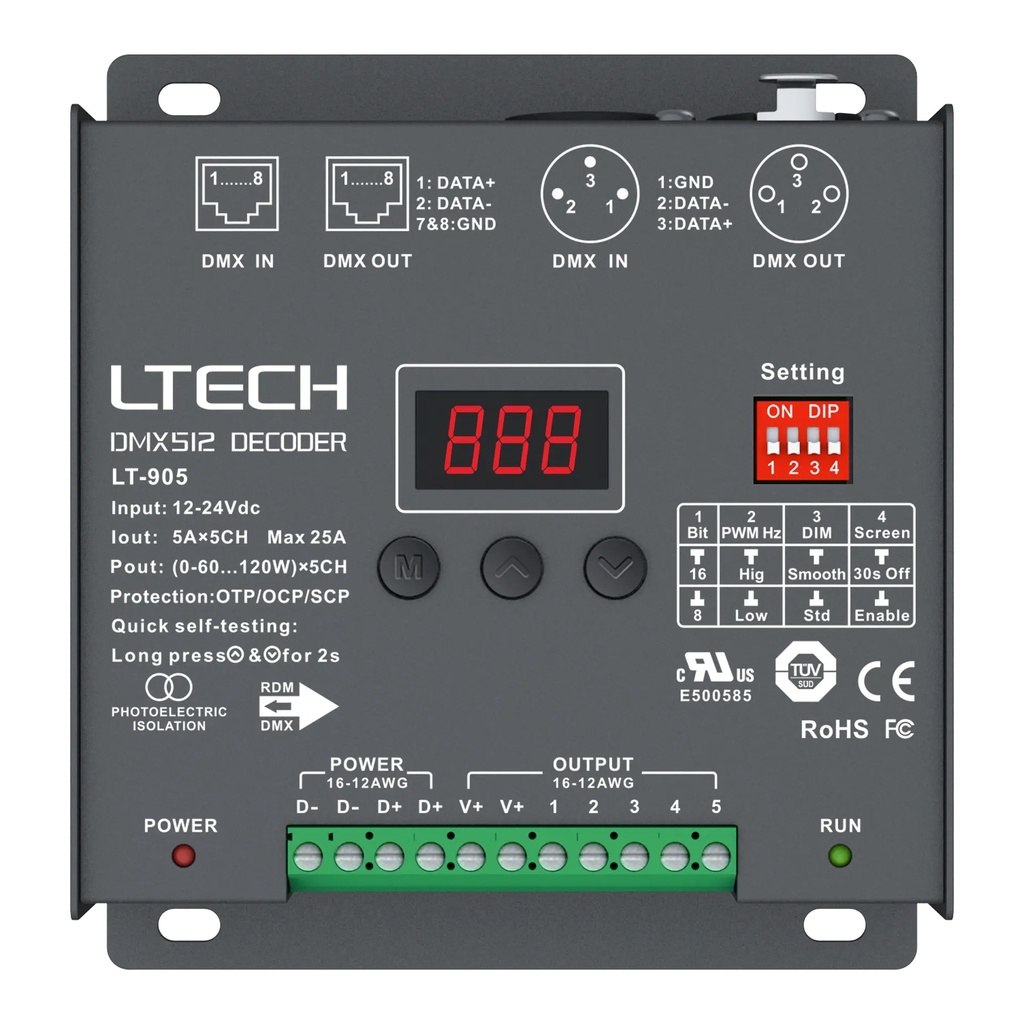

LTECH DMX/RDM LED driver CV 5x5A - LT-905

Features five output channels with up to 5A per channel and a total output power of 600W. It offers easy operation through a digital display with touch buttons and supports 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for stable, interference-resistant signal transmission. With RDM remote management, users can handle DMX address setup, parameter configuration, and device identification via an RDM master console. Additional features include firmware upgrade support, power-on state management, fast self-testing, selectable high or low PWM frequency, and 8-bit or 16-bit grayscale options. Built-in protection against short circuit, overcurrent, and overheating with fault warnings ensures reliable and safe operation.

• Input Voltage: 12~24Vdc
• Current Load: 5A x 5CH Max. 25A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L122 x W110 x H37 (mm)
• Weight: 550g
