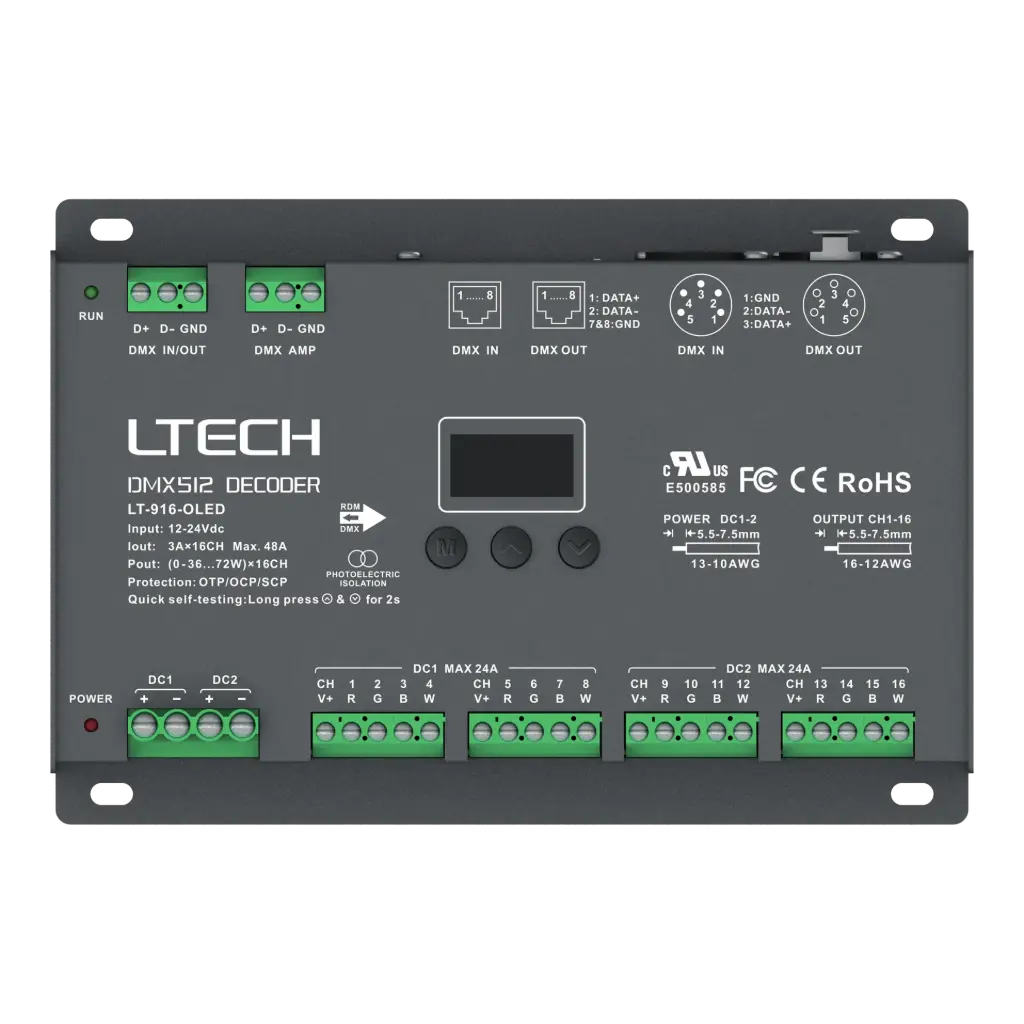

16-channel high-power controller with up to 3A per channel (1152W total). Features OLED screen with touch buttons, RDM remote management, and firmware upgrade support. Offers four modes (DIM, CT, RGB, RGBW), 8/16-bit gray levels, and selectable dimming curves (standard, linear, LOG, or custom). Supports 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification. Built-in protections, fault warnings, and reliable performance ensure safe operation.
• Input signal: DMX512/RDM
• Input voltage: 12~24V DC
• Current load: 3A × 16CH Max. 48A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L180 x W122 x H39 (mm)
• Weight: 730g
