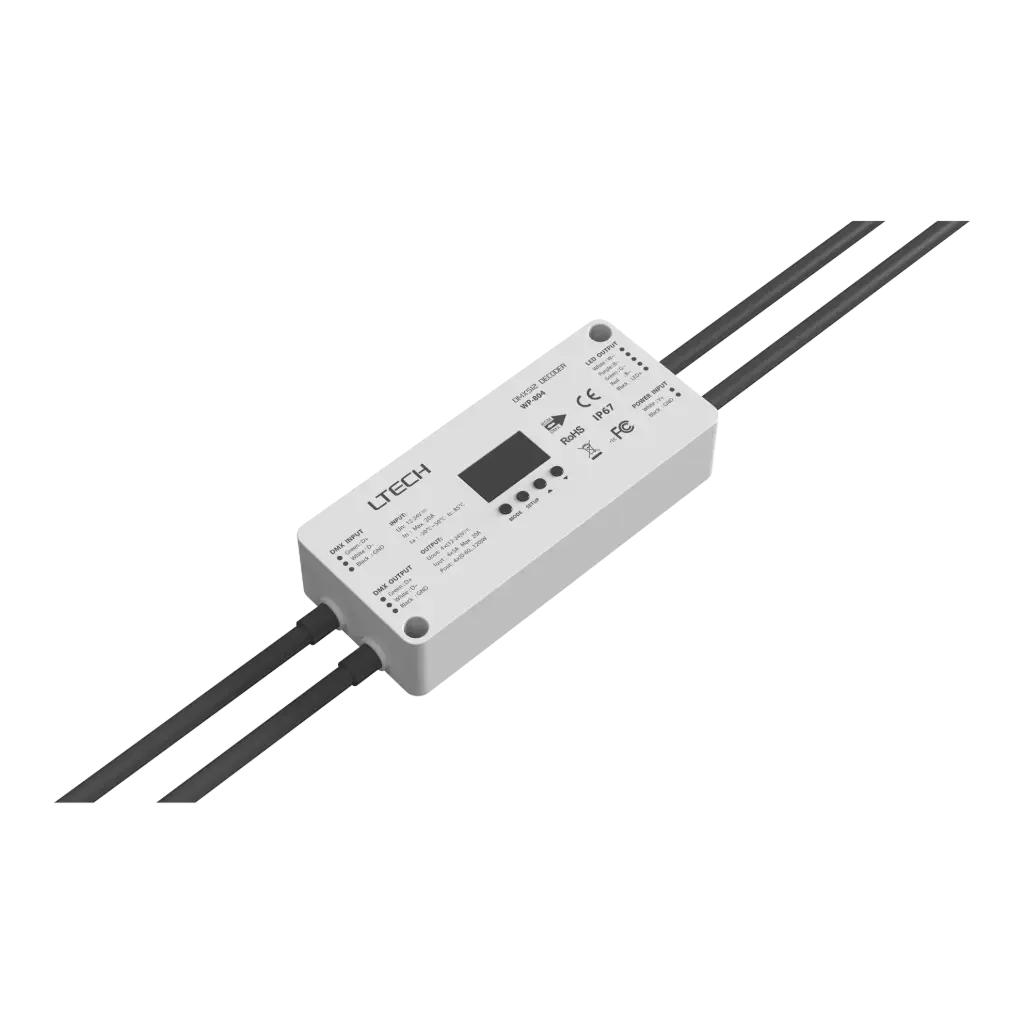

LTECH DMX/RDM LED driver CV 4x5A IP67 - WP-804


An IP67 waterproof DMX/RDM decoder with bi-directional DMX512/RDM communication, enabling remote DMX address management (RDM-compliant master required). It has 4 output channels, each up to 5A, and supports DIM, CT, RGB, and RGBW constant voltage lights with 0-100% dimming and customizable lighting effects. Operable in DMX or customized mode, addresses are easily set via the digital display and buttons, making it ideal for outdoor and damp environments.

€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Version
  • Dimming Range
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Add to cart
Contact Us

Internal Reference: 2278040
HS Code: 85044031

01
General
10 specifications
Control
DMX
Input Voltage
12-24 V
Input Voltage Domain
DC
Channels
4
Output Voltage
12-24 V
Output Power Range
480
Current load/ ch
5A
Curent load max
20A
Version
DMX/RDM
Dimming Range
0-100%
02
Operating
1 specification
Working Temperature
-20°C to 50°C
03
Physical
3 specifications
Weight
690g
Dimensions
L164×W70×H36(mm)
Package Size
L193×W127×H41(mm)
01
All Files
1 file
PDF
WP-804 User Manual.pdf
2.7 MB
Download
