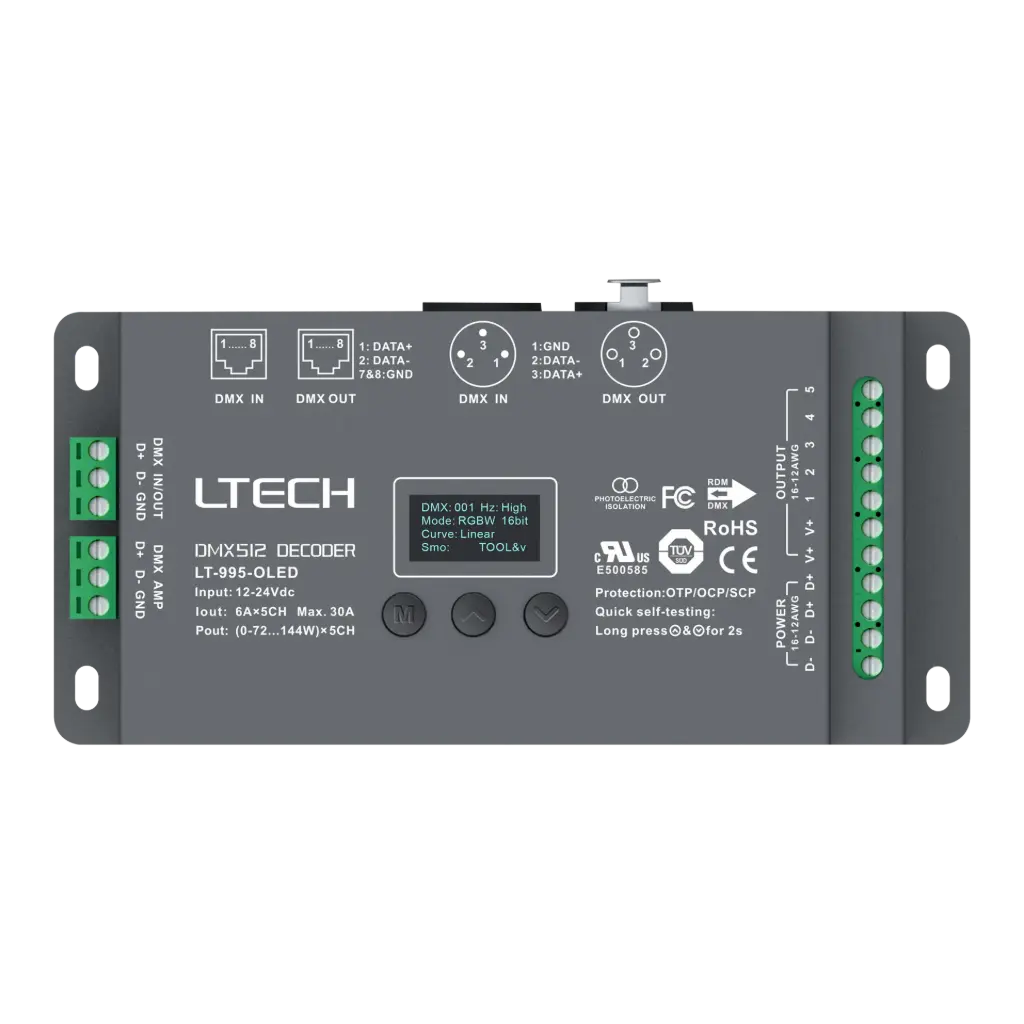

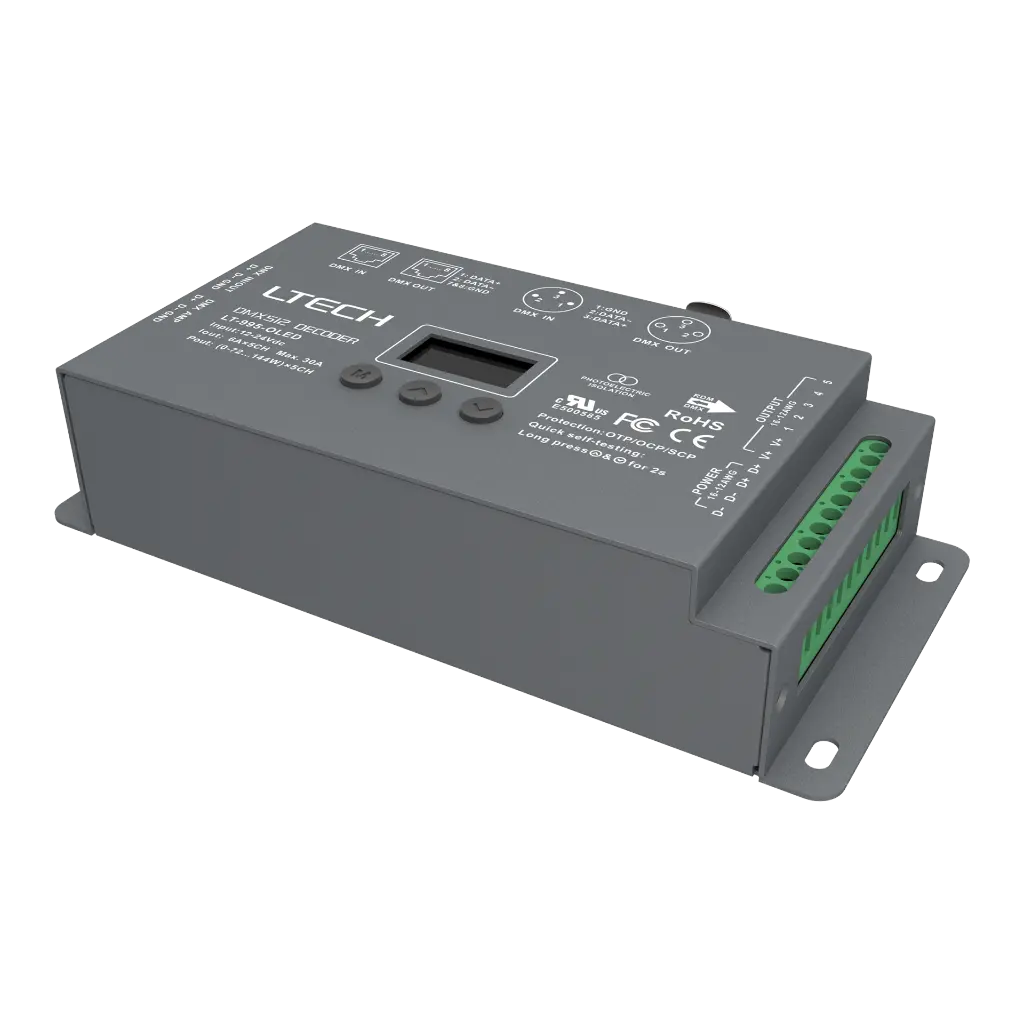

5-channel controller with up to 6A per channel (720W total). Features OLED screen with touch buttons, RDM remote management, and firmware upgrade support. Offers 5 operating modes (Dim, CT, RGB, RGBW, RGBWY), 8/16-bit gray levels, and selectable dimming curves (standard, linear, LOG, or custom). Supports 3 DMX ports with photoelectric isolation and green terminal signal amplification. Includes power-on state management, fast self-testing, and full protection with fault warnings.
• Input signal: DMX512/RDM
• Input voltage: 12~24V DC
• Current load: 6A × 5CH Max. 30A
• Dimming Curve: 0.1~9.9
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L169 x W80 x H39 (mm)
• Weight: 550g
