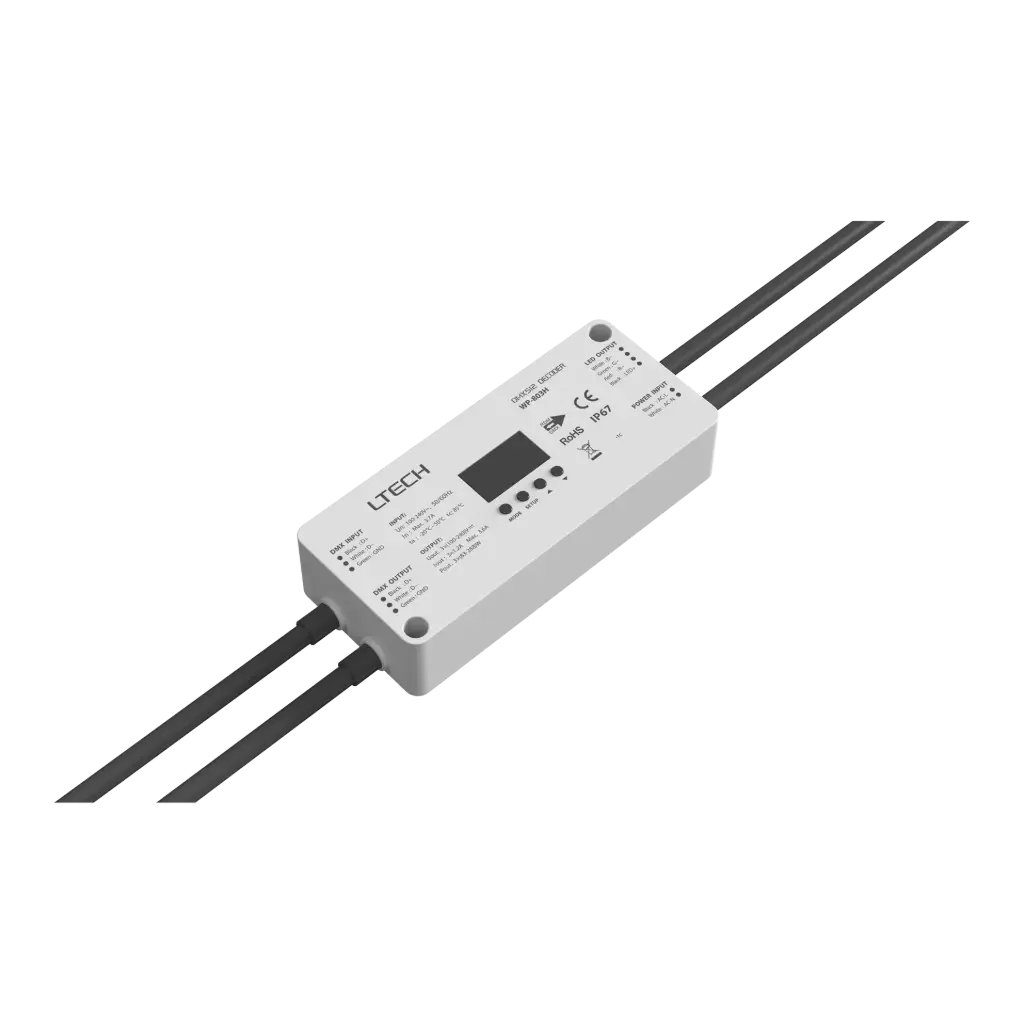

LTECH DMX/RDM LED driver high voltage AC IP67 3ch - WP-803H


A waterproof DMX decoder supporting DMX512 and RDM bi-directional communication, allowing remote reading and writing of DMX addresses when used with an RDM-compatible master. It features 3 output channels with up to 1.2A per channel and supports DIM, tunable white, and RGB constant-voltage lighting with smooth 0-100% dimming and dynamic effects. The unit operates in both standard DMX and customized modes, offers simple address setup via digital display and buttons, and its IP67-rated housing makes it suitable for outdoor and damp environments.

€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Version
  • Dimming Range
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Add to cart
Contact Us

Internal Reference: 2278030
HS Code: 85371098

01
General
10 specifications
Control
DMX
Input Voltage
100-240 V
Input Voltage Domain
AC
Channels
3
Output Voltage
100-240 V
Output Power Range
864 W
Current load/ ch
1.2A
Curent load max
3.6A
Version
DMX/RDM
Dimming Range
0-100%
02
Operating
1 specification
Working Temperature
-20°C to 50°C
03
Physical
3 specifications
Weight
670g
Dimensions
L164×W70×H36(mm)
Package Size
L193×W127×H41(mm)
01
All Files
1 file
PDF
WP-803H User Manual.pdf
1.5 MB
Download
