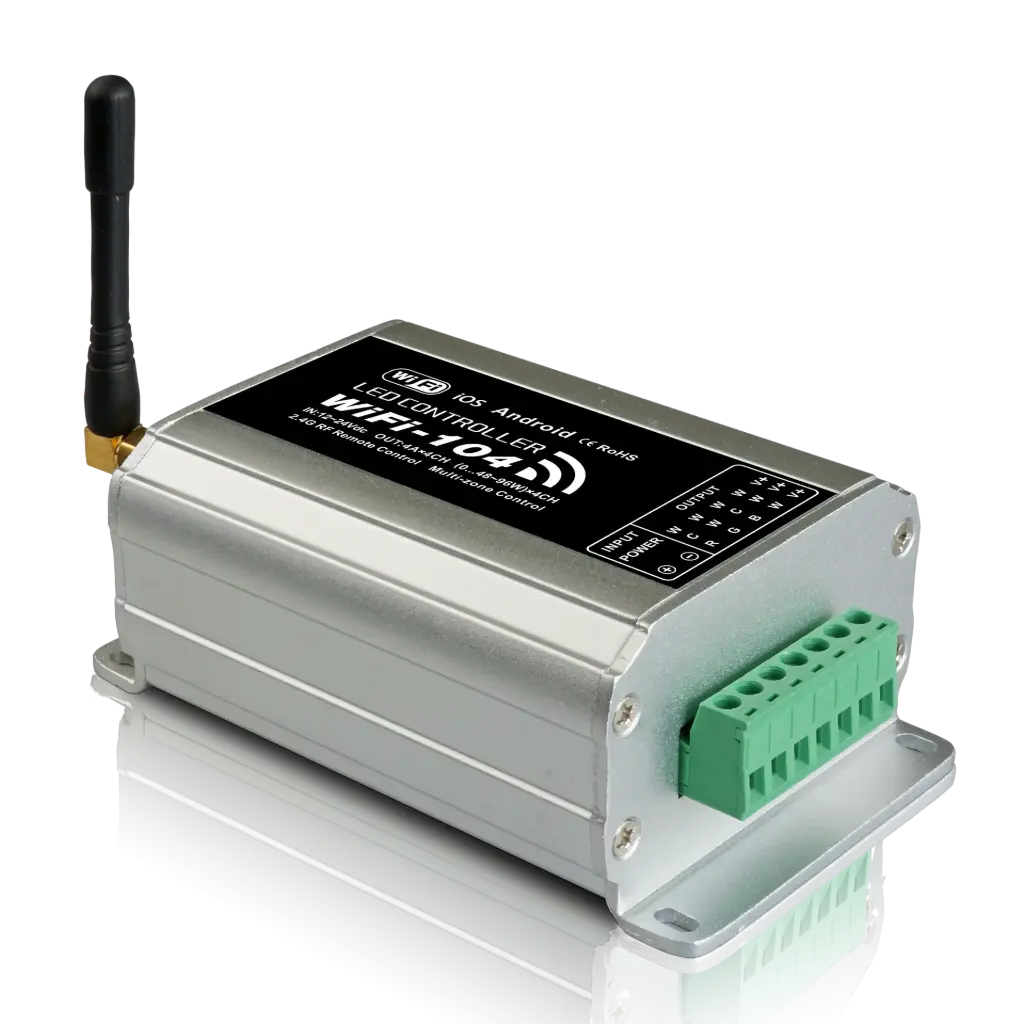

LTECH Gateway with remote - WIFI-104+M12

Name: LTECH Gateway with remote - WIFI-104+M12
Availability: InStock

WIFI LED Controller

A smart WiFi lighting control system that allows you to manage various LED lighting products using our iOS or Android app. The system consists of the app and the WiFi controller, providing seamless control via WiFi. It supports 4-in-1 operation - dimming (DIM), color temperature adjustment (CT), RGB, and RGBW along with control for up to 12 zones. The system can be connected directly to your device or through a router for more flexible network setups.

Controller Model: WiFi-104

Input Voltage: 12V~24Vdc
Max Current Load: 4A x 4CH Max 16A
Control Distance: 100m (Distance of cross-eyed)
Working Temperature: -30℃55℃
Dimensions: L128 × W73 × H45 (mm)
Weight (G.W.): 390g

Remote Model: M12

Working Voltage: 3Vdc (Button battery CR2032)
Transmitting Frequency: 2.4GHz
Dimensions: L106 × W60 × H9 (mm)
Weight (G.W): 42g
