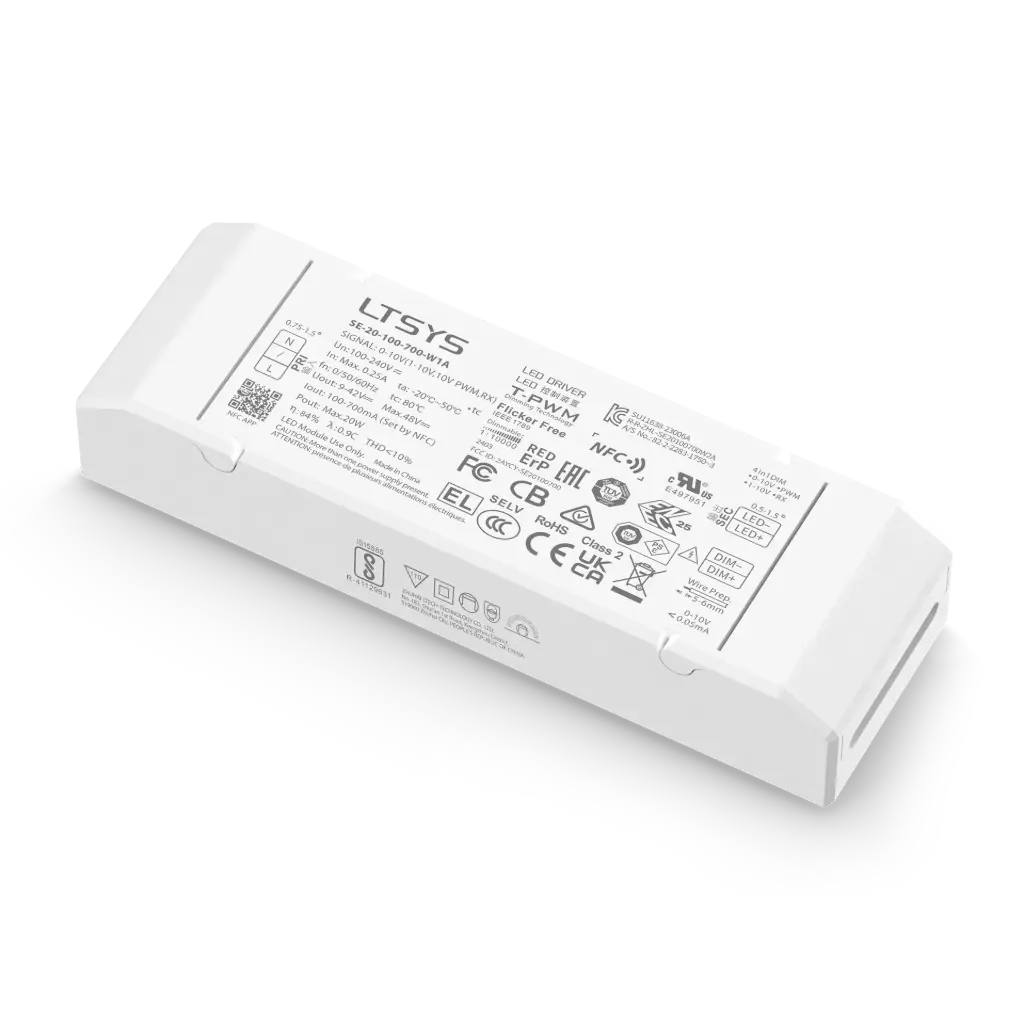

LTECH LTSYS Driver CC 0-10V 1CH 100-700mA 20W - SE-20-100-700-W1A


Intelligent LED Driver (Constant Current)
Ultra-small, thin, and lightweight with a screwless end cap, this driver allows output current adjustment in 1 mA steps. Soft-on and fade-in dimming enhance visual comfort, while T-PWM™ super deep dimming reaches 0.01%. The entire dimming process is flicker-free with high-frequency exemption, and the output defaults to 0 V when no load is detected to protect LEDs.

€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2833120
HS Code: 85044031

General
Input Voltage Domain AC
Output Current 100-700mA
Channels 1
Control 0-10V
Output Power Range 20 W
Input Voltage 100-240 V
Output Voltage 9-42 V
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , TUV , FCC , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , ERP , PSE , RoHS
Warranty 5 Years(Rubycon capacitor)
  • SE-20-100-700-W1A User Manual.pdf
