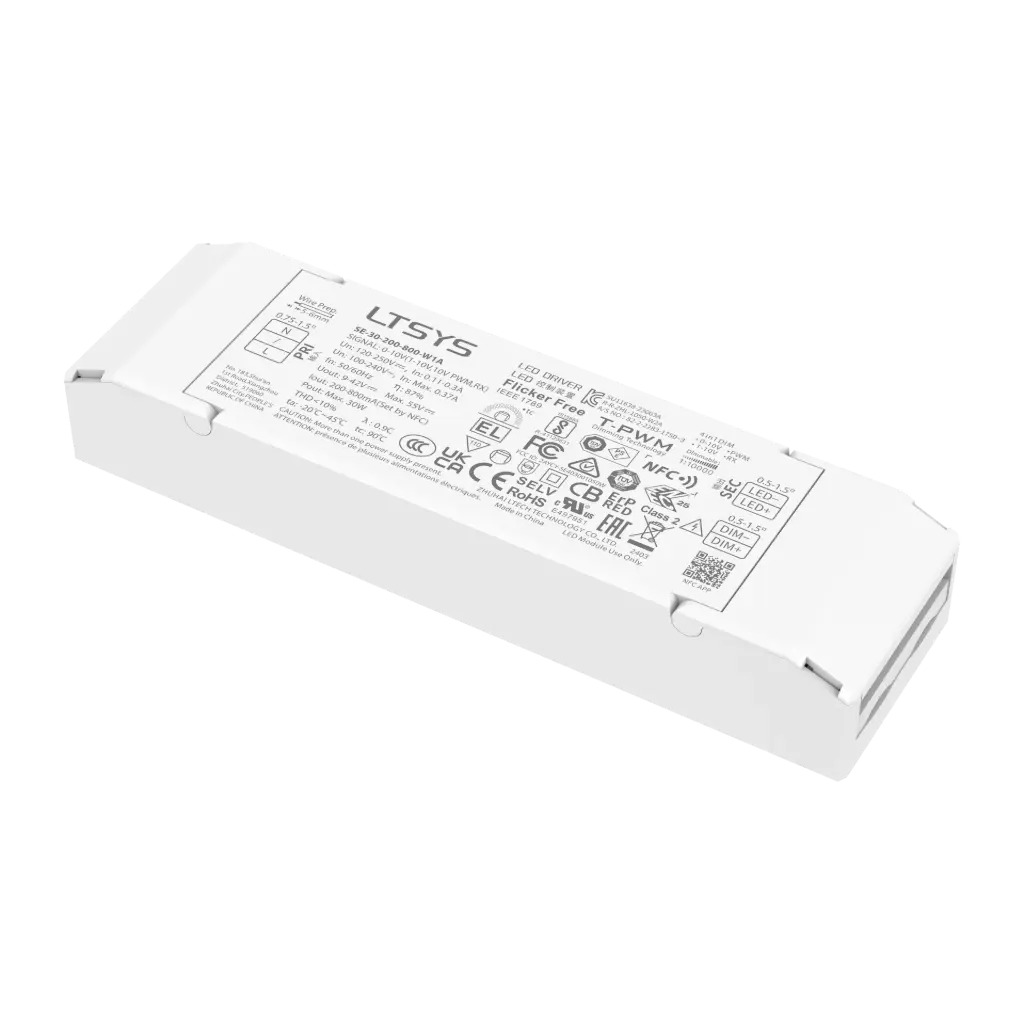

Intelligent LED Driver (Constant Current)
Ultra-compact LED driver with V0 flame-retardant housing and screwless end cap. Supports 0–10V/1–10V input, adjustable output down to 1 mA, and multiple current levels. T-PWM™ ensures flicker-free dimming with soft-on and fade-in function. Features overheat, overload, short-circuit protection, and app/NFC programming. Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor light fixtures, 100,000-hour service life, 5-year warranty (Rubycon capacitor).
- Input Voltage: 115Vac / 230Vac
- Output Voltage: 9-42Vdc Max. 55Vdc
- Output Current: 200-800mA
- Output Power: 1.8W-30W
- Working Temperature: ta: -20~45°C tc: 90°C
- Dimensions: L142 x W40 x H23 (mm)
- Weight (N.W): 170g
