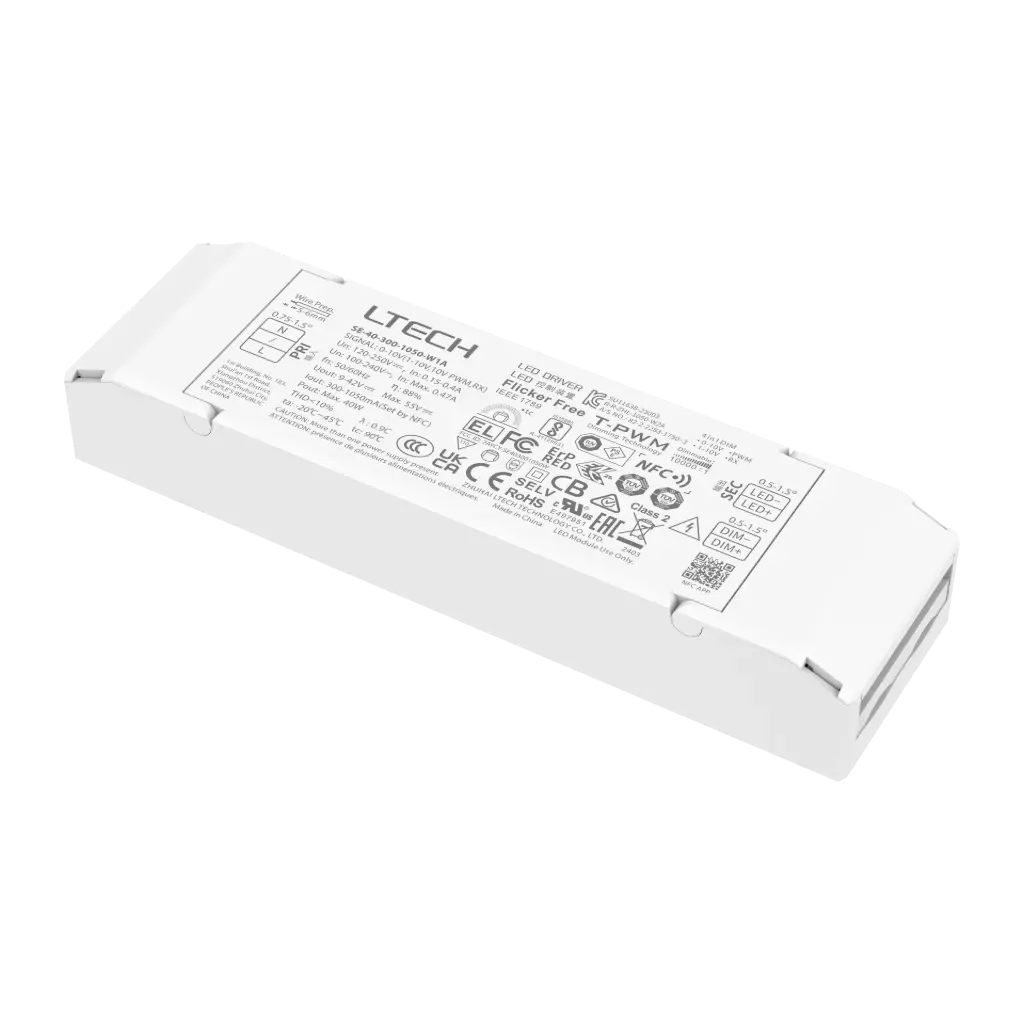

Ultra-compact LED driver with V0 flame-retardant housing and screwless end cap. Supports 0–10V/1–10V input, adjustable output down to 1 mA, and multiple current levels. T-PWM™ ensures flicker-free dimming with soft-on/fade-in. Features overheat, overload, short-circuit protection, and app/NFC programming. Suitable for Class Ⅰ/Ⅱ/Ⅲ fixtures, 100,000 h life, 5-year warranty.
• Input Voltage: 120-300V DC 100-240V AC
• Output Voltage: 9-42V DC Max. 55V DC
• Output Current: 300-1050mA
• Output Power: 2.7W-40W
• Dimming Range: 0~100% down to 0.01%
• Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
• Working Temperature: ta: -20~45°C tc: 90°C
• Dimensions: L142 x W40 x H23 (mm)
• Weight (N.W): 170g
