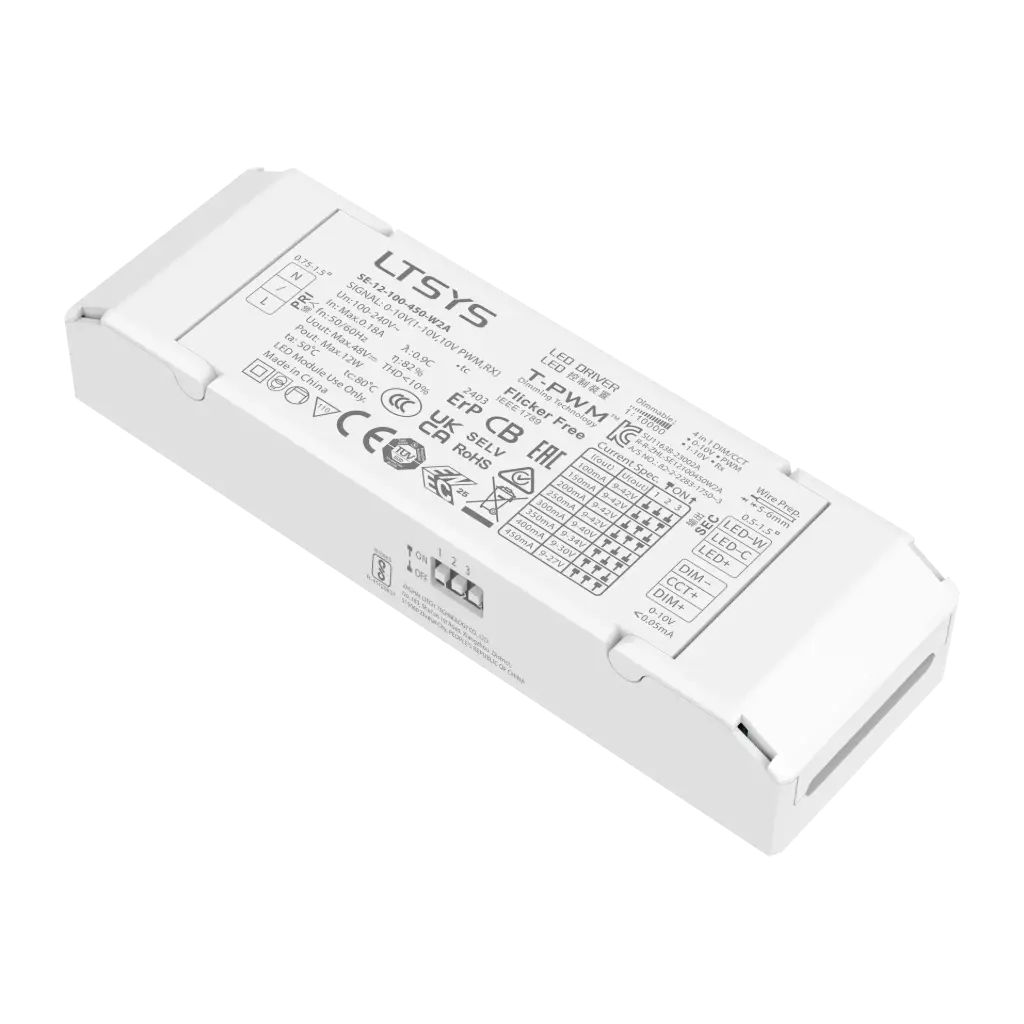

LTECH LTSYS Driver CC 0-10V 2CH 100-450mA 12W - SE-12-100-450-W2A


Intelligent LED Driver
T-PWM™ dimming technology ensures continuous, flicker-free images even under high-speed photography, while the soft-on and fade-in function enhances visual comfort. The driver automatically recognizes 0-10 V and 1-10 V input signals and features a DIP switch for fast multi-gear current selection. The entire dimming process is flicker-free with a high-frequency exemption level, and the 0-10 V ports consume ultra-low power ports <0.05 mA. Innovative thermal management technology intelligently protects the life of the LED driver. Up to 50,000-hour lifetime. 5-year warranty (Rubycon capacitor).

€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2827111
HS Code: 85044031

General
Input Voltage Domain AC
Output Current 100-450mA
Channels 2
Control 0-10V
Output Power Range 12 W
Input Voltage 100-240 V
Output Voltage 9-42 V
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , TUV , CE , KC , RCM , ENEC , CB , BIS , EAC , UKCA , RoHS
Warranty 5 Years
  • SE-12-100-450-W2A User Manual.pdf
