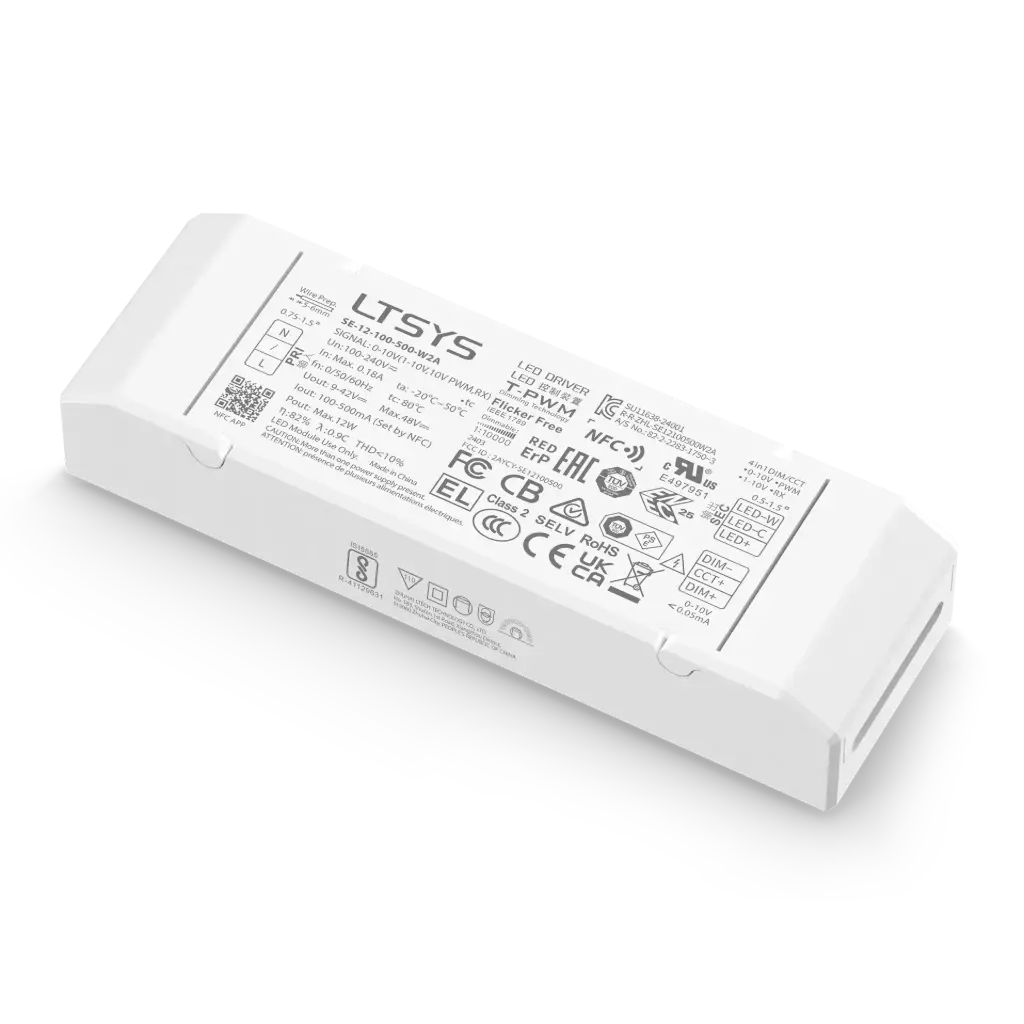

Intelligent LED Driver (Constant Current)
This ultra-small, thin, and lightweight LED driver features a screwless end cap for easy installation. You can adjust the output current, dimming mode, and other settings via the APP, with output current adjustable in 1 mA steps. It has ultra-low consumption on 0-10 V ports <0.05 mA and includes a soft-on and fade-in dimming function to enhance visual comfort. Normal service life can reach 100,000 hours. 5-year warranty (Rubycon capacitor).
- Input Voltage: 120-300Vdc / 100-240Vac
- Output Voltage: 9-42Vdc
- Output Current: 100-500mA
- Load Power Range: 0.9W-12W
- Working Temperature: ta: -20°C~50°C tc: 80°C
- Dimensions: L110 x W35 x H20 (mm)
- Weight (N.W): 85g
