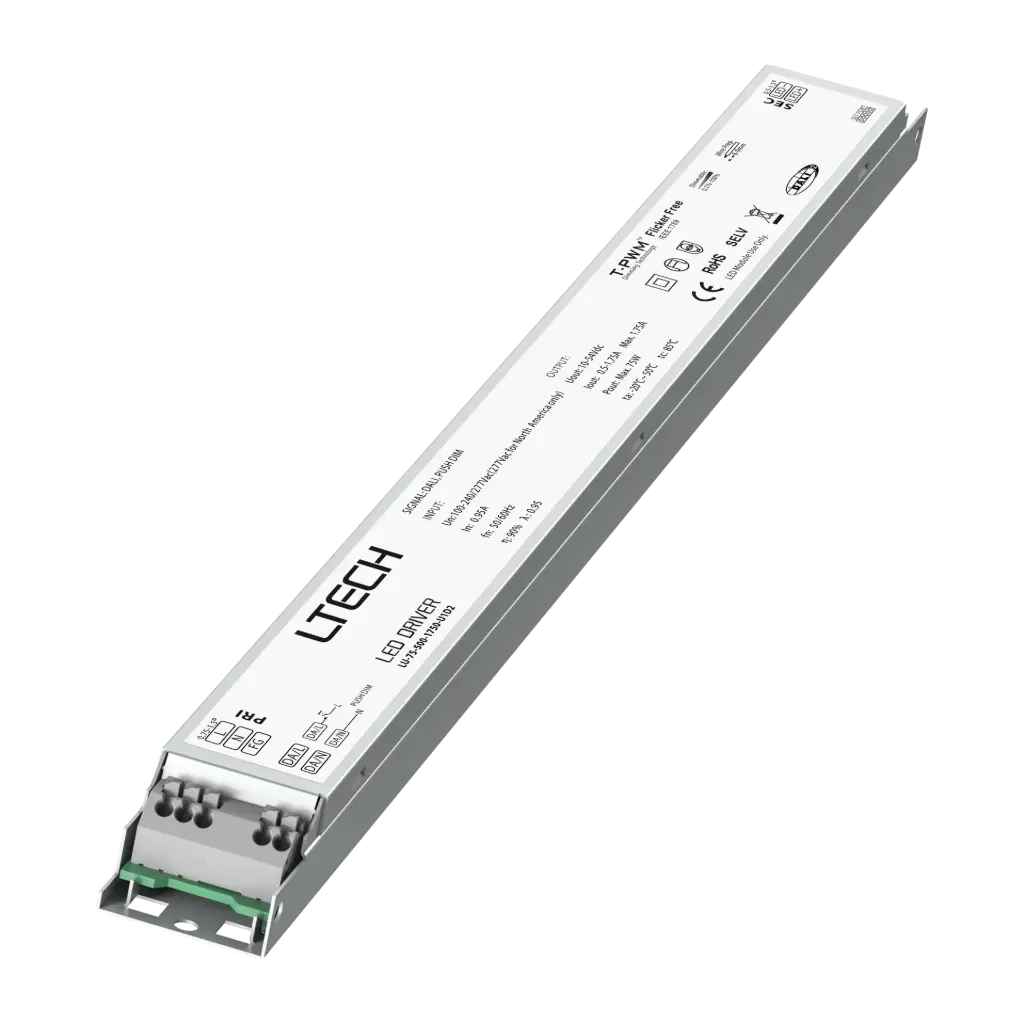

Intelligent LED Driver (Constant Current & Programmable)
Programmable output with automatic voltage adaptation. Features soft-on and fade-in dimming for visual comfort and T-PWM™ technology for flicker-free images under high-speed shooting. Dimming range 0-100%, down to 0.1%, via DALI-2 or Push DIM interfaces. High-frequency exemption ensures flicker-free performance. Energy-efficient: 89% efficiency, PF>0.9, THD<10%, standby <0.5W (EU ErP compliant). Built-in protections for overheat, overvoltage, overload, and short circuit with automatic recovery. Suitable for Class I/II/III indoor fixtures. Up to 50,000-hour lifetime. 5-year warranty (Rubycon capacitor).
• DALI standard: IEC62386-101, 102, 207.
• Input Voltage: 100-240/277V AC (277Vac for North America only)
• Output Voltage: 58V DC
Output Current: 500-1750mA
• Output Power: Max. 75W
Output
• Power Range: 5-75W
• Dimming Interface: DALI-2, Push DIM
• Working Temperature: ta: -20~50°C tc: 85°C
• Dimensions: L355 x W31 x H21 (mm)
• Weight (G.W): 330g
