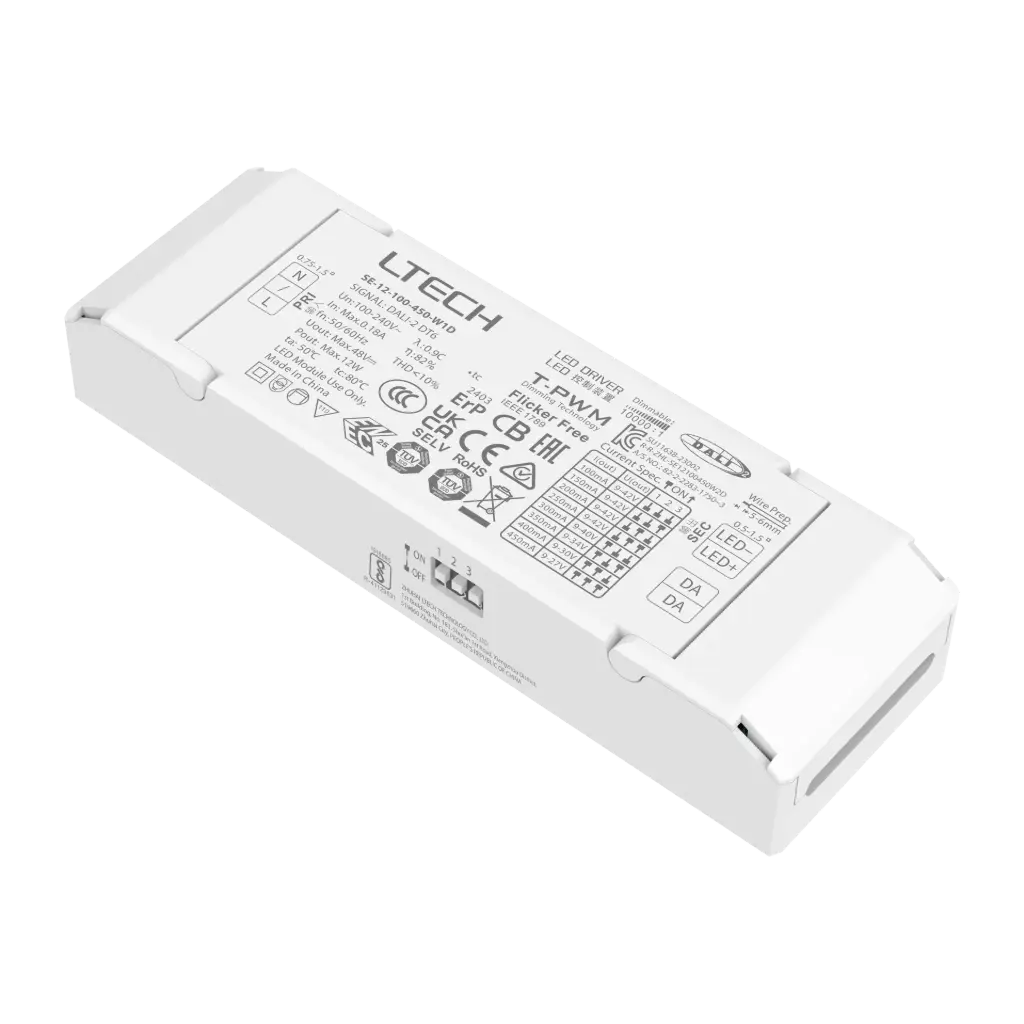

LTECH LTSYS Driver CC DALI DT6 1CH 100-450mA 12W - SE-12-100-450-W1D

LTECH LTSYS Driver CC DALI DT6 1CH 100-450mA 12W - SE-12-100-450-W1D


Intelligent LED Driver (Constant Current)
This compact, lightweight LED driver features a clamshell design with a screwless strain-relief and a removable end cap that allows the housing length to be adjusted as needed. It supports multiple current levels and a wide voltage range for different LED powers, with dimming from 0.1% to 100% using T-PWM technology for smooth, flicker-free performance, even under high-speed photography. Soft-on and fade-in functions enhance visual comfort, while DALI support (IEC 62386-101, 102, 207) offers linear and logarithmic dimming curves with secure signal isolation. Compliant with EU ErP requirements, standby power is below 0.5W. Advanced thermal management and built-in protection against overheating, overvoltage, overload, and short circuits ensure reliable operation with automatic recovery. Suitable for Class I, II, and III indoor luminaires, it delivers up to 50,000 hours of lifespan and comes with a 5-year warranty (Rubycon capacitor)

  • Input voltage: 120-300Vdc 100-240Vac
  • Input current: ≤0.18A/115V AC, at full load ≤0.08/23V AC, at full load
  • Output voltage: 9-42Vdc
  • Output current: 100-450mA
  • Wireless type: Tuya Bluetooth Mesh
  • Dimming Interface: DALI DT6
  • Working temperature: ta: -20 ~ 50°C tc: 80°C
  • Dimensions: L110 × W35 × H20 (mm)
  • Weight (G.W): 80±10g
€ 0.00 € 0.00

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power Range
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2827009
HS Code: 85044095

01
General
9 specifications
Control
DALI
Channels
1
Input Voltage
100-240 V
Input Voltage Domain
AC
Output Current
100-450mA
Output Voltage
9-42 V
Output Power Range
12 W
Version
DT6
Dimming Range
0-100% down to 0.01%
02
Operating
3 specifications
IP Rating
IP20
Certificates
CCC · TUV · CB · RCM · CE · KC · UKCA · BIS · EAC · ENEC · RoHS
Warranty
5 Years
01
All Files
1 file
PDF
SE-12-100-450-W1D User Manual.pdf
1.7 MB
Download
