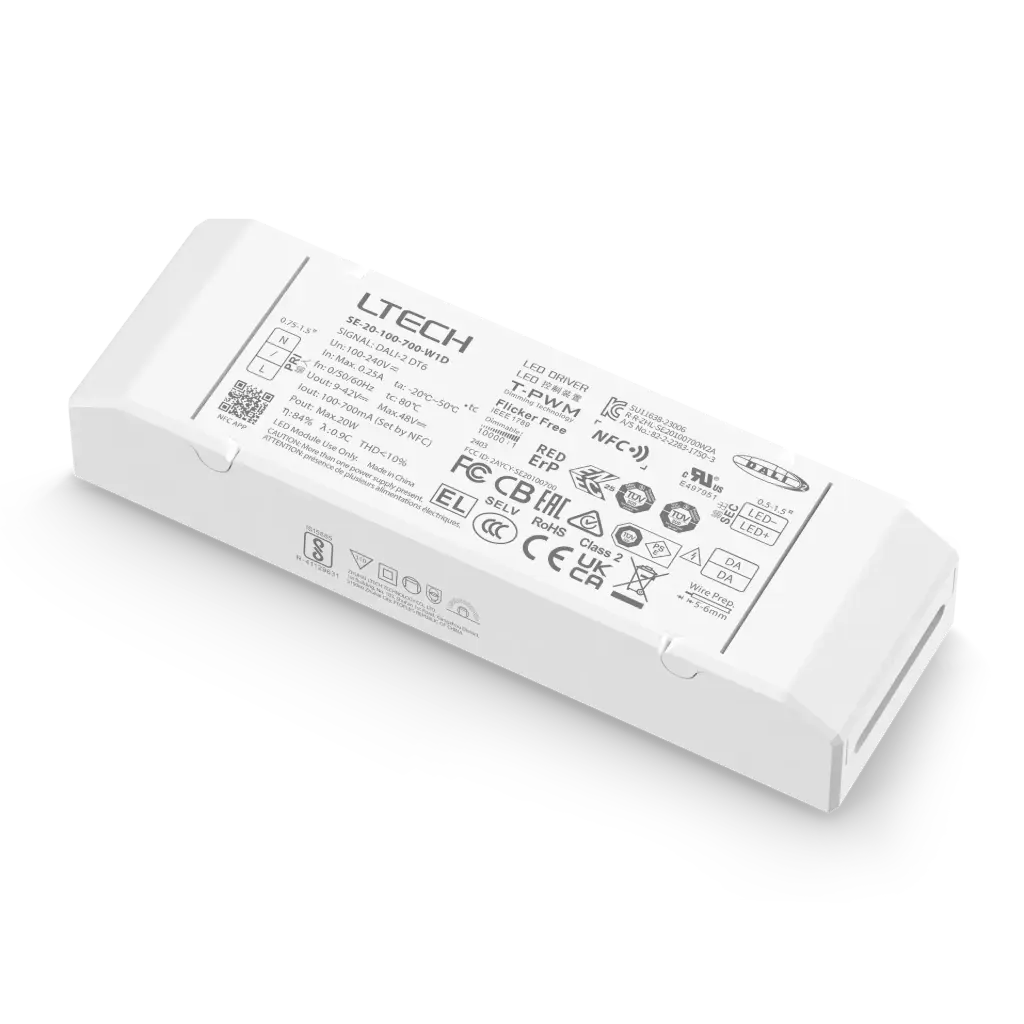

LTECH LTSYS Driver CC DALI DT6 1CH 100-700mA 20W NFC UL - SE-20-100-700-W1D

LTECH LTSYS Driver CC DALI DT6 1CH 100-700mA 20W NFC UL - SE-20-100-700-W1D


Intelligent LED Driver (Constant Current)
Ultra-small, lightweight LED driver with a screwless end cap, made from SAMSUNG/COVESTRO V0 flame-retardant PC. DALI groups, scenes, and parameters can be set via NFC programmer or App. Supports DALI bus (IEC62386-101, 102, 207) and Class 2 LED Driver SELV operation. Features T-PWM™ flicker-free dimming from 0-100%, soft-on and fade-in functions, and output current adjustable down to 1 mA. Complies with EU ErP standby <0.5 W, with automatic 0 V output when no load is detected. Protects against overheat, overvoltage, overload, and short circuits. Suitable for Class I/II/III indoor fixtures, with 100,000-hour life.


€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Channels
  • Output Voltage
  • Output Power Range
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2827005
HS Code: 85044031

01
General
9 specifications
Control
DALI
Input Voltage
100-240 V
Input Voltage Domain
AC
Output Current
100-700mA
Channels
1
Output Voltage
9-42 V
Output Power Range
20 W
Version
DT6
Dimming Range
0-100% down to 0.01%
02
Operating
2 specifications
Certificates
CCC · TUV · CB · CE · FCC · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · PSE · RoHS
Warranty
5 Years(Rubycon capacitor)
01
All Files
1 file
PDF
SE-20-100-700-W1D User Manual.pdf
1.9 MB
Download
