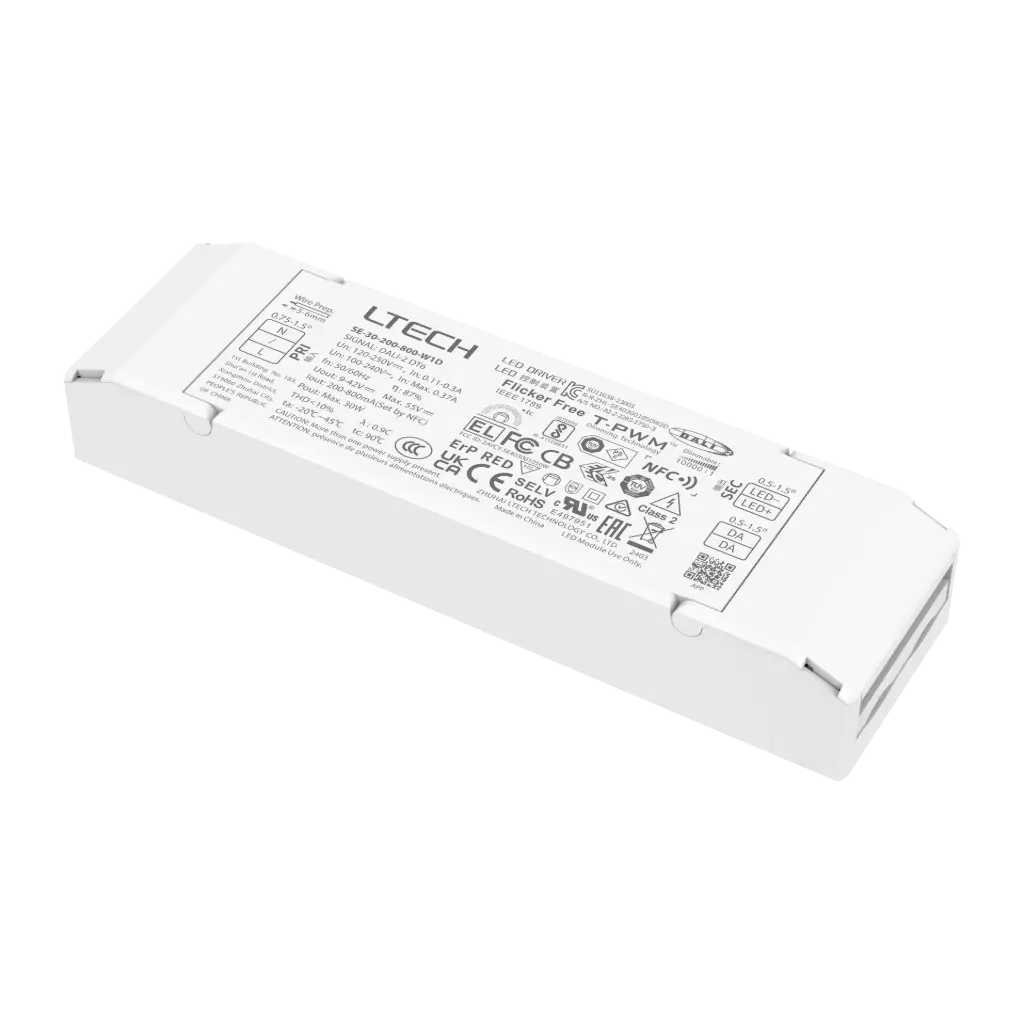

LTECH LTSYS Driver CC DALI DT6 1CH 200-800mA 30W NFC UL - SE-30-200-800-W1D

Intelligent LED Driver (Constant Current)

Compact LED driver with V0 flame-retardant housing and screwless end cap. Features adjustable output current in 1 mA steps, soft-on/fade-in dimming, and T-PWM™ super deep dimming to 0.01%, fully flicker-free. Supports DALI group/scene setup and parameter changes via app. Includes overheat, overload, short-circuit protection, 0 V no-load output, complies with EU ErP, suitable for Class Ⅰ/Ⅱ/Ⅲ fixtures, 100,000 hours life, 5-year warranty.

Input Voltage: 120-250Vdc / 100-240Vac
Output Voltage: 9-42Vdc Max. 55Vdc
Output Current: 200-800mA
Output Power: 1.8W-30W
Working Temperature: ta: -20~45°C tc: 90°C
Dimensions: L142 x W40 x H23 (mm)
Weight (N.W): 170g

Input Voltage Domain	AC
Output Current	200-800mA
Channels	1
Control	DALI
Output Power Range	30 W
Input Voltage	100-240 V
Output Voltage	9-42 V
Version	DT6
Dimming Range	0-100% down to 0.01%

Certificates	CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , RoHS
Warranty	5 Years(Rubycon capacitor)
