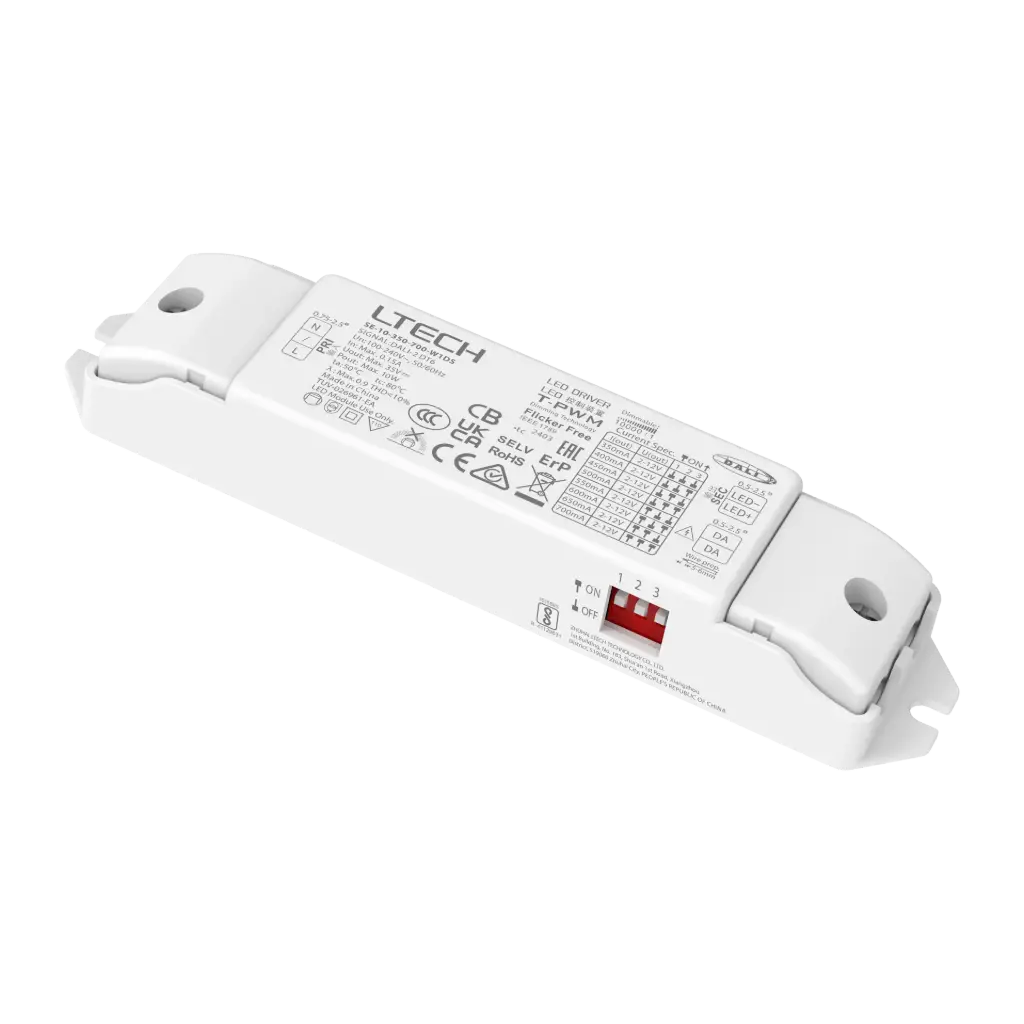

Intelligent LED Driver (Constant Current)
Compact and lightweight, this driver is built with SAMSUNG/COVESTRO’s V0 flame-retardant PC housing and complies with DALI IEC62386-101/102/207 standards. It supports Class 2 SELV safety, soft-on and fade-in dimming, and advanced T-PWM™ technology for smooth, flicker-free lighting. With multiple current levels, wide voltage adaptability, and automatic protections, it’s suitable for Class Ⅰ/Ⅱ/Ⅲ indoor fixtures. Offering up to 100,000 hours of service life and backed by a 5-year Rubycon capacitor warranty, it ensures reliability and comfort for modern lighting applications.
• Input Voltage: 120-300V DC, 100-240V AC
• Input Current: ≤0.15A/115V AC (at full load), ≤0.07A/230V AC (at full load)
• Output Voltage: 2-12V DC
• Output Current Range: 350~700mA
• Output Power: 0.7W~8.4W
• Dimming Interface: DALI DT6
• Working Temperature: ta: -20~50°C tc: 80°C
• Dimensions: L135 × W30 × H20 (mm)
• Weight (G.W.): 80g±10g
