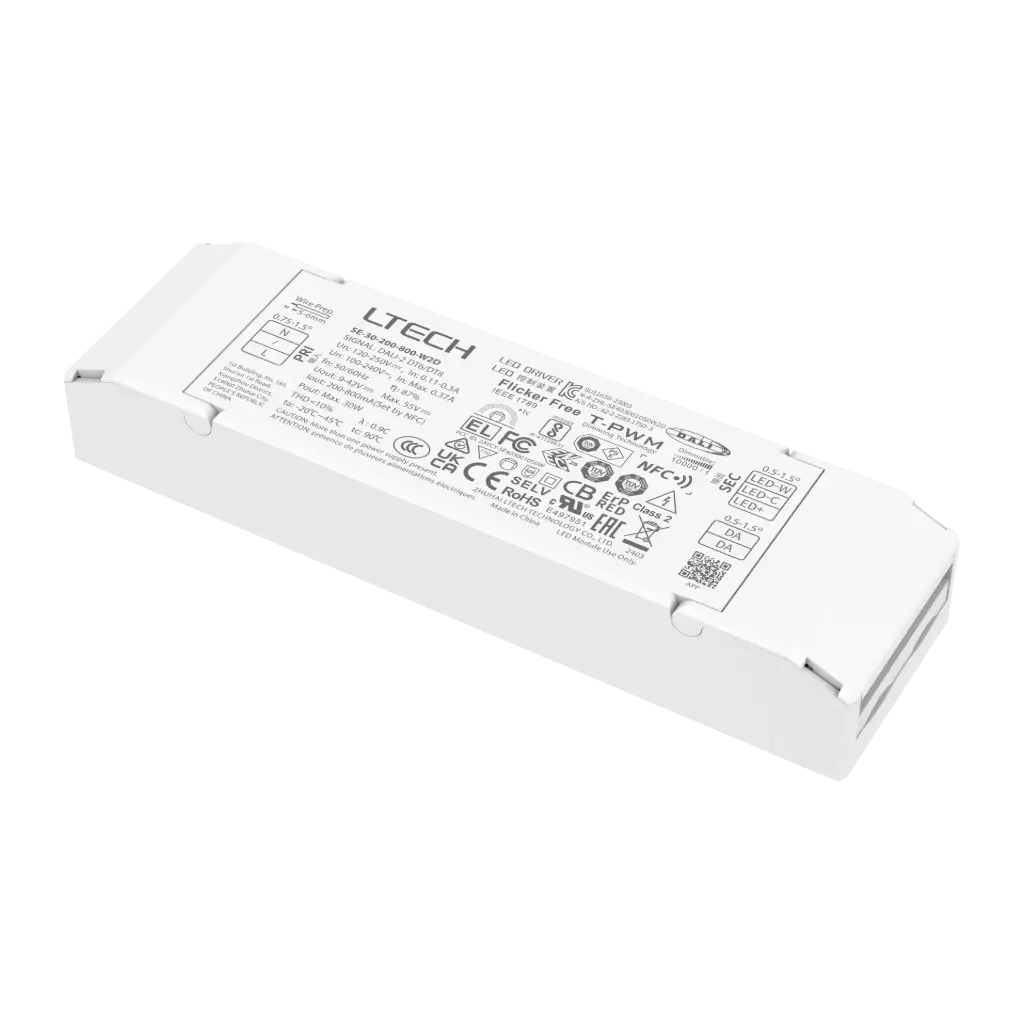

LTECH LTSYS Driver CC DALI DT6/DT8 2CH 200-800mA 30W NFC UL - SE-30-200-800-W2D

LTECH LTSYS Driver CC DALI DT6/DT8 2CH 200-800mA 30W NFC UL - SE-30-200-800-W2D


Intelligent Tunable White LED Driver (Constant Current)
Compact LED driver with V0 flame-retardant housing and screwless end cap. Features adjustable output current in 1 mA steps, soft-on/fade-in dimming, and T-PWM™ super-deep flicker-free dimming down to 0.01%. Supports DALI groups and scenes, with parameters adjustable via app. Includes overheat, overvoltage, overload, and short-circuit protection, 0 V no-load output, EU ErP compliance (<0.5 W standby), suitable for Class Ⅰ/Ⅱ/Ⅲ fixtures, 100,000 hours lifespan, and 5-year warranty (Rubycon capacitor

  • Input Voltage: 120-250Vdc 100-240Vac
  • Output Voltage: 9-42Vdc Max. 55Vdc
  • Output Current: 200-800mA
  • Output Power: 1.8W-30W
  • Dimming Range: 0~100%, down to 0.01%
  • Dimming Interface: DALI-2 T6/DT8
  • Working Temperature: ta: -20~45°C tc: 90°C
  • Dimensions: L142 x W40 x H23 (mm)
  • Weight (N.W): 170g
€ 0.00 € 0.00

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Channels
  • Output Voltage
  • Output Power Range
  • Version
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2827003
HS Code: 85044031

01
General
9 specifications
Control
DALI
Input Voltage
100-240 V
Input Voltage Domain
AC
Output Current
200-800mA
Channels
2
Output Voltage
9-42 V
Output Power Range
30 W
Version
DT6 · DT8
Dimming Range
0-100% down to 0.01%
02
Operating
2 specifications
Certificates
CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · RoHS
Warranty
5 Years(Rubycon capacitor)
01
All Files
1 file
PDF
SE-30-200-800-W2D User Manual.pdf
1.8 MB
Download
