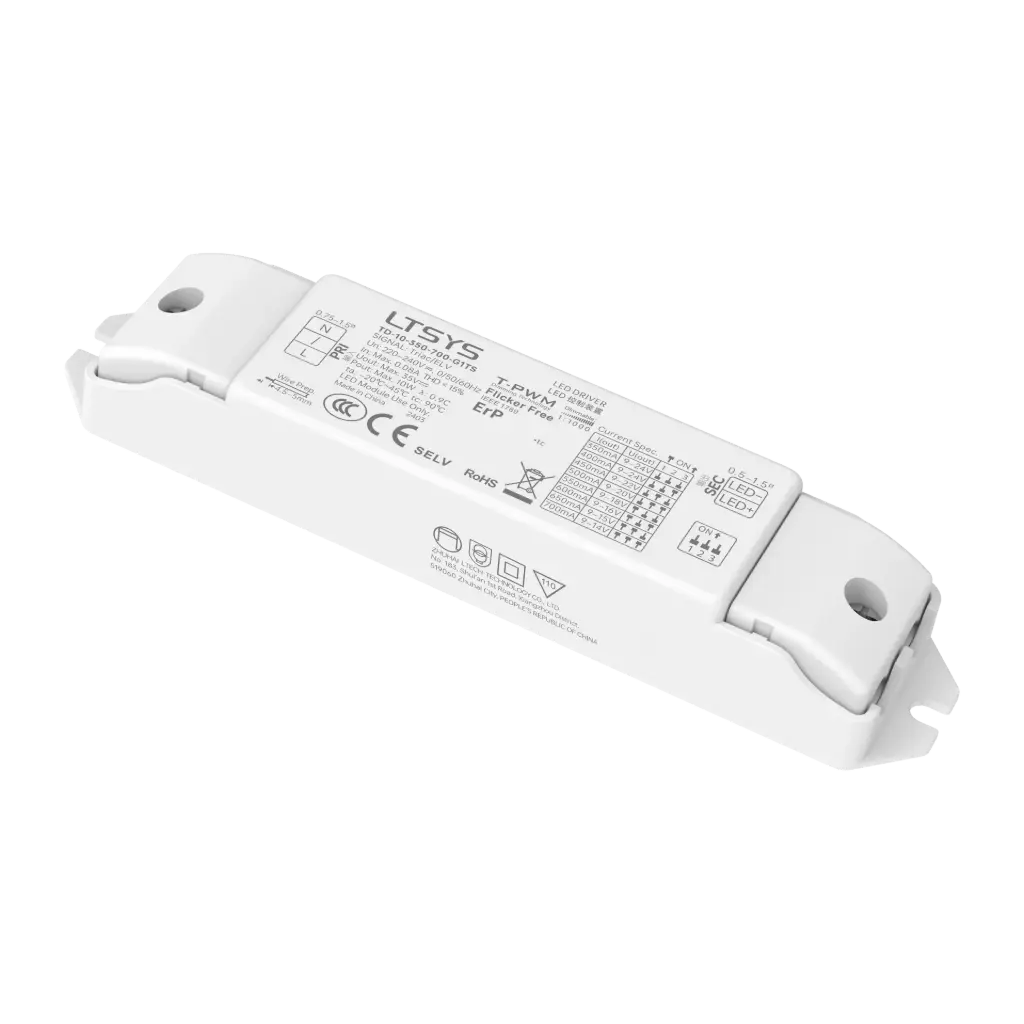

LTECH LTSYS Driver CC TRIAC 1CH 350-700mA 10W - TD-10-350-700-G1T


Intelligent LED Driver (Constant Current)
Compact and lightweight, this LED driver features a V0 flame-retardant PC housing from Samsung/Covestro and supports both Leading-edge (Triac) and Trailing edge (ELV). Its soft-on and fade-in dimming functions enhance visual comfort, while T-PWM™ technology ensures continuous, flicker-free dimming from 0-100% (down to 0.01%) even under high-speed photography. With multiple current levels, a wide voltage range, and intelligent thermal management, it delivers reliable performance and long life. The driver includes protection against overheat, overvoltage, overload, and short circuit, with automatic recovery, offering up to 50,000 hours of lifespan and a 5-year warranty (Rubycon capacitor).

  • Input Voltage: 200-280Vdc / 220-240Vac
  • Output Voltage: 9-24Vdc
  • Output Current: 350-700mA
  • Output Power: 3.15-10W
  • Working Temperature: ta: -20~45°C tc: 90°C
  • Dimensions: L135 x W30 x H20 (mm)
€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Output Current
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2846300
HS Code: 85044031

General
Input Voltage Domain AC
Output Current 350-700mA
Channels 1
Control TRIAC
Output Power Range 10 W
Input Voltage 220-240 V
Output Voltage 9-24 V
Dimming Range 0-100% down to 0.1%
Operating
IP Rating IP20
Certificates TUV , CE , KC , RCM , ENEC , CB , BIS , EAC , UKCA , RoHS
Warranty 5 Years
  • TD-10-350-700-G1T User Manual.pdf
