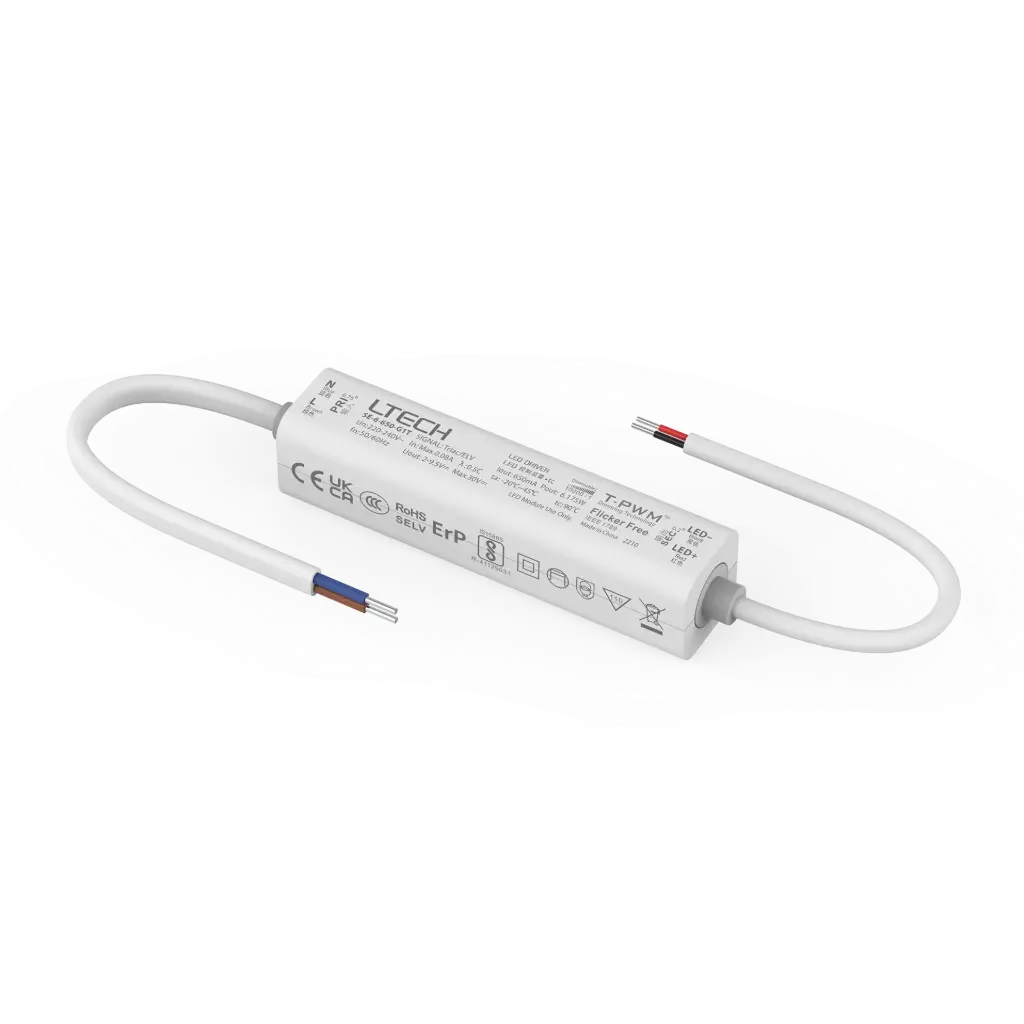

Intelligent Constant Current LED Driver with compact, lightweight housing made from SAMSUNG/COVESTRO V0 flame-retardant PC. Offers 0-100% flicker-free dimming down to 0.1% using T-PWM™ technology, plus soft-on and fade-in for visual comfort. Supports Leading Edge (Triac) and Trailing Edge (ELV) dimming. Features innovative thermal management, overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Lifespan up to 100,000 hours and backed by a 5-year Rubycon capacitor warranty.
• Input Voltage: 200-280V DC (Dimming is not possible) 220-240V AC
• Output Voltage: 2-9.5V DC Max. 30V DC
• Output Current: 650mA
• Output Power: Max. 6.175W
• Load Power Range: 1.3-6.175W
• Dimming Range: 0~100%, down to 0.01%
• Dimming Interface: Triac/ELV
• Working Temperature: ta: -20~45°C tc: 90°C
• Dimensions: L84 x W20 x H20 (mm)
• Weight (N.W): 50g
