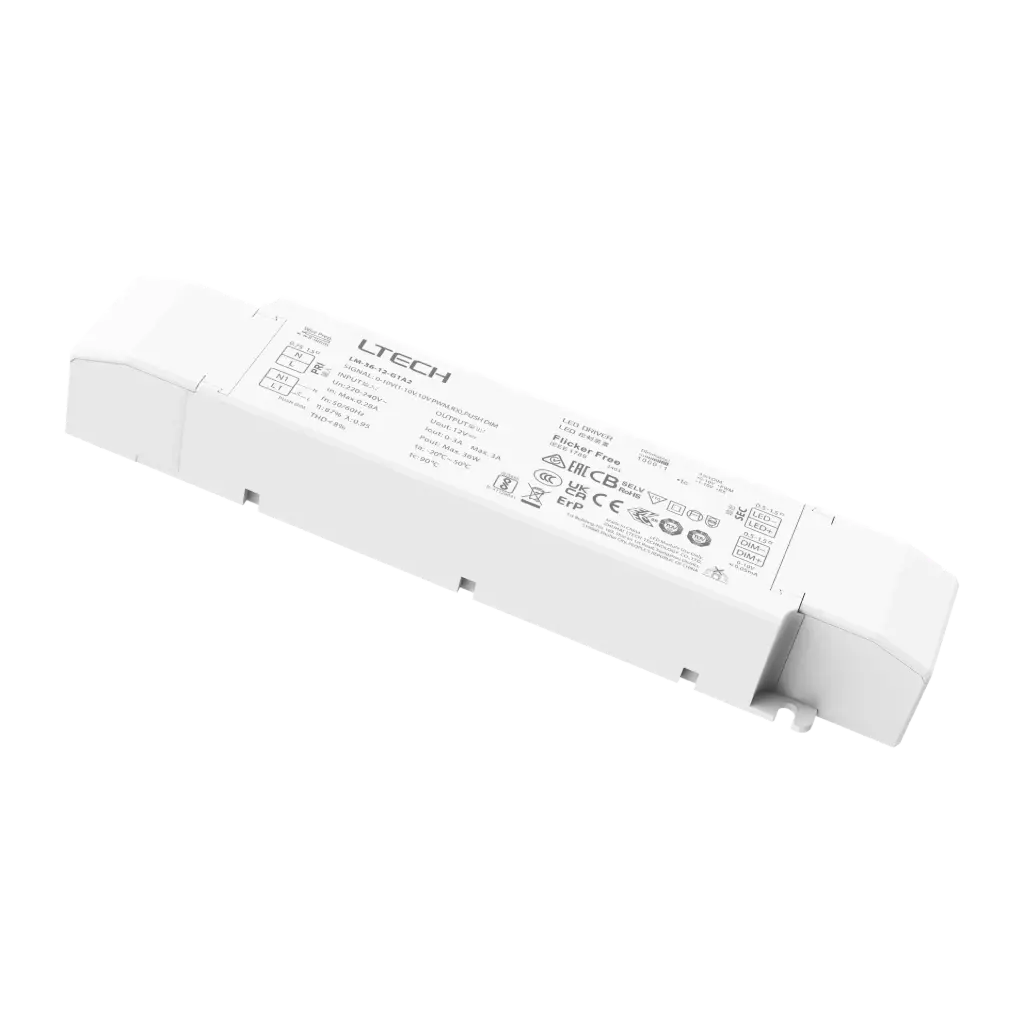

LTECH LTSYS Driver CV 0-10V 1CH 12V 36W - LM-36-12-G1A2


LED Intelligent Driver (Constant Voltage)
Adopt Samsung/Covestro V0 flame resistant polycarbonate protective housing, small and lightweight. Dismountable end cap for adjustable length. Dimming interfaces: 0-10V/1-10V/PWM and Push DIM, auto-recognition. Dimming 0-100% (0.1%), flicker-free, soft-on and fade-in function. High performance drivers: Efficiency 88%, PF>0.95, THD<8%, standby power consumption <0.5 W. Thermal management technology that protects lifetime the driver. Over-heat/ Over voltage/ Overload/ short-circuit protection and recover automatically. Suitable for lamp applications of indoor I/II/III types. Up to 50,000-hour lifetime.

€ 0.00 € 0.00

  • Input Voltage Domain
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2814100
HS Code: 85044031

General
Input Voltage Domain AC
Channels 1
Control 0-10V
Output Power Range 36 W
Input Voltage 220-240 V
Output Voltage 12 V
Curent load max 3A
Dimming Range 0-100% down to 0.1%
Operating
Certificates CCC , BIS , TUV , CE , KC , RCM , ENEC , CB , EAC , UKCA , RoHS
Warranty 5 Years
  • LM-36-12-G1A2 User Manual.pdf
