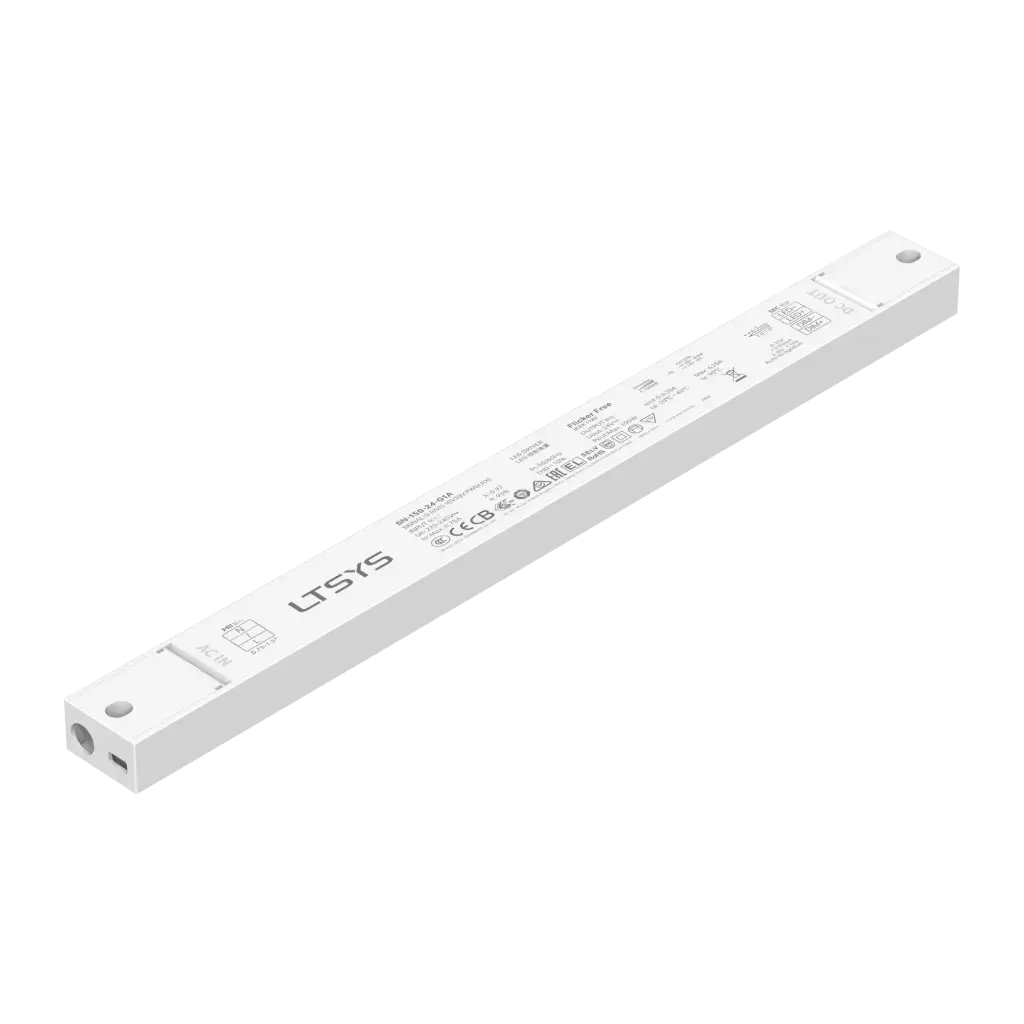

LTECH LTSYS Driver CV 0-10V 1CH 24V 150W - SN-150-24-G1A


LED Driver (Constant Voltage)
An ultra-thin, integrated clamshell design made from V0 PC flame retardant grade raw. Automatically recognizes 0-10V and 1-10V input signal, with ultra-low consumption of 0-10V ports <0.05 mA. Offers 0-100% flicker-free dimming and high-performance power supply (93% efficiency, PF > 0.97, THD < 10%). Complies with the EU ErP Directive, with no-load and standby power <0.5 W. Features intelligent thermal management and protection against overheat, overload, and short circuits with automatic recovery. Suitable for Class I/II/III indoor light fixtures, including light strips and magnetic track lights.

€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2813010
HS Code: 85044031

General
Input Voltage Domain AC
Channels 1
Control 0-10V
Output Power Range 150
Input Voltage 220-240 V
Output Voltage 24 V
Curent load max 6.25A
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , RoHS , BIS
Warranty 5 Years
  • SN-150-24-G1A User Manual.pdf
