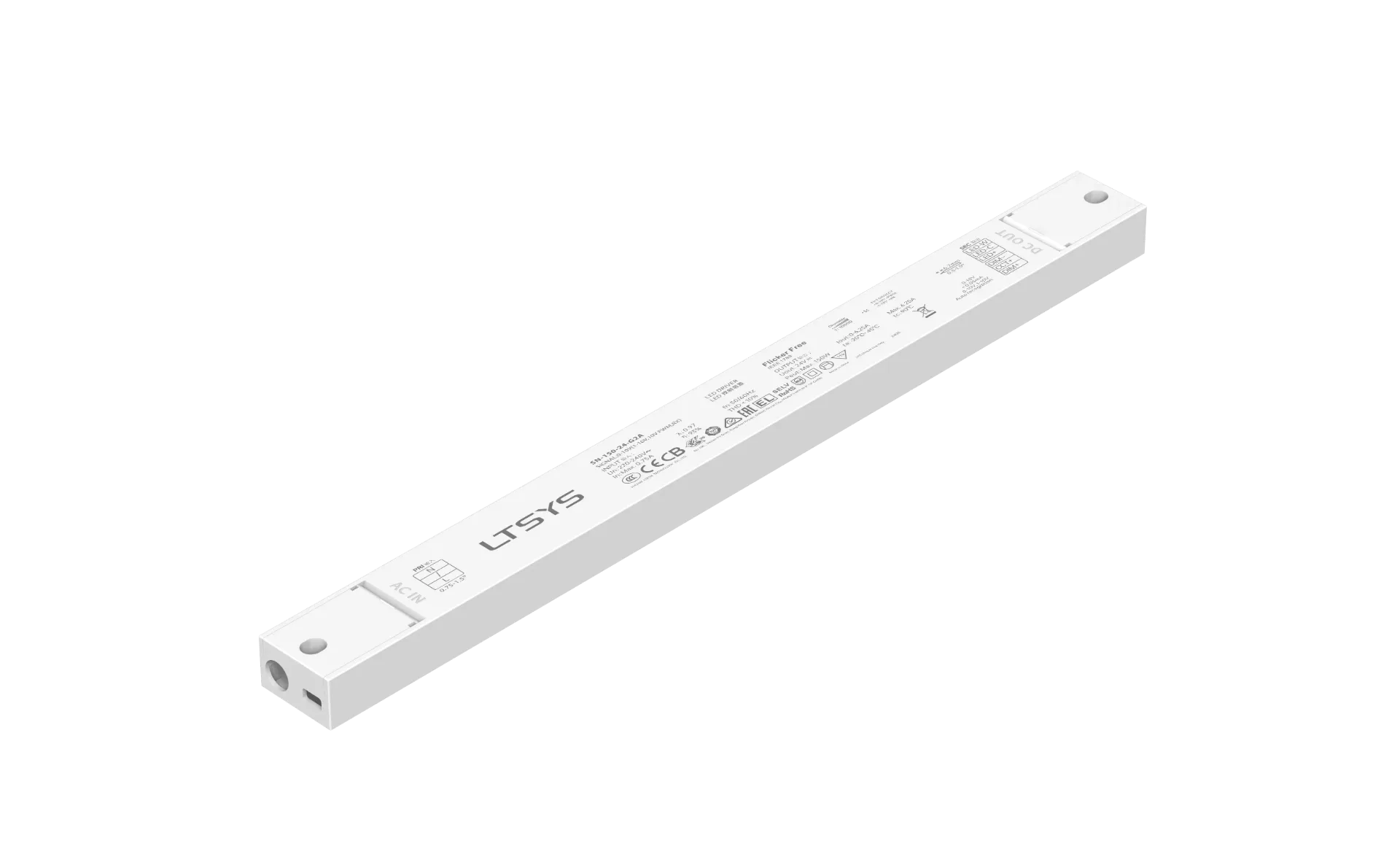

LTECH LTSYS Driver CV 0-10V 2CH 24V 150W NFC - SN-150-24-G2AF

LTECH LTSYS Driver CV 0-10V 2CH 24V 150W NFC - SN-150-24-G2AF


LED Driver (Constant Voltage)
Ultra-thin, integrated clamshell LED driver with V0 flame-retardant PC housing. Supports constant power design, allowing color temperature adjustment from 2700K to 6500K without changing brightness. Automatically recognizes 0-10V and 1-10V input signals with ultra-low 0-10V port consumption (<0.05 mA). Dimming from 0-100% down to 0.01%, flicker-free and compliant with high-frequency exemption. High-performance power supply: 93% efficiency, PF > 0.97, THD < 10%, and EU ErP-compliant standby <0.5 W. Features intelligent thermal management, overheat, overload, and short circuit protection with automatic recovery. Suitable for Class I/II/III indoor fixtures, including LED strips and magnetic track lights.

€ 0.00 € 0.00

  • Control
  • IP Rating
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Current load/ ch
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Add to cart
Contact Us

Internal Reference: 2833211
HS Code: 85044031

01
General
9 specifications
Control
0-10V
Input Voltage
220-240 V
Input Voltage Domain
AC
Channels
2
Output Voltage
24 V
Output Power Range
150
Current load/ ch
3.125A
Curent load max
6.25A
Dimming Range
0-100% down to 0.01%
02
Operating
3 specifications
IP Rating
IP20
Certificates
CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · RoHS · BIS
Warranty
5 Years
01
All Files
1 file
PDF
SN-150-24-G2A_EN.pdf
1.8 MB
Download
