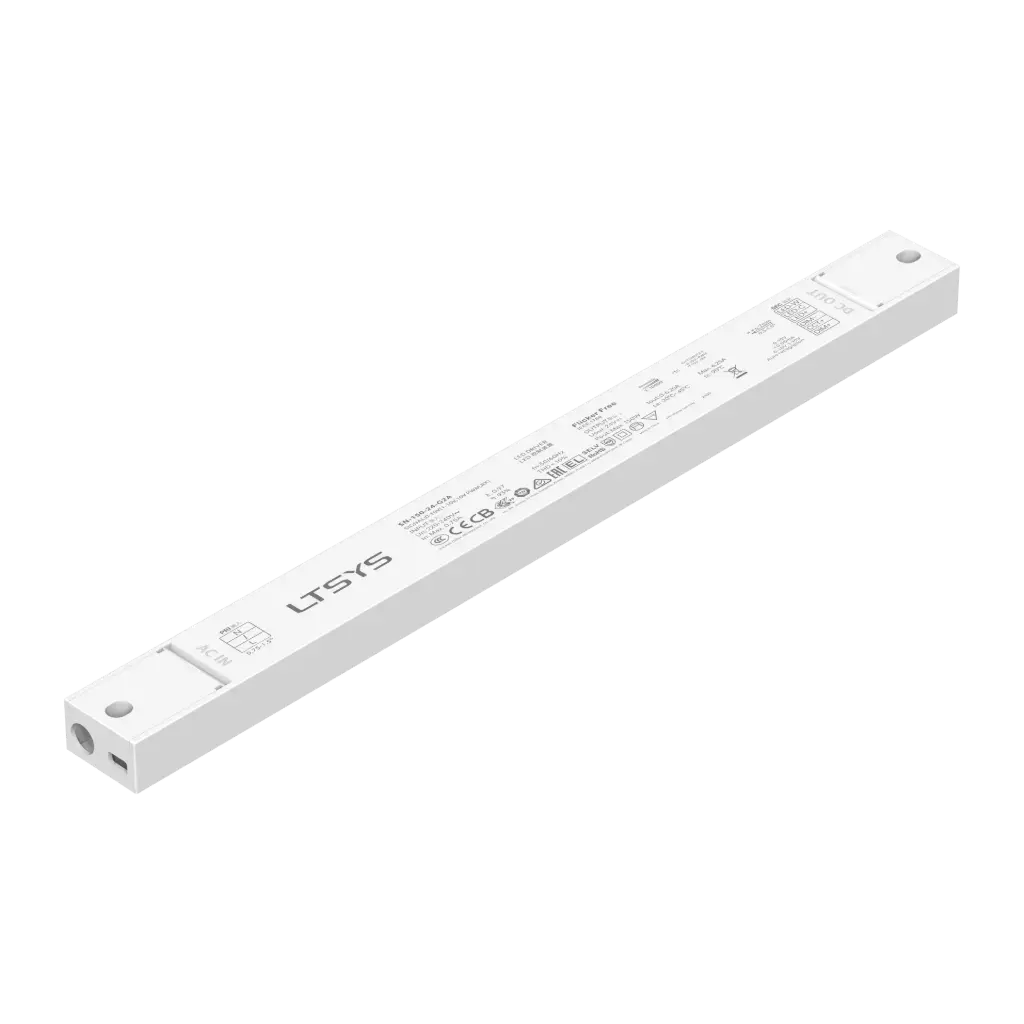

LED Driver (Constant Voltage)
Ultra-thin, integrated clamshell LED driver with V0 flame-retardant PC housing. Supports constant power design, allowing color temperature adjustment from 2700K to 6500K without changing brightness. Automatically recognizes 0-10V and 1-10V input signals with ultra-low 0-10V port consumption (<0.05 mA). Dimming from 0-100% down to 0.01%, flicker-free and compliant with high-frequency exemption. High-performance power supply: 93% efficiency, PF > 0.97, THD < 10%, and EU ErP-compliant standby <0.5 W. Features intelligent thermal management, overheat, overload, and short circuit protection with automatic recovery. Suitable for Class I/II/III indoor fixtures, including LED strips and magnetic track lights. 5-year warranty.
- Input Voltage: 220-240Vac
- Input Current: Max. 0.75A / 230Vac
- Output Voltage: 24Vdc
- Output Current: Max. 6.25A
- Working Temperature: ta: -20~45°C tc: 90°C
- Dimensions: L350 × W30 × H18 (mm)
- Weight (N.W.): 211g±10g
