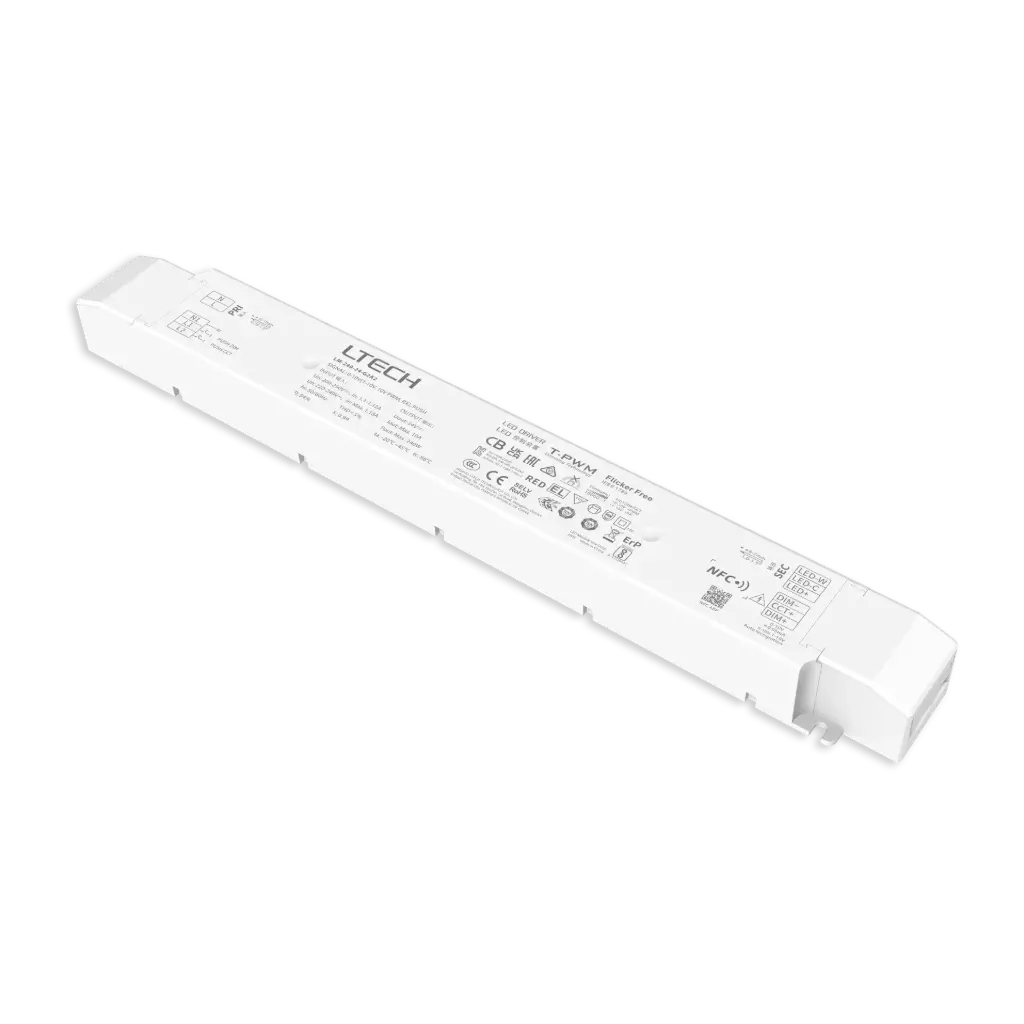

LTECH LTSYS Driver CV 0-10V 2CH 24V 240W - LM-240-24-G2A2


Intelligent Tunable White LED Driver (Constant Voltage)
Housing made from V0 flame-retardant housing with adjustable end cap. Auto-recognizes 0-10V/1-10V signals. Dimming 0-100% (from 0.1%) with soft-on and fade-in function. Complies with EU ErP (<0.5W standby). Change the dimming method, PWM frequency and other parameters via the APP. Suitable for lamp applications of indoor I/II/III types. 50,000-hour lifetime.

€ 0.00 € 0.00

  • IP Rating
  • Input Voltage Domain
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Current load/ ch
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty

Internal Reference: 2834202
HS Code: 85044031

General
Input Voltage Domain AC
Channels 2
Control 0-10V
Output Power Range 240 W
Input Voltage 220-240 V
Output Voltage 24 V
Current load/ ch 5A
Curent load max 10A
Dimming Range 0-100% down to 0.01%
Operating
IP Rating IP20
Certificates CCC , BIS , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , ERP , RoHS
Warranty 5 Years
  • LM-240-24-G2A2 User Manual.pdf
